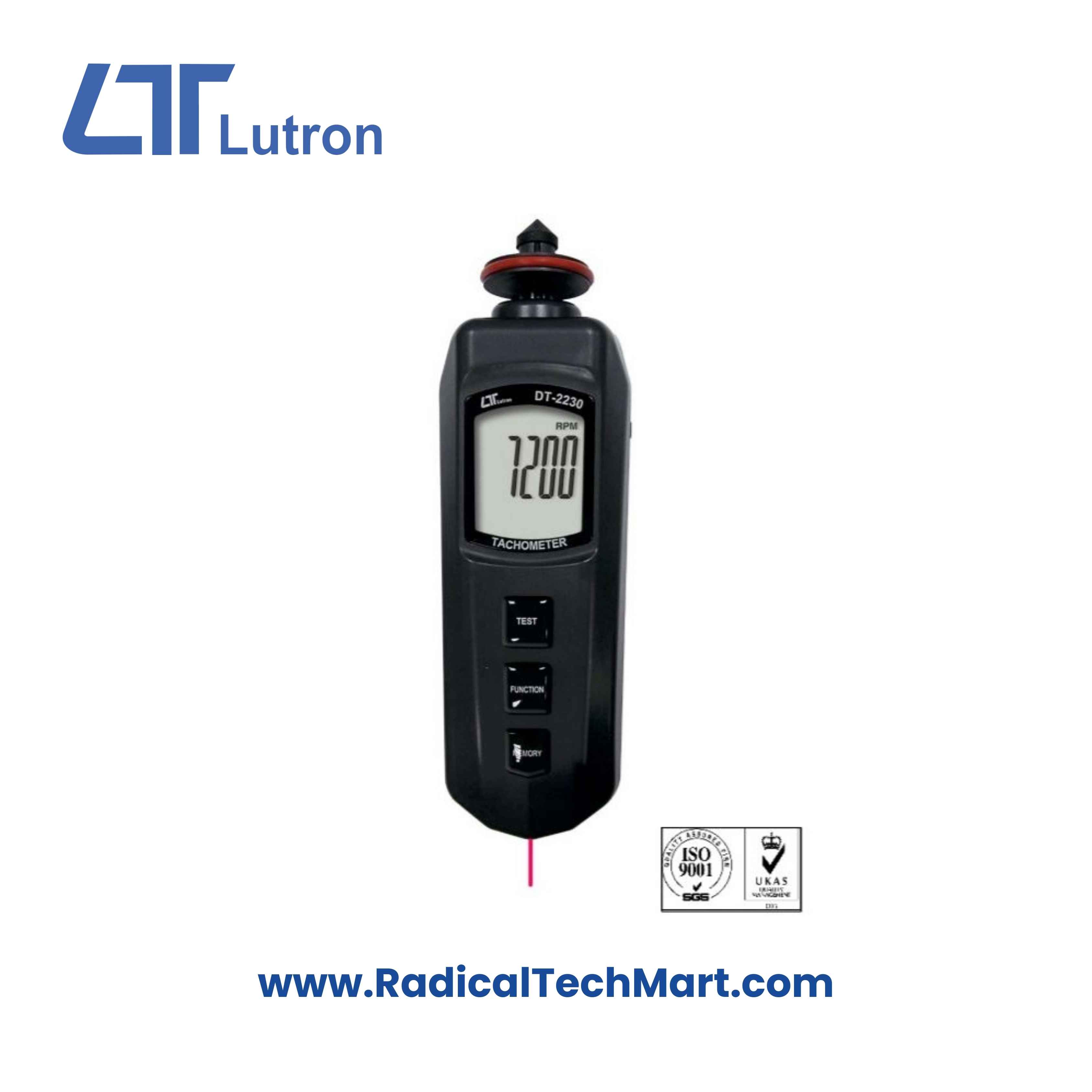

Lutron DT-2230 Pocket Contact Tachometer
Customize
Share :
Product Summary:
The Lutron DT-2230 Pocket Contact Tachometer is a versatile 2-in-1 device combining a laser-based photo tachometer and a traditional contact tachometer for safe, accurate RPM and surface speed measurements across various industrial environments.
Key Features:
2-in-1 Contact and Photo Tachometer.
Photo Tachometer Range: 5 to 99,999 RPM.
Contact Tachometer Range: 0.5 to 19,999 RPM.
Surface Speed Measurement: 0.05 to 1,999.9 m/min.
High Accuracy: ± (0.1% + 1 digit).
Memory Recall for Last, Max, and Min values.
Long Measurement Distance (up to 1.5 meters).
RS232 PC Serial Interface for Data Output.
Low Power Consumption.
Clear LCD Display.
Application:
RPM measurement of pumps and compressors.
Maintenance checks for motors and fans.
Industrial automation inspections.
Vehicle and hydraulic system diagnostics.
Safety-critical remote RPM measurement.
Product Benefits:
Enables safe distance RPM measurement with laser technology.
Compact, lightweight design for portable use.
High precision suitable for industrial environments.
Supports both contact and non-contact measurements.
Easy data logging with PC connectivity.
FAQs:
Q1. What is the measurement range of the Lutron DT-2230 Tachometer?
A1. It measures 5 to 99,999 RPM in photo mode and 0.5 to 19,999 RPM in contact mode.
Q2. Does this tachometer have data memory and recall functions?
A2. Yes, it memorizes and recalls the last, maximum, and minimum measured values.
Q3. What industries typically use the DT-2230 Tachometer?
A3. It’s commonly used in automotive, industrial equipment, pump maintenance, compressor inspections, and fan performance testing.
