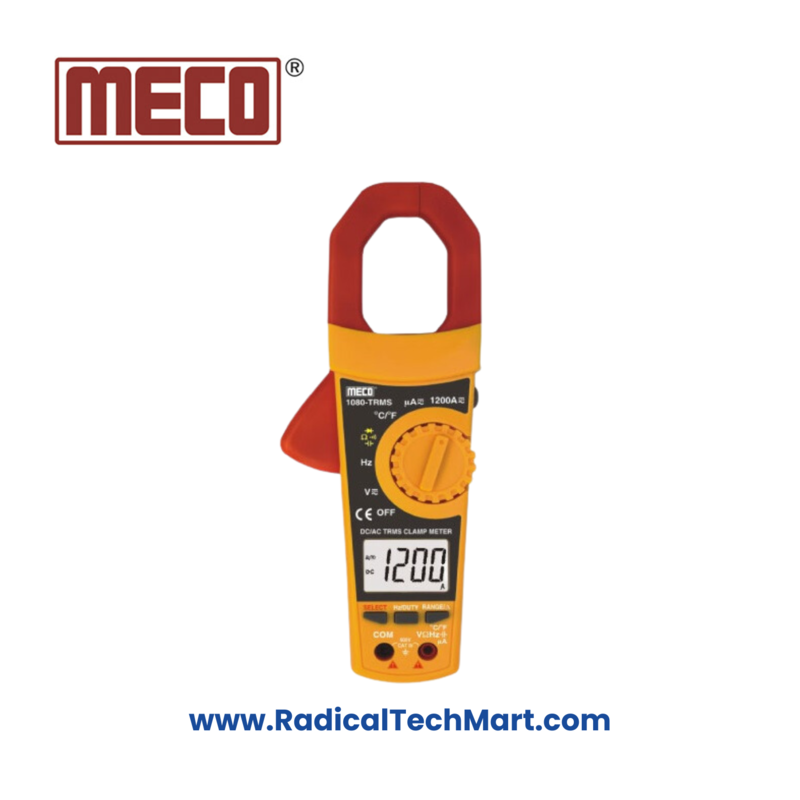

MECO 1080 Digital AC/DC Clamp Meter True RMS

Key Features:

• Display: 3⅚ Digits LCD Display
• Display Counts: 6000
• Jaw Opening Size: 30 mm
• Included Accessories:
  • Pair of Test Leads
  • 9V Battery
  • K Type Thermocouple
  • Instruction Manual
  • Carrying Case

Electrical Specifications:

• Max. DC Current Range: Above 1000 A
• Max. DC Voltage Range: 601-1000 V
• Max. AC Current Range: Above 1000 A
• Max. AC Voltage Range: 601-750 V
• Resistance Range: 0-60 MΩ
• Capacitance Range: 9.99 nF - 9.99 mF
• Frequency Range: 99.99 Hz - 20 MHz
• Temperature Range: -20°C to 1000°C

Accuracy Details:

• DC Current Range (600 µA - 1200 A): ±(2.0 % + 30 Digits)
• DC Voltage Range (600 mV - 1000 V): ±(0.5 % + 3 Digits)
• AC Current Range (600 µA - 1200 A): ±(2.0 % + 30 Digits)
• AC Voltage Range (600 mV - 750 V): ±(0.8 % + 5 Digits)
• Resistance Accuracy: ±(1.0 % + 25 Digits)
• Capacitance Accuracy: ±(3.5 % + 60 Digits)
• Frequency Accuracy: ±(0.01 % + 3 Digits)
• Temperature Accuracy: ±(1.5 % + 15 Digits)

Power and Dimensions:

• Power Source: One 9V Battery
• Weight: 320 g
• Dimensions: 238 x 90 x 48 mm

Warranty: As per Meco Warranty Policy

This meter is designed for accurate measurements of AC/DC current, voltage, resistance, capacitance, frequency, and temperature, making it ideal
