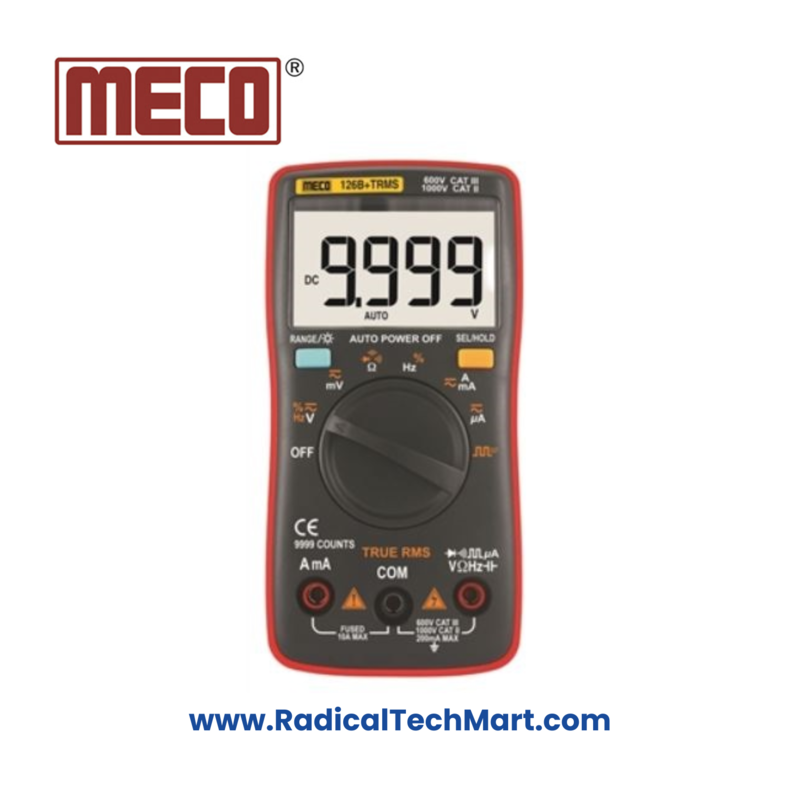

MECO 126B+ TRMS Digital Multimeter

Features:

• TRMS (True RMS) Measurement

• Auto / Manual Ranging

• Display: 9999 counts, LCD with backlight

• Auto Power Off

• Measurement Functions:

  • DC Voltage: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V (Accuracy: ±(0.5% rdg + 3 dgt))
  • AC Voltage: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 750.0V (Accuracy: ±(1.0% rdg + 3 dgt))
  • DC Current: 99.99A, 999.9mA, 9.999A (Accuracy: ±(0.8% rdg + 3 dgt) on 99.99A and 999.9mA, ±(1.0% rdg + 3 dgt) on 9.999A)
  • AC Current: 99.99A, 999.9mA, 9.999A (Accuracy: ±(1.0% rdg + 3 dgt) on 99.99A and 999.9mA, ±(1.2% rdg + 3 dgt) on 9.999A)
  • Resistance: 99.99Ω, 999.9Ω, 9.999KΩ, 99.99KΩ, 999.9KΩ, 9.999MΩ, 99.99MΩ (Accuracy: ±(1.0% rdg + 3 dgt) on 99.99Ω, ±(0.5% rdg + 3 dgt) on 999.9Ω to 999.9KΩ, ±(1.5% rdg + 3 dgt) on 9.999MΩ)
  • Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF (Accuracy: ±(5.0% rdg + 20 dgt) on 9.999nF, ±(2.0% rdg + 5 dgt) on 99.99nF to 999.9µF, ±(5.0% rdg + 5 dgt) on 9.999mF)
  • Frequency: 99.99Hz ~ 9.999MHz (Accuracy: ±(0.1% rdg + 2 dgt))
  • Duty Cycle: 1% ~ 99% (Accuracy: ±(0.1% rdg + 2 dgt))
  • Square Wave Output: 50Hz, 100Hz, 200Hz, 300Hz, 400Hz, 500Hz, 600Hz, 700Hz, 800Hz, 900Hz, 1000Hz, 2000Hz, 3000Hz, 4000Hz, 5000Hz
  • Diode Test, Audible Continuity, Data Hold

• Measuring Categories:

  • CAT II 1000V
  • CAT III 600V

• Power:

  • Powered by two 1.5V 'AAA' batteries
  • Battery Life: 200 hours (typical)

• Dimensions & Weight:

  • Dimensions: 130 x 65 x 32mm (approx.)
  • Weight: 130g (including battery, approx.)

Accessories Included:

• Test leads (pair)
• Drawstring pouch
• Battery (installed)
• Instruction manual
• K Type Thermocouple (up to 260°C)

Warranty:

• 1 Year (as per MECO warranty policy)
