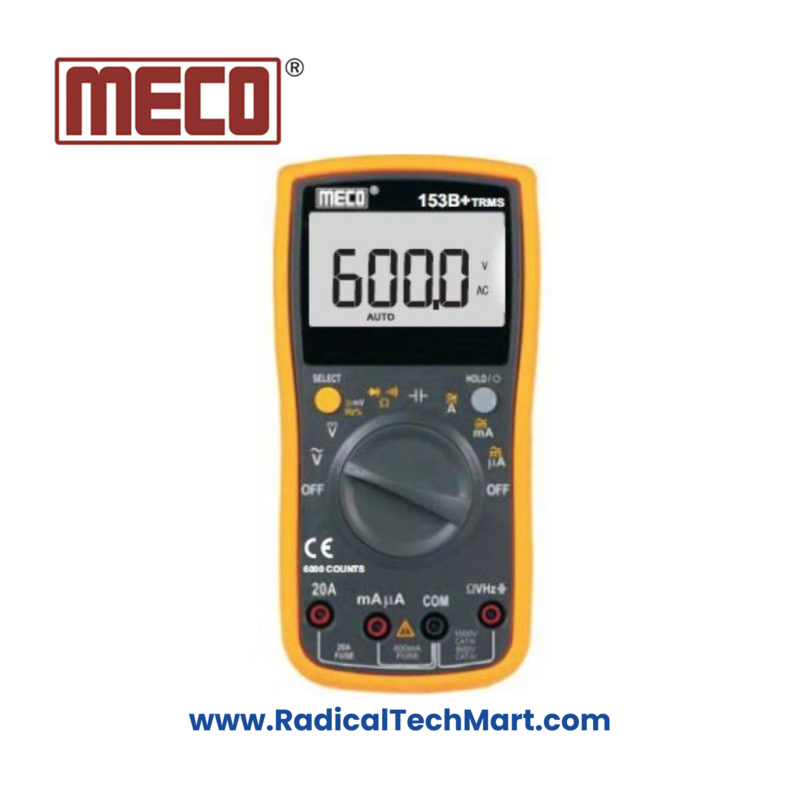

MECO 153B+ TRMS Autoranging Digital Multimeter

Features:

• TRMS (True RMS): Accurate measurement of both AC and DC signals.
• Auto Ranging: Automatically selects the appropriate range for the measurement.
• LCD Display: 6000 counts with backlight for easy reading in low-light conditions.
• APO (Auto Power Off): Saves battery life by automatically turning off after a period of inactivity.
• Capacitance Measurement: Measures capacitance values.
• Frequency Measurement: Can measure frequency of AC signals.
• Duty Cycle Measurement: Measures the duty cycle of pulse signals.
• Holster Included: For safe and easy portability.

Standard Accessories:

• Test Leads (Pair)
• Holster
• Battery (Pre-installed)
• Instruction Manual

Specifications:

• Display: 3 5/6 digits, 6000 counts
• AC Voltage Range: 600mV, 6V, 60V, 600V, 750V
  • Accuracy: ±(1.0% rdg + 5 dgt) (600mV), ±(1.2% rdg + 5 dgt) (600V), ±(1.5% rdg + 5 dgt) (750V)
• DC Voltage Range: 600mV, 6V, 60V, 600V, 1000V
  • Accuracy: ±(1.0% rdg + 4 dgt) (600mV), ±(0.5% rdg + 2 dgt) (6V, 60V, 600V), ±(7.0% rdg + 3 dgt) (1000V)
• AC Current Range: 600µA, 6000µA, 60mA, 600mA, 6A, 20A
  • Accuracy: ±(1.5% rdg + 5 dgt) (600µA, 6000µA), ±(2.0% rdg + 5 dgt) (60mA, 600mA), ±(2.5% rdg + 5 dgt) (6A, 20A)
• DC Current Range: 600µA, 6000µA, 60mA, 600mA, 6A, 20A
  • Accuracy: ±(1.0% rdg + 2 dgt) (600µA, 6000µA), ±(1.2% rdg + 3 dgt) (60mA, 600mA), ±(1.5% rdg + 5 dgt) (6A, 20A)
• Resistance Range: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
  • Accuracy: ±(1.2% rdg + 2 dgt) (600Ω, 6MΩ), ±(1.0% rdg + 2 dgt) (6kΩ, 60kΩ, 600kΩ), ±(1.5% rdg + 2 dgt) (60MΩ)
• Capacitance Range: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF
  • Accuracy: ±(2.0% rdg + 4 dgt) (up to 999.9µF), ±(3.0% rdg + 4 dgt) (9.999mF)
• Frequency Range: 99.99Hz – 20.00MHz
  • Accuracy: ±(0.05% rdg + 4 dgt) (up to 999.9kHz), ±(3.0% rdg + 4 dgt) (up to 9.999mF)

Physical Specifications:

• Dimensions: 180 x 90 x 52 mm
• Weight: 370g

Warranty:

• Standard 1-Year Warranty as per MECO's Warranty Policy.
