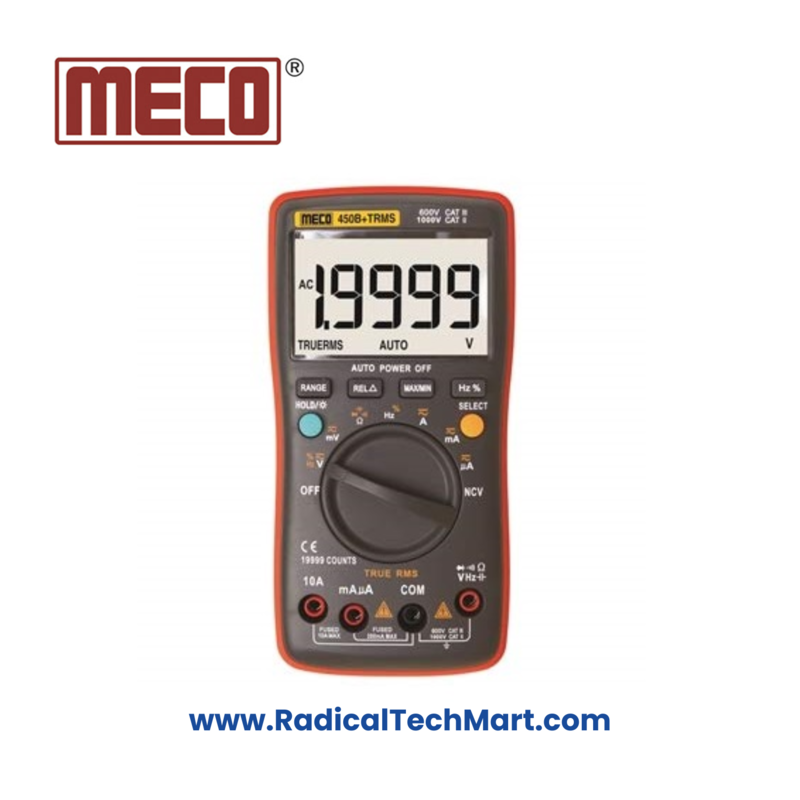

MECO 450B+ TRMS Multimeter

Key Features:

• True RMS (TRMS) Measurement
• Auto / Manual Ranging for ease of use
• 19999 Count LCD Display with backlight for clear visibility
• Auto Power Off function to save battery life
• Capacitance and Frequency Measurement
• Duty Cycle Measurement
• Data Hold feature for convenient readings
• MIN / MAX recording for capturing peak values
• Δ ZERO / REL functionality for relative measurements
• Diode Test capability
• Audible Continuity buzzer for quick checks
• Non-Contact Voltage (NCV) Detection

Measurement Ranges and Accuracy:

• AC Voltage: 200mV to 750V, Accuracy: ±(0.08%+20)
• DC Voltage: 200mV to 1000V, Accuracy: ±(0.05%+3)
• AC Current: 20µA to 10A, Accuracy: ±(1%+20)
• DC Current: 20µA to 10A, Accuracy: ±(0.5%+10)
• Resistance: 200 Ω to 20MΩ, Accuracy: ±(1%+10)
• Capacitance: 20nF to 20µF, Accuracy: ±(2%+30)
• Frequency: 20Hz to 1kHz, Accuracy: ±(1%+20)

Additional Features:

• Continuity Buzzer for quick checks
• hFE (NPN or PNP) transistor testing
• Power Input: One 9V battery (Eveready type 216 or equivalent)
• Dimensions: 190 x 88 x 34 mm
• Weight: 270 g

Warranty: 1 Year
