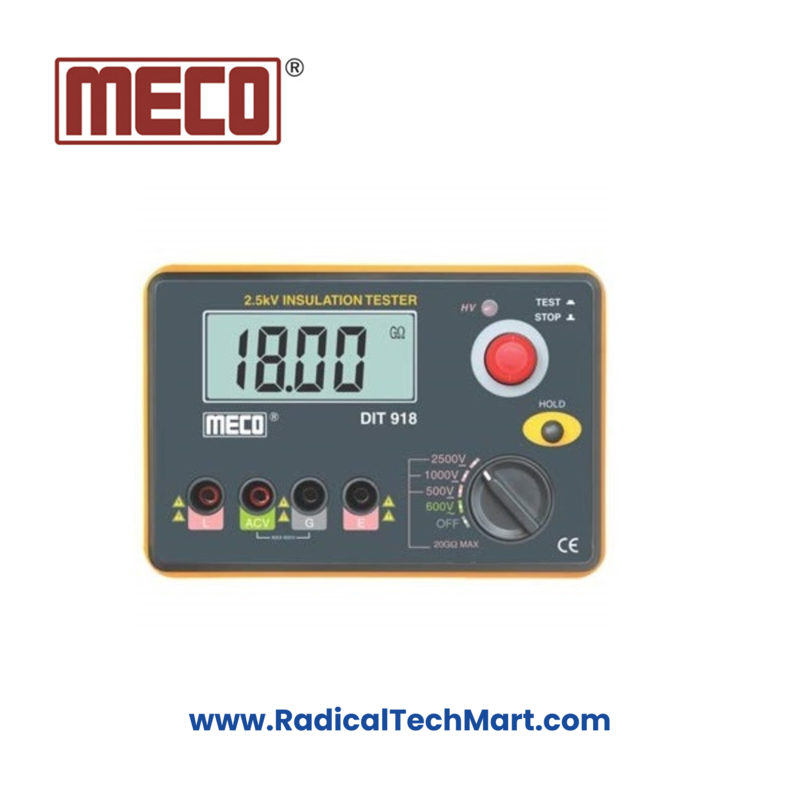

MECO DIT 918 Digital Insulation Tester

MECO DIT 918 Digital Insulation Tester
Model: DIT 918
Resistance Range: 2.5kV - 20 G

Key Features:

• High Accuracy Insulation Measurement: Provides precise insulation resistance measurements for effective testing.
• AC Voltage Measurement: Capable of measuring AC voltage up to 600VAC.
• Overload Protection: Safeguarded against overloads up to AC 1200V for 10 seconds.
• High-Voltage Withstand: Can withstand AC voltage up to 8320V for 5 seconds.
• 3½ Digit LCD Display: Large 1999-count LCD for clear readings.
• Range Selection & Push Button Operation: Easy-to-use interface for single-person operation.
• Function Indicators: Icons on the display for quick identification of selected functions.
• Data Hold Function: Retain readings for easy reference.
• Red LED Indicator for High Voltage: Visual indicator to warn users of high voltage during tests.
• Battery Operated: Convenient and portable for field testing.
• Standards Compliance:
  • IS 10656-1983: Meets Indian standard for insulation testing.
  • IEC / EN 61010-1 & 61010-31: Adheres to safety standards.
  • IEC 61326 Class B: Compliant with EMC standards for electromagnetic compatibility.
• Overvoltage Category: Rated for CAT III, 600V environments for safety.

Warranty: As per MECO’s Warranty Policy.
