A. Product Overview

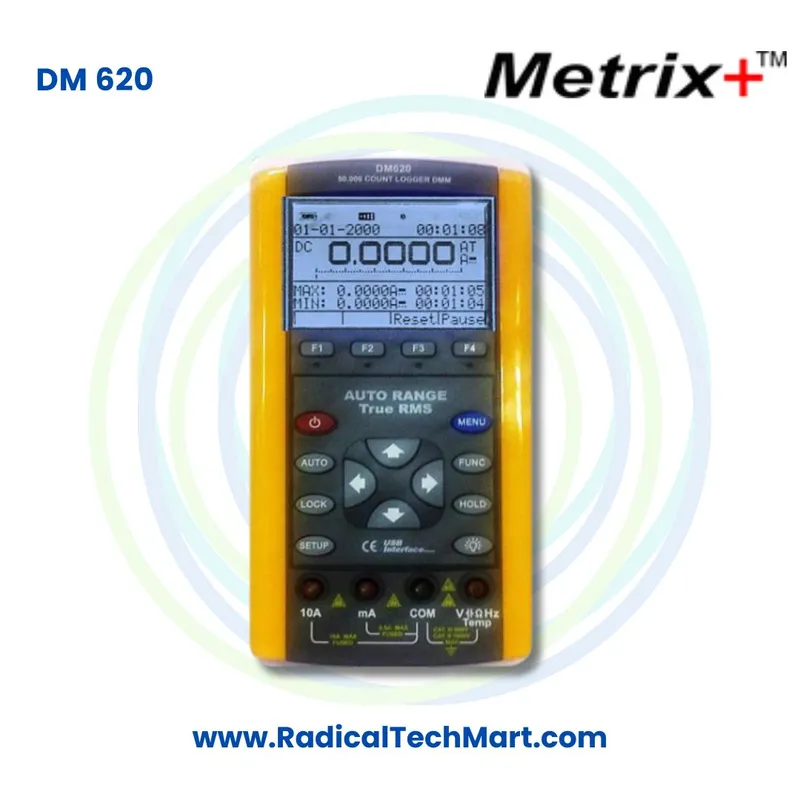

The Metrix Plus DM 620 is a feature rich digital multimeter designed for users who require more than basic voltage, current and resistance measurements.

It combines conventional digital multimeter functions with True RMS measurement, data logging and data storage, making it suitable for troubleshooting as well as monitoring electrical parameters over time.

Main Measurement Functions

• AC voltage
• DC voltage
• AC current
• DC current
• Resistance
• Capacitance
• Temperature
• Frequency
• Duty cycle
• Diode testing
• Continuity testing

Key Features

• 50000 count display
• Programmable data logger
• True RMS measurement
• Multi display functionality
• Analog bar graph
• Data storage
• Automatic calibration
• Full automatic ranging
• Suitable for electrical troubleshooting
• Suitable for maintenance and repair applications
• Portable digital multimeter design

The combination of high display count and multiple measurement functions makes the DM 620 particularly useful for professional electrical and electronic troubleshooting.

B. Working Principle

The Metrix Plus DM 620 Digital Multimeter works by converting the electrical quantity being measured into a proportional electrical signal that can be processed electronically.

An internal Analog to Digital Converter, commonly called an ADC, converts this signal into a digital value that is displayed on the meter.

Different internal circuits are used depending on the measurement selected.

Voltage Measurement

For voltage measurement, the multimeter uses internal voltage divider circuitry to reduce the input voltage to a level that can be accurately processed by the measuring electronics.

Current Measurement

When measuring current, the meter measures the voltage developed across a calibrated internal shunt resistance and calculates the corresponding current.

Resistance Measurement

For resistance testing, the multimeter applies a small internal test signal through the component and determines its resistance from the resulting electrical response.

Capacitance Measurement

The meter evaluates the charging and electrical characteristics of a capacitor to calculate its capacitance value.

Frequency Measurement

The multimeter detects repetitive electrical signals and calculates how many cycles occur per second.

Temperature Measurement

When used with a suitable temperature sensor, the meter converts the sensor signal into a temperature reading.

True RMS Measurement

The True RMS function allows the DM 620 to calculate the effective value of an AC waveform. This is particularly useful when working with electrical signals that may not have a perfect sine wave shape.

C. Why Is the Metrix Plus DM 620 Used?

1. Electrical Troubleshooting

The DM 620 can be used to diagnose electrical faults by measuring voltage, current, resistance and other electrical parameters.

2. Industrial Maintenance

Maintenance technicians can use the meter while checking electrical equipment, control panels, machines and industrial circuits.

3. AC and DC Voltage Testing

The meter is suitable for measuring both alternating and direct voltage during electrical installation and troubleshooting.

4. AC and DC Current Measurement

Electrical current can be measured for checking circuit operation, equipment performance and electrical faults.

5. Resistance Testing

Resistance measurement is useful for checking resistors, wiring, connections and other electrical components.

6. Capacitor Testing

The capacitance function allows users to measure capacitor values during electronic troubleshooting and maintenance.

7. Frequency Measurement

Frequency testing is useful when working with electrical and electronic circuits that generate repetitive signals.

8. Temperature Measurement

Temperature measurement adds another useful diagnostic parameter when troubleshooting electrical or electronic systems.

9. Diode Testing

The diode function helps technicians check semiconductor diodes and similar components.

10. Continuity Testing

Continuity testing helps identify broken wires, open circuits and poor electrical connections.

11. Data Logging

One of the major advantages of the DM 620 is its programmable data logging capability.

Instead of relying only on an instantaneous reading, technicians can use data logging to monitor electrical parameters and investigate conditions that may change over time.

12. True RMS Electrical Testing

True RMS measurement makes the meter useful when testing AC electrical systems where waveforms may be distorted or non sinusoidal.

D. Suitable Buyers

The Metrix Plus DM 620 True RMS Digital Multimeter is suitable for:

• Electrical engineers
• Electronics engineers
• Electricians
• Industrial maintenance technicians
• Electrical contractors
• Control panel technicians
• Automation engineers
• Machine maintenance engineers
• Electronics repair technicians
• PCB repair technicians
• Facility maintenance teams
• Manufacturing plants
• Electrical service companies
• Research laboratories
• Testing laboratories
• Engineering colleges
• Research and development departments
• Electrical commissioning engineers
• Industrial service companies
• Preventive maintenance teams
• Electrical troubleshooting professionals

It is particularly suitable for users who need a professional digital multimeter with True RMS measurement and data logging capability.

Frequently Asked Questions

1. What is the Metrix Plus DM 620?

The Metrix Plus DM 620 is a 50000 count True RMS digital multimeter with programmable data logging and data storage for professional electrical testing and troubleshooting.

2. Is the DM 620 a True RMS multimeter?

Yes. The Metrix Plus DM 620 supports True RMS measurement.

3. What does 50000 count mean in a digital multimeter?

A 50000 count multimeter can display measurement values with higher numerical resolution than lower count meters. This can provide more detailed readings within the applicable measurement range.

4. Does the DM 620 have data logging?

Yes. The DM 620 is specifically designed as a programmable data logger digital multimeter.

5. Does the DM 620 have data storage?

Yes. Data storage is one of the specified features of the meter.

6. What parameters can the DM 620 measure?

The DM 620 supports measurement of:

• AC voltage
• DC voltage
• AC current
• DC current
• Resistance
• Capacitance
• Temperature
• Frequency
• Duty cycle
• Diode
• Continuity

7. Can the DM 620 measure AC voltage?

Yes. AC voltage measurement is supported.

8. Can it measure DC voltage?

Yes. The DM 620 supports DC voltage measurement.

9. Can the DM 620 measure AC current?

Yes. AC current measurement is supported.

10. Can it measure DC current?

Yes. The meter supports DC current measurement.

11. Does the DM 620 measure resistance?

Yes. Resistance measurement is included among its standard functions.

12. Does the DM 620 measure capacitance?

Yes. The meter includes a capacitance measurement function.

13. Can the DM 620 measure temperature?

Yes. Temperature measurement is one of the listed functions of the DM 620.

14. Can the DM 620 measure frequency?

Yes. Frequency measurement is supported.

15. Does it measure duty cycle?

Yes. The DM 620 includes duty cycle measurement.
