A. Product Overview

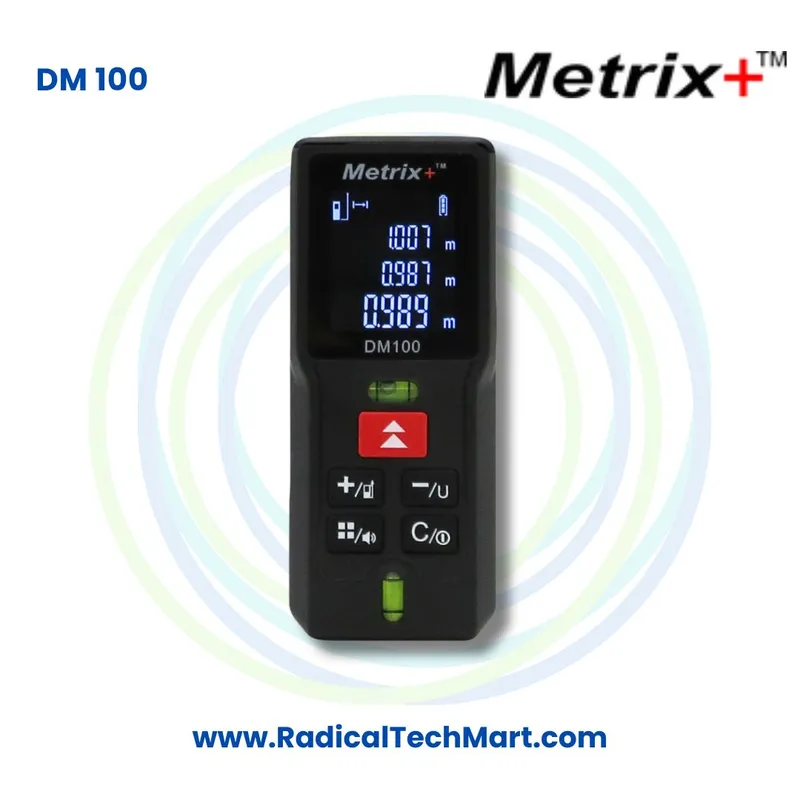

The Metrix Plus DM 100 Laser Distance Meter 100m is designed for fast and accurate distance measurement without the inconvenience of using a conventional measuring tape over long distances.

It has a measuring range from 0.05 to 100 metres and can perform several measurement functions from one compact handheld instrument.

The DM 100 can measure:

• Distance
• Area
• Volume
• Pythagoras measurements
• Single measurements
• Continuous measurements
• Minimum and maximum measurements

The instrument also supports different units for various applications:

Distance: metres, feet and inches
Area: square metres and square feet
Volume: cubic metres and cubic feet

A historical memory function stores up to 20 groups of measurement data, making it easier to review previous readings while working on site.

The built in bi axis spirit bubble helps the user check the level of the instrument during measurement.

Key Features

• Measurement range from 0.05 to 100 metres
• Accuracy of ±2.0 mm
• Distance measurement
• Area calculation
• Volume calculation
• Pythagoras measurement
• Single measurement mode
• Continuous measurement mode
• Minimum and maximum measurement
• 20 group historical data review
• Switchable measuring reference
• Battery power indication
• Silence function
• Bi axis spirit bubble
• Automatic laser switch off
• Automatic instrument switch off
• Pocket size construction
• Lightweight handheld design

B. Working Principle

The Metrix Plus DM 100 Digital Laser Distance Meter measures distance using a laser beam directed toward the target surface.

When the measurement button is pressed, the instrument sends a laser signal toward the selected target.

The laser reaches the target surface and reflects back toward the instrument. The electronics inside the distance meter analyse the returning laser signal and calculate the distance between the instrument and the target.

The calculated distance is then shown on the digital display.

The manufacturer describes digital laser distance meters as generally using laser signal timing or phase comparison techniques for determining distance. The specific internal method used by the DM 100 is not separately identified in the supplied specifications.

C. Why Is the Metrix Plus DM 100 Used?

The Metrix Plus DM 100 is used when quick, repeatable and convenient measurements are required over distances of up to 100 metres.

Construction Site Measurement

Construction engineers and contractors can use the meter to measure rooms, walls, floors, structural spaces and distances between different points on site.

Interior Measurement

Interior designers can quickly determine room dimensions, wall dimensions, floor areas and other measurements required for planning layouts.

Real Estate Measurement

The DM 100 can be used to measure property dimensions, room sizes and floor areas during surveys and property inspections.

Area Calculation

Instead of manually recording length and width and then calculating the result separately, the meter can calculate area automatically.

Volume Calculation

The volume function allows users to determine the volume of rooms and enclosed spaces quickly.

Project Estimation

Measurements of distance, area and volume can help prepare estimates for construction materials, flooring, painting, interiors and similar work.

Indirect Height Measurement

Pythagoras functions are useful when directly measuring the required height or distance is inconvenient.

Long Distance Measurement

With a maximum specified range of 100 metres, the DM 100 can be used for measurements that would be inconvenient with a conventional short measuring tape.

Single Person Measurement

Laser measurement allows many measurements to be performed by one person without requiring another person to hold the opposite end of a measuring tape.

D. Suitable Buyers

Civil Engineers

Useful for checking distances and dimensions during construction and site inspection.

Construction Contractors

Suitable for measuring rooms, walls, floors and other construction areas during planning and execution.

Architects

Can be used for taking site dimensions and checking existing structures during project planning.

Interior Designers

Suitable for measuring rooms, ceilings, walls, furniture locations and interior spaces.

Real Estate Professionals

Useful for quickly measuring rooms and property spaces during site visits.

Project Engineers

Can be used for measurement and estimation activities during industrial and commercial projects.

Site Supervisors

Suitable for routine measurement work on construction and installation sites.

Flooring Contractors

Area calculations can help determine floor dimensions for tiles, flooring and related materials.

Painting Contractors

Wall and room measurements can assist in estimating surface areas for painting projects.

HVAC Professionals

Room dimensions and volume measurements can support site surveys and equipment planning.

Furniture and Modular Interior Companies

Useful for measuring available spaces before planning cabinets, modular furniture and other installations.

Facility Management Teams

Can be used for building surveys, maintenance planning and space measurements.

Technical Specifications

Standard Accessories

The Metrix Plus DM 100 is supplied with:

• Laser distance meter
• Carrying case
• Batteries
• Technical manual

Frequently Asked Questions

1. What is the Metrix Plus DM 100?

The Metrix Plus DM 100 is a digital laser distance meter designed to measure distance up to 100 metres. It can also calculate area, volume and indirect distances using Pythagoras measurement.

2. What is the measuring range of the DM 100?

The specified measuring range is 0.05 to 100 metres.

3. What is the accuracy of the Metrix Plus DM 100?

The specified accuracy is ±2.0 mm under standard measuring conditions.

4. Can the DM 100 measure area?

Yes. The meter can measure two dimensions and automatically calculate the resulting area.

5. Can the DM 100 calculate room volume?

Yes. It supports volume measurement by using length, width and height measurements.

6. Does the DM 100 support Pythagoras measurement?

Yes. Pythagoras measurement is available for indirect distance calculations when direct measurement is difficult.

7. Can the Metrix Plus DM 100 measure in feet?

Yes. Distance can be displayed in metres, feet and inches.

8. Can it display area in square feet?

Yes. Area measurements can be displayed in square metres or square feet.

9. Can it display volume in cubic feet?

Yes. Volume can be displayed in cubic metres or cubic feet.

10. Does the DM 100 have continuous measurement?

Yes. The instrument supports continuous measurement with minimum and maximum measurement functions.

11. Does the DM 100 save previous readings?

Yes. It can review up to 20 groups of historical measurement data.

12. How fast does the DM 100 take a measurement?

The specified single measurement time is approximately 0.25 seconds.

13. Is the Metrix Plus DM 100 suitable for construction work?

Yes. It is designed for applications such as construction measurement, fit out work, site surveys and project estimation.

14. Can interior designers use the DM 100?

Yes. It is suitable for measuring rooms, walls, floors, ceilings and other interior spaces.

15. Can the DM 100 be used for real estate measurement?

Yes. Real estate professionals can use it for quick room and property measurements during site visits.
