A. Product Overview

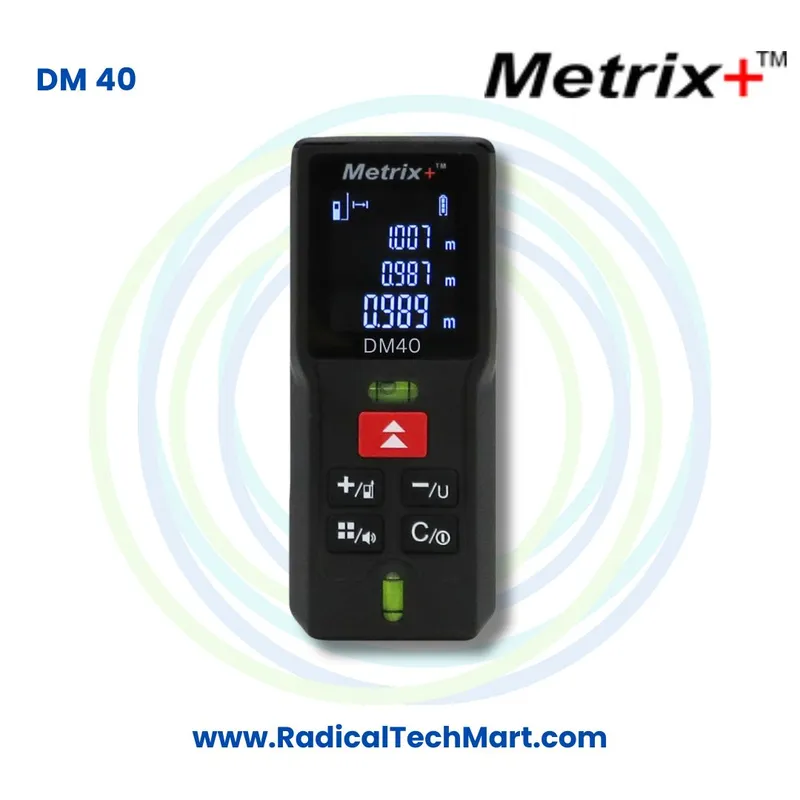

The Metrix Plus DM 40 Laser Distance Meter 40m is a portable digital measuring tool designed to simplify distance, area and volume measurement.

Instead of manually stretching a measuring tape across a room or work area, the DM 40 allows the user to point the laser toward a target and obtain a measurement electronically.

The instrument provides a measuring range of 0.05 to 40 metres with a specified accuracy of ±2.0 mm.

The DM 40 supports several useful measurement functions, including:

• Single distance measurement
• Continuous distance measurement
• Minimum measurement
• Maximum measurement
• Area calculation
• Volume calculation
• Pythagoras measurement
• Historical measurement review

Measurements can be displayed in different units depending on the application.

Distance: metres, feet and inches
Area: square metres and square feet
Volume: cubic metres and cubic feet

The instrument can store up to 20 groups of previous measurement data, helping users review measurements without immediately writing every value down.

A built in bi-axis spirit bubble also helps the operator check whether the instrument is positioned level.

B. Working Principle

The Metrix Plus DM 40 Digital Laser Distance Meter measures distance by transmitting a laser beam toward a target surface.

The user points the laser at the required target and activates the measurement.

The laser beam travels from the instrument to the target surface and is reflected back toward the meter.

Digital laser distance meters generally determine the distance by analysing the transmitted and reflected laser signal. Common laser distance measurement technologies include Time of Flight and Phase Shift measurement principles.

The exact internal measuring method specifically used by the DM 40 is not separately stated in the available product specifications.

Continuous Measurement

Continuous measurement allows the displayed distance to update as the meter is moved relative to the target.

This can help when positioning objects or identifying a required distance.

The DM 40 also supports minimum and maximum measurement functions.

C. Why Is the Metrix Plus DM 40 Used?

The Metrix Plus DM 40 is used when fast and convenient measurements are required without repeatedly using a conventional measuring tape.

Room Measurement

The DM 40 can quickly measure room length, width and other dimensions for construction, renovation and interior planning.

Construction Measurement

Contractors and site personnel can use the instrument for measuring walls, floors, openings and other construction dimensions.

Interior Design

Interior designers can measure rooms, walls, floors and installation spaces while preparing layouts and project estimates.

Area Calculation

The meter can automatically calculate area after taking the required length and width measurements.

This is useful for:

• Flooring
• Painting
• Tiling
• Wall covering
• Interior work
• Material estimation

Faster Site Surveys

The rapid measurement capability helps reduce the time required for repeatedly checking dimensions during site work.

D. Suitable Buyers

Civil Engineers

Useful for checking dimensions during construction, inspection and project execution.

Construction Contractors

Suitable for measuring rooms, walls, floors and other site dimensions.

Architects

Can be used during preliminary site surveys, renovation planning and dimensional checks.

Interior Designers

Suitable for measuring rooms, furniture locations, wall dimensions, ceilings and installation spaces.

Real Estate Professionals

Useful for quick property and room measurements during inspections and site visits.

Renovation Contractors

Suitable for residential, office and commercial renovation measurements.

Site Supervisors

Can be used for routine dimensional checking during construction and installation work.

Flooring Contractors

The area calculation function can help measure floors for tiles, wooden flooring, vinyl flooring and other materials.

Painting Contractors

Room and wall measurements can support paint quantity and project estimation.

Furniture and Modular Interior Companies

Useful for measuring installation spaces for cabinets, modular furniture and interior components.

HVAC Professionals

Can assist with measuring room dimensions during equipment planning and installation surveys.

Facility Management Teams

Suitable for room surveys, maintenance projects and building space measurement.

Electrical Contractors

Useful when measuring installation distances, room dimensions and cable routing requirements during site surveys.

Homeowners

The compact meter can also be used for home renovation, furniture planning, room measurement and general DIY measurement work.

Technical Specifications

Standard Accessories

The Metrix Plus DM 40 is supplied with:

• Laser distance meter
• Carrying case
• Batteries
• Technical manual

Frequently Asked Questions

1. What is the Metrix Plus DM 40?

The Metrix Plus DM 40 is a portable digital laser distance meter designed for measuring distances up to 40 metres. It also supports area, volume and Pythagoras measurement functions.

2. What is the measuring range of the DM 40?

The specified measuring range is 0.05 to 40 metres.

3. What is the accuracy of the Metrix Plus DM 40?

The specified accuracy is ±2.0 mm under standard measuring conditions.

4. Can the DM 40 measure area?

Yes. The DM 40 can calculate area after the required length and width measurements are taken.

5. Can the DM 40 calculate volume?

Yes. It can calculate volume using length, width and height measurements.

6. Does the DM 40 have Pythagoras measurement?

Yes. Pythagoras measurement is provided for indirect distance calculations.

7. Can the Metrix Plus DM 40 measure in feet?

Yes. Distance can be displayed in metres, feet and inches.

8. Can the DM 40 calculate square feet?

Yes. Area can be displayed in square metres or square feet.

9. Can the DM 40 display volume in cubic feet?

Yes. Volume measurements can be displayed in cubic metres or cubic feet.

10. Does the DM 40 support continuous measurement?

Yes. It supports both single and continuous measurement modes.

11. Does it have minimum and maximum measurement?

Yes. Minimum and maximum measurement functions are supported during continuous measurement.

12. How quickly does the DM 40 take a measurement?

The specified single measurement time is approximately 0.25 seconds.

13. Does the DM 40 store previous readings?

Yes. It provides historical data review for up to 20 groups of measurement data.

14. Is the DM 40 suitable for construction work?

Yes. It is suitable for construction, renovation, interior and general site measurement applications.

15. Can interior designers use the Metrix Plus DM 40?

Yes. Interior designers can use it for room measurement, floor area calculation, wall measurement and installation planning.
