Metrix+ DT 2234BL Non Contact Tachometer Laser RPM Meter

A. Product Overview

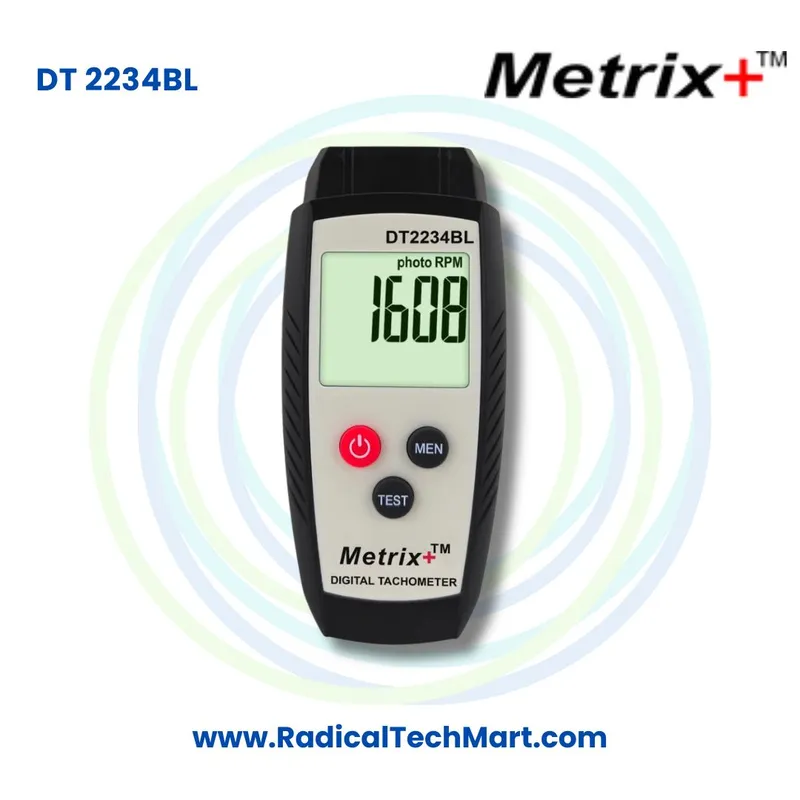

The Metrix Plus DT 2234BL is a non contact digital laser tachometer designed to measure the rotational speed of machinery in revolutions per minute.

Instead of requiring physical contact with a rotating shaft, the instrument uses an optical laser measurement system. This makes RPM testing easier when working with fast moving, difficult to access or continuously operating machinery.

The DT 2234BL provides a wide measurement range from 10 to 99,999 RPM, making it suitable for both relatively low speed and high speed rotating equipment.

Its effective measuring distance of approximately 50 to 500 mm allows technicians to measure rotational speed from a convenient distance.

Key Features

• Non contact laser RPM measurement
• Measuring range from 10 to 99,999 RPM
• Effective measuring distance from 50 to 500 mm
• Automatic range selection
• Backlit digital display
• Maximum value function
• Minimum value function
• Data hold function
• Portable and battery operated design
• Suitable for industrial maintenance and troubleshooting
• Supplied with reflective tapes for RPM measurement

B. Working Principle

The Metrix Plus DT 2234BL Non Contact Tachometer works using a laser and photoelectric sensing principle.

Before taking a measurement, a small piece of reflective tape is attached to the rotating component, such as a motor shaft, pulley or fan assembly.

The tachometer is then pointed toward the reflective mark while the machine is rotating.

As the reflective tape passes through the laser beam during each revolution, light is reflected back toward the tachometer sensor.

The instrument detects these repeated reflected pulses.

Each detected pulse represents a rotation of the marked component. The tachometer counts the number of pulses over a specific period and automatically calculates the rotational speed in revolutions per minute or RPM.

For example, if the reflective target repeatedly passes the sensor at a high frequency, the tachometer converts this pulse frequency into the corresponding RPM reading and displays it on the screen.

Because the measurement is performed optically, the technician does not need to physically touch the rotating shaft.

This non contact measuring principle is particularly useful for high speed machinery or applications where contact measurement may be inconvenient.

C. Why Is the Metrix Plus DT 2234BL Used?

Rotational speed is an important parameter in industrial machinery. Motors, fans, pulleys and other rotating equipment are normally designed to operate within a specified RPM range.

The DT 2234BL allows maintenance personnel to quickly check actual operating speed.

Motor RPM Measurement

The tachometer can be used to verify the actual running speed of electric motors during installation, servicing and routine maintenance.

Fan RPM Measurement

It can be used to check the rotational speed of fans used in ventilation, cooling and HVAC systems.

Pulley Speed Measurement

Maintenance technicians can measure pulley RPM to confirm whether mechanical drive systems are operating at the expected speed.

Shaft RPM Measurement

Rotating shafts can be measured without physically contacting the shaft, making inspection easier while machinery is operating.

Machine Maintenance

RPM measurement is useful during preventive and predictive maintenance because abnormal operating speed may indicate a mechanical or operational problem.

Machine Commissioning

After installation, servicing or replacement of a motor or rotating component, technicians can verify that the equipment is running at the required RPM.

Quality Control

Industrial processes sometimes depend on maintaining a specified rotational speed. A digital tachometer provides an independent method of checking actual machine RPM.

Troubleshooting

If a machine is running faster or slower than expected, technicians can measure its actual RPM and compare the value against the required operating condition.

D. Suitable Buyers

The Metrix Plus DT 2234BL Laser Tachometer is suitable for professionals and organizations that regularly inspect or maintain rotating equipment.

Industrial Maintenance Engineers

Suitable for checking motors, shafts, pulleys, fans and other rotating machinery during routine maintenance.

Electrical Maintenance Teams

Useful for verifying motor RPM during electrical maintenance, servicing and commissioning.

Mechanical Engineers

Suitable for machine testing, troubleshooting and verification of rotating equipment speed.

HVAC Technicians

Useful for checking fan and blower rotational speed in HVAC and ventilation systems.

Motor Repair Workshops

Motor repair and rewinding workshops can use the tachometer to verify motor speed after servicing.

Machine Manufacturers

Machine builders and OEM manufacturers can use the instrument during assembly, testing and final machine inspection.

Manufacturing Plants

Maintenance and production departments can use it for periodic RPM inspection of factory machinery.

Automotive Workshops

Suitable for applications where rotational speed of mechanical equipment needs to be checked.

Service Engineers

Field service technicians can carry the compact tachometer for machine inspection and troubleshooting at customer sites.

Educational and Technical Laboratories

Suitable for training and laboratory applications involving rotational speed measurement.

Technical Specifications

Standard Accessories

The Metrix Plus DT 2234BL is supplied with:

• Main tachometer unit
• Three reflective tapes
• Battery
• User manual
• Gift box packing
• Cloth carrying bag

Frequently Asked Questions

1. What is the Metrix Plus DT 2234BL?

The Metrix Plus DT 2234BL is a handheld non contact digital tachometer used to measure the rotational speed of motors, fans, shafts, pulleys and other rotating machinery.

2. What is the measuring range of the DT 2234BL?

The tachometer has a measuring range of 10 to 99,999 RPM.

3. Is the DT 2234BL a contact or non contact tachometer?

The DT 2234BL is a non contact tachometer. It uses laser and photoelectric sensing to measure rotational speed without physically touching the rotating component.

4. How does the DT 2234BL measure RPM?

Reflective tape is placed on the rotating object. The tachometer directs its laser toward the reflective mark and detects the reflected pulse each time the target completes a rotation. These pulses are used to calculate RPM.

5. What is a laser RPM meter?

A laser RPM meter is a non contact tachometer that uses an optical laser sensing system to measure how quickly a component is rotating.

6. Can the DT 2234BL measure motor RPM?

Yes. The tachometer is suitable for measuring the rotational speed of electric motors during testing, servicing, commissioning and maintenance.

7. Can it measure fan RPM?

Yes. The DT 2234BL can be used for measuring the RPM of suitable rotating fans and similar machinery.

8. Can it measure pulley RPM?

Yes. Reflective tape can be attached to a suitable rotating pulley surface and the tachometer can measure its rotational speed without physical contact.

9. Can the DT 2234BL measure shaft RPM?

Yes. It can measure shaft rotational speed when the reflective target can be positioned and detected by the tachometer.

10. What is the maximum RPM the DT 2234BL can measure?

The maximum specified measurement is 99,999 RPM.

11. What is the minimum RPM measurement?

The specified measuring range begins at 10 RPM.

12. What is the measuring distance of the laser tachometer?

The effective measurement distance is approximately 50 to 500 mm.

13. Does the DT 2234BL require reflective tape?

Reflective tape is used as a target for the laser and photoelectric sensing system. Three reflective tapes are supplied with the instrument.

14. What is the accuracy of the DT 2234BL?

The specified accuracy is ± 0.05 percent plus 5 digits.

15. Does the tachometer have a data hold function?

Yes. The DT 2234BL includes a data hold function for retaining the measured value on the display.
