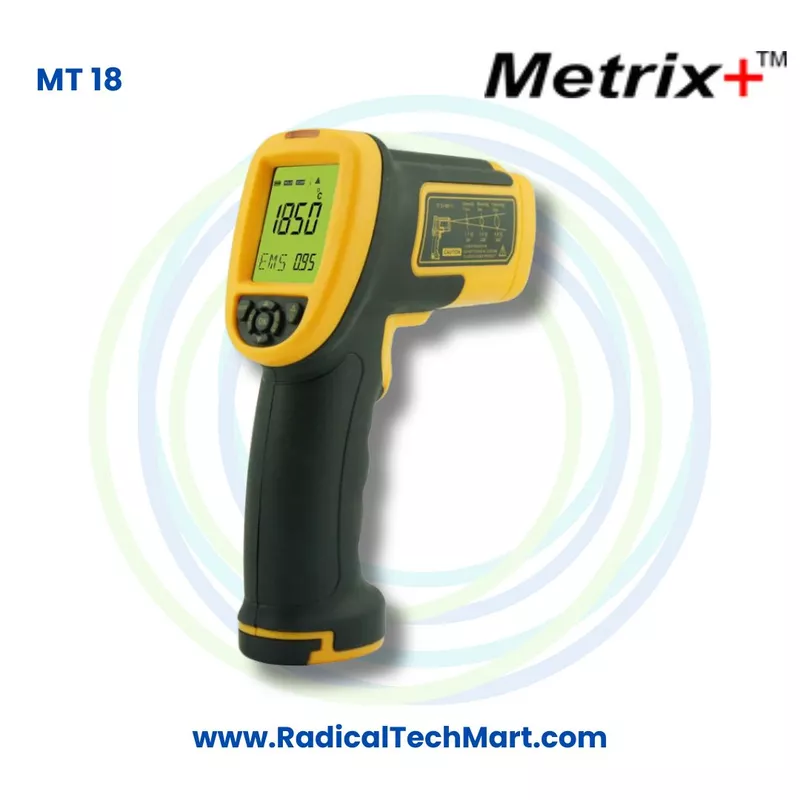

Metrix+ MT 18 Infrared Thermometer 200C to 1850C 80:1 Pyrometer

A. Product Overview

The Metrix Plus MT 18 Infrared Thermometer is an industrial high temperature pyrometer designed for fast and safe non contact surface temperature measurement.

It offers a wide temperature measuring range of 200°C to 1850°C, making it particularly useful for applications where conventional contact temperature sensors may be difficult, unsafe or impractical to use.

The MT 18 features an 80:1 distance to spot ratio, allowing operators to measure relatively small targets from longer distances. This is valuable when checking extremely hot equipment such as furnaces, kilns, heated metals and industrial machinery.

The instrument also provides adjustable emissivity from 0.10 to 1.00, allowing it to be configured for different surface materials.

Key Features

Temperature Range: 200°C to 1850°C

Distance to Spot Ratio: 80:1

Accuracy: approximately ±2 percent or ±2°C

Response Time: 500 ms

Emissivity: Adjustable from 0.10 to 1.00

Spectral Response: 900 to 1700 nm

Repeatability: approximately ±1 percent or ±1°C

Memory: Stores up to 100 readings

Display: Backlit digital display

Temperature Units: °C and °F selectable

Laser Targeting: Available

Data Hold: Available

Auto Power Off: Available

Power Supply: 9 V battery

Optional PC Interface: Software and cable for data logging

B. Working Principle

The Metrix Plus MT 18 Infrared Thermometer measures temperature by detecting infrared radiation emitted from the surface of an object.

Every object with a temperature above absolute zero naturally emits infrared energy. The amount of infrared radiation changes according to the temperature and characteristics of the surface.

When the MT 18 is pointed toward a target, its optical system collects infrared radiation from the selected surface. The radiation is focused onto an internal infrared sensing element.

The sensor converts the received infrared energy into an electrical signal. The instrument then processes this signal and calculates the corresponding surface temperature, which is displayed on the digital screen.

Because there is no requirement for physical contact between the thermometer and the object, extremely hot or difficult to reach surfaces can be measured safely.

The 80:1 distance to spot ratio is particularly important for industrial applications. It allows the instrument to measure a comparatively small target even when the operator is positioned farther away.

Adjustable emissivity also helps improve measurement accuracy when checking different materials and surface conditions.

C. Why Is the Metrix Plus MT 18 Used?

The Metrix Plus MT 18 is used when temperature needs to be measured quickly without physically touching the surface.

It is particularly useful for high temperature industrial applications where inserting a contact sensor may be unsafe, difficult or inconvenient.

Common reasons for using the MT 18 include:

High Temperature Measurement

The measuring capability up to 1850°C makes it suitable for extremely hot industrial processes.

Safer Temperature Checking

Operators can measure hot surfaces from a distance instead of approaching extremely hot machinery or processes.

Faster Measurements

The approximately 500 ms response time allows quick temperature checks during inspection and maintenance.

Measurement From Longer Distances

The 80:1 optical ratio helps technicians measure smaller targets from a comparatively greater distance.

Preventive Maintenance

Regular temperature monitoring can help identify overheating motors, bearings, electrical equipment and machinery before serious failure occurs.

Process Monitoring

Operators can quickly verify whether industrial equipment and processes are operating within the expected temperature range.

Non Contact Measurement

There is no requirement to place a probe directly on the hot surface.

D. Suitable Buyers

The Metrix Plus MT 18 High Temperature Infrared Thermometer is suitable for industries and professionals requiring reliable non contact temperature measurement.

Foundries

For checking molten metal related equipment, hot metal surfaces and high temperature processing areas.

Steel and Metal Processing Plants

For monitoring heated metals, rolling processes, forging operations and other high temperature production equipment.

Furnace Manufacturers and Users

For checking furnace surfaces, heating zones and industrial heating processes.

Kiln Operators

Suitable for monitoring high temperature kiln applications.

Heat Treatment Plants

For checking components during heating and heat treatment processes.

Industrial Maintenance Teams

Useful for preventive and predictive maintenance of machinery and production equipment.

Electrical Maintenance Engineers

Can assist in identifying abnormal heating in electrical panels and equipment.

Mechanical Maintenance Engineers

Suitable for checking motors, bearings and other rotating equipment for abnormal temperature rise.

Manufacturing Plants

Useful for production monitoring, troubleshooting and maintenance inspections.

Industrial Service Engineers

A practical portable instrument for technicians regularly inspecting high temperature machines and processes.

Frequently Asked Questions

1. What is the temperature range of the Metrix Plus MT 18?

The Metrix Plus MT 18 measures temperatures from 200°C to 1850°C, equivalent to approximately 392°F to 3362°F.

2. Is the MT 18 a contact or non contact thermometer?

It is a non contact infrared thermometer. It measures surface temperature by detecting infrared radiation emitted by the target.

3. What does an 80:1 distance to spot ratio mean?

An 80:1 distance to spot ratio means the instrument can measure a target spot approximately 1 unit in diameter from a distance of 80 units. This allows comparatively small targets to be measured from longer distances.

4. Can the Metrix Plus MT 18 be used for furnace temperature measurement?

Yes. Its measuring range up to 1850°C makes it suitable for many furnace and high temperature industrial applications, provided the target surface and operating conditions are appropriate for infrared measurement.

5. Is the MT 18 suitable for foundry applications?

Yes. It can be used for non contact surface temperature checking in foundries, metal processing facilities and other high temperature environments.

6. Does the MT 18 have adjustable emissivity?

Yes. The emissivity can be adjusted from 0.10 to 1.00, allowing the instrument to be configured for different materials and surface characteristics.

7. What is the response time of the Metrix Plus MT 18?

The response time is approximately 500 milliseconds, allowing quick temperature readings.

8. Does the MT 18 have laser targeting?

Yes. It includes a selectable laser target pointer to assist the operator in aiming the thermometer toward the desired measurement area.

9. Can readings be stored in the thermometer?

Yes. The MT 18 can store up to 100 temperature readings for later recall.

10. Can the MT 18 connect to a computer?

A PC interface with software and cable is available as an optional accessory for data logging.

11. What is the accuracy of the MT 18 infrared thermometer?

The specified accuracy is approximately ±2 percent or ±2°C, depending on the measurement conditions.

12. Can it display temperature in Celsius and Fahrenheit?

Yes. The user can select between °C and °F.

13. What type of battery does the MT 18 use?

The thermometer operates using a 9 V battery.

14. What are the main applications of the Metrix Plus MT 18?

Typical applications include furnaces, kilns, foundries, metal processing, industrial maintenance, electrical inspection, motor monitoring, machinery troubleshooting and other high temperature surface measurement applications.

15. Is the Metrix Plus MT 18 suitable for preventive maintenance?

Yes. Maintenance teams can use it to identify abnormal temperature increases in machinery, electrical equipment and industrial processes before they develop into larger problems.
