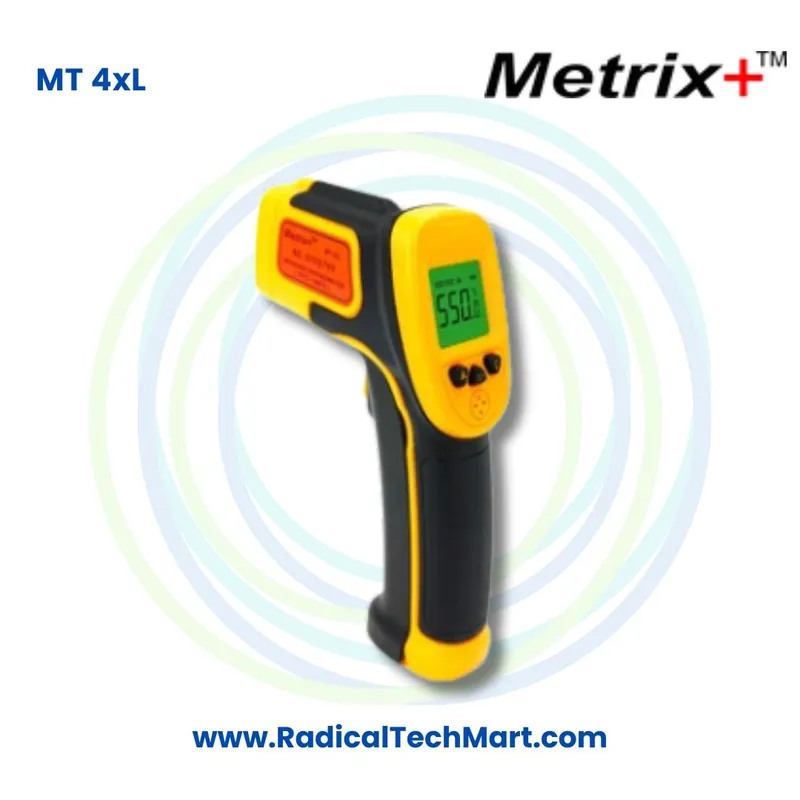

Metrix+ MT 4xL Infrared Thermometer -32C to 550C 12:1 Pyrometer

A. Product Overview

The Metrix Plus MT 4xL Infrared Thermometer is a portable digital pyrometer designed to measure surface temperature without making physical contact with the target.

It provides a temperature measurement range from minus 32°C to 550°C, making it suitable for a wide variety of industrial, commercial and maintenance applications.

The instrument features a 12:1 distance to spot ratio, which allows users to measure surface temperature from a convenient distance while maintaining a defined measurement area.

Its compact palm sized and ergonomic construction makes it suitable for technicians who require a portable infrared thermometer for routine inspection and troubleshooting.

Key Features

Model: Metrix Plus MT 4xL
Product Type: Infrared Thermometer and Digital Pyrometer
Temperature Range: minus 32°C to 550°C
Temperature Range in Fahrenheit: minus 26°F to 1022°F
Distance to Spot Ratio: 12:1
Accuracy: ±2 percent or ±2°C
Resolution: 0.1°C or 0.1°F
Response Time: 200 milliseconds
Spectral Response: 8 to 14 micrometers
Emissivity: Preset at 0.95
Repeatability: ±1 percent or ±1°C
Display: Backlit display
Temperature Units: Celsius and Fahrenheit selectable
Laser Targeting: Selectable laser pointer
Data Hold: Available
Automatic Power Off: Available
Power Supply: Two 1.5 V AAA batteries
Net Weight: Approximately 150 grams
Dimensions: 151 x 107 x 42 mm

Standard Accessories

Battery
Operational Manual
Carry Case
Gift Box

B. Working Principle

The Metrix Plus MT 4xL Infrared Thermometer works by detecting infrared energy naturally emitted from the surface of an object.

Every object emits infrared radiation depending on its temperature. As the surface temperature changes, the intensity of infrared radiation also changes.

When the MT 4xL is pointed toward a target, its focusing lens collects the infrared energy emitted by the surface.

This infrared radiation is directed toward an internal thermopile sensor. The sensor converts the detected infrared energy into an electrical signal.

The internal electronic circuit processes this signal and calculates the corresponding surface temperature. The result is then shown on the backlit digital display.

Since the instrument does not need to physically touch the surface, measurements can be taken quickly from hot, moving, difficult to access or sensitive objects.

How the 12:1 Distance to Spot Ratio Works

The Metrix Plus MT 4xL has a 12:1 distance to spot ratio.

This means that at a distance of approximately 12 units, the instrument measures an area approximately 1 unit in diameter.

For example:

At approximately 12 cm distance, the measurement spot is approximately 1 cm.

At approximately 60 cm distance, the measurement spot is approximately 5 cm.

For reliable measurement, the target should generally be larger than the measurement spot.

Preset Emissivity

The MT 4xL has a preset emissivity value of 0.95.

This setting is commonly suitable for many non reflective surfaces such as painted surfaces, plastics, rubber and many other materials typically encountered during maintenance and inspection work.

Highly polished or reflective metal surfaces may require additional consideration when performing infrared temperature measurements.

C. Why Is the Metrix Plus MT 4xL Used?

The Metrix Plus MT 4xL is used when technicians need a fast and convenient method of checking surface temperature without touching the object.

HVAC Diagnostics

HVAC technicians can quickly check surface temperatures during heating, ventilation and air conditioning system inspection and troubleshooting.

Electrical Preventive Maintenance

The thermometer can be used to identify abnormal surface temperature increases in electrical panels and equipment.

Motor Monitoring

Maintenance engineers can check motor surface temperatures during preventive maintenance inspections.

Automotive Service

Automotive technicians can perform quick temperature checks on engine components and other vehicle systems.

Industrial Maintenance

The MT 4xL can be used for routine machinery inspection and troubleshooting in factories and workshops.

Food Safety Checks

The thermometer can provide quick non contact surface temperature checks during food handling and inspection applications.

Quick Temperature Comparison

With a response time of approximately 200 milliseconds, technicians can rapidly inspect multiple components and compare temperature conditions.

Hard to Reach Surfaces

Non contact infrared measurement makes it easier to check surfaces where direct contact measurement would be inconvenient.

D. Suitable Buyers

The Metrix Plus MT 4xL Infrared Thermometer is suitable for professionals, maintenance departments and businesses requiring portable surface temperature measurement.

HVAC Technicians

Useful for heating, ventilation, refrigeration and air conditioning diagnostics.

Electrical Maintenance Engineers

Suitable for checking electrical panels and equipment during preventive maintenance.

Mechanical Maintenance Engineers

Useful for monitoring motors, machines and industrial equipment.

Automotive Workshops

Suitable for quick temperature inspection of engine and vehicle components.

Industrial Maintenance Teams

Useful for routine temperature monitoring and troubleshooting.

Manufacturing Plants

Suitable for production equipment inspection and general process monitoring.

Facility Maintenance Teams

Useful for checking heating equipment, electrical systems and mechanical installations.

Food Industry Professionals

Suitable for quick non contact surface temperature checks where applicable.

Service Engineers

A compact portable instrument for field inspection and troubleshooting.

Workshop Technicians

Useful for general temperature measurements across electrical, mechanical and automotive applications.

Frequently Asked Questions

1. What is the temperature range of the Metrix Plus MT 4xL?

The Metrix Plus MT 4xL measures temperatures from minus 32°C to 550°C, equivalent to approximately minus 26°F to 1022°F.

2. Is the Metrix Plus MT 4xL a contact thermometer?

No. It is a non contact infrared thermometer designed to measure surface temperature without physically touching the object.

3. What is the distance to spot ratio of the MT 4xL?

The instrument has a 12:1 distance to spot ratio.

4. What does 12:1 mean in an infrared thermometer?

A 12:1 ratio means that when the thermometer is approximately 12 units away from the target, the measurement spot is approximately 1 unit in diameter.

5. What is the maximum temperature of the Metrix Plus MT 4xL?

The maximum specified measurement temperature is 550°C.

6. What is the minimum temperature of the MT 4xL?

The minimum specified measurement temperature is minus 32°C.

7. What is the accuracy of the Metrix Plus MT 4xL?

The specified accuracy is ±2 percent or ±2°C.

8. What is the response time of the MT 4xL?

The response time is approximately 200 milliseconds, making it suitable for fast inspection and troubleshooting.

9. Does the MT 4xL have adjustable emissivity?

No. The Metrix Plus MT 4xL has a preset emissivity of 0.95.

10. What is the spectral response of the MT 4xL?

The specified spectral response is 8 to 14 micrometers.

11. Does the Metrix Plus MT 4xL have laser targeting?

Yes. It features a selectable laser target pointer to assist users in aiming at the required measurement area.

12. Does it have a backlit display?

Yes. The MT 4xL includes a backlit digital display for convenient reading.

13. Can it display both Celsius and Fahrenheit?

Yes. The user can select between Celsius and Fahrenheit.

14. Does the MT 4xL have a data hold function?

Yes. The instrument includes data hold functionality so the measured value can remain visible after the reading is taken.

15. Does it have automatic power off?

Yes. Automatic power off helps conserve battery life when the instrument is not being used.
