A. Product Overview

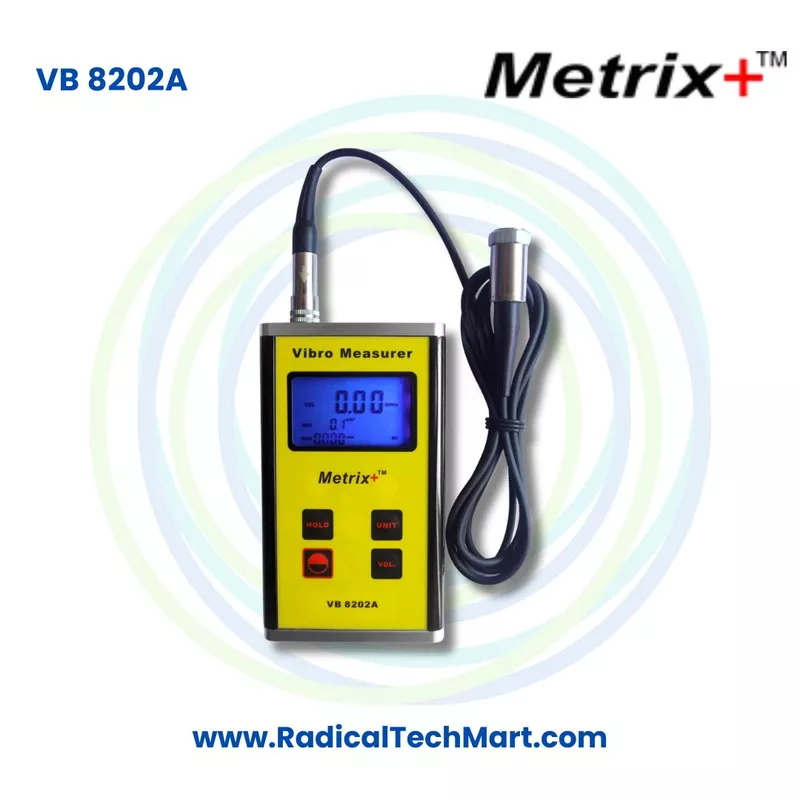

The Metrix Plus VB 8202A Vibration Meter is designed for industrial vibration measurement and machinery condition monitoring. It measures three important vibration parameters, namely velocity, acceleration and displacement, allowing maintenance engineers to assess vibration severity and detect developing mechanical problems.

One of the key advantages of the VB 8202A is that acceleration, velocity and displacement measurement values can be displayed simultaneously. This makes routine machinery inspection faster because technicians can evaluate multiple vibration parameters using a single portable instrument.

The meter uses a piezoelectric accelerometer for accurate and repeatable vibration measurement. It also provides a wide measurement frequency range, particularly in acceleration mode, making it suitable for detecting vibration generated by different types of rotating machinery.

Key Technical Specifications

Model: Metrix Plus VB 8202A

Instrument Type: Digital Vibration Meter

Display: 4 digit backlit LCD

Sensor: Piezoelectric accelerometer

Velocity Range: 0.01 to 400.0 mm/s true RMS

Velocity Imperial Range: 0.000 to 16 inch/s

Acceleration Range: 0.1 to 400.0 m/s² equivalent peak

Acceleration Imperial Range: 0.3 to 1312 ft/s²

Acceleration Range in g: 0 to 40g

Displacement Range: 0.001 to 4.000 mm equivalent peak to peak

Displacement Imperial Range: 0.04 to 160.0 mil

Acceleration Frequency Range: 10 Hz to 10 kHz

Velocity Frequency Range: 10 Hz to 1 kHz

Displacement Frequency Range: 10 Hz to 1 kHz

Accuracy: Plus or minus 5 percent of reading plus 2 digits

Hold Function: Peak Hold

Analog Output: AC output from 0 to 2.0 V peak full scale

Power Supply: Two 1.5 V AA batteries

Operating Temperature: 0 to 50 degrees Celsius

Operating Humidity: Below 95 percent RH

Dimensions: 130 x 70 x 30 mm

Weight: Approximately 305 g excluding batteries

Standard Accessories

The Metrix Plus VB 8202A is supplied with:

Powerful rare earth magnet
Measurement probe
Cone type stinger probe
Ball type stinger probe
User manual
Batteries
Carrying case

A PC interface is available as an optional accessory.

B. Working Principle

The Metrix Plus VB 8202A Digital Vibration Meter works by using a piezoelectric accelerometer to detect mechanical vibration generated by operating machinery.

When a motor, pump, fan, bearing or other rotating machine operates, its mechanical movement produces vibration. The accelerometer senses this vibration and converts the mechanical motion into a corresponding electrical signal.

The instrument then processes this signal digitally and calculates the required vibration parameters.

1. Acceleration Measurement

Acceleration represents how quickly vibration velocity changes.

The VB 8202A measures acceleration across a frequency range of 10 Hz to 10 kHz, making this mode suitable for evaluating higher frequency vibration components.

2. Velocity Measurement

Vibration velocity represents how fast the vibrating surface is moving.

The VB 8202A provides velocity measurement from 0.01 to 400.0 mm/s true RMS, with a measurement frequency range of 10 Hz to 1 kHz.

Velocity measurement is commonly used when assessing the general vibration condition of rotating machinery.

3. Displacement Measurement

Displacement represents the amount of physical movement of the vibrating machine or component.

The VB 8202A measures displacement from 0.001 to 4.000 mm equivalent peak to peak across a frequency range of 10 Hz to 1 kHz.

By measuring acceleration, velocity and displacement, technicians can obtain a broader understanding of machinery vibration instead of relying on only one measurement parameter.

C. Why Is the Metrix Plus VB 8202A Used?

Industrial machines naturally generate some vibration during operation. However, changes or increases in vibration can indicate developing mechanical problems.

The Metrix Plus VB 8202A is used to measure vibration periodically so that maintenance personnel can identify abnormal machine behaviour before a serious breakdown occurs.

Detect Machine Imbalance

An unbalanced rotating component can generate excessive vibration. Periodic vibration measurement can help maintenance personnel identify changes associated with imbalance.

Identify Misalignment

Incorrect alignment between motors, shafts, couplings and driven equipment can increase vibration. Vibration monitoring provides useful information for identifying this type of mechanical condition.

Monitor Bearings

Bearings are critical components in motors, pumps, fans and other rotating machines. Changes in vibration can indicate deterioration or abnormal bearing operating conditions.

Predictive Maintenance

Instead of waiting for a machine to fail, technicians can measure vibration periodically and compare readings over time.

A noticeable change in vibration level can indicate that the machine requires further inspection or maintenance.

Preventive Maintenance

The meter can be incorporated into scheduled maintenance programs where technicians regularly check important machinery and record vibration levels.

Reduce Unplanned Equipment Downtime

Early identification of abnormal vibration can allow maintenance work to be planned before the condition develops into a more serious equipment failure.

Machine Condition Monitoring

The VB 8202A provides maintenance departments with measurable vibration values that can be used to assess machinery condition instead of relying only on noise or visual inspection.

D. Suitable Buyers

The Metrix Plus VB 8202A Vibration Meter is suitable for professionals responsible for industrial machinery maintenance, inspection and condition monitoring.

Plant Maintenance Engineers

Maintenance engineers can use the VB 8202A for periodic vibration measurement on critical plant equipment.

Predictive Maintenance Teams

The instrument is suitable for teams carrying out condition based and predictive maintenance programs using recorded vibration measurements.

Mechanical Maintenance Technicians

Technicians can use the meter for checking vibration in motors, pumps, bearings, blowers, fans and other rotating equipment.

Manufacturing Plants

Factories operating multiple motors, pumps and rotating machines can use vibration measurement as part of their preventive maintenance procedures.

Pump Maintenance Companies

Pump service and maintenance teams can measure vibration when inspecting pump and motor assemblies.

Motor Repair and Service Companies

Motor service centres can use vibration measurements during inspection and troubleshooting of industrial motors.

HVAC Maintenance Professionals

The meter can be used for vibration checking on fans, blowers, motors and other rotating equipment used in HVAC installations.

Facility Maintenance Teams

Large commercial and industrial facilities operating pumps, fans, motors and mechanical systems can use portable vibration meters for routine equipment inspection.

OEM Machine Manufacturers

Machine manufacturers can use vibration measurement during machinery testing, commissioning and maintenance evaluation.

Reliability Engineers

Reliability teams can incorporate vibration measurements into equipment health monitoring and maintenance planning programs.

Frequently Asked Questions

1. What is the Metrix Plus VB 8202A?

The Metrix Plus VB 8202A is a portable digital vibration meter designed to measure velocity, acceleration and displacement for industrial machinery condition monitoring.

2. What does the VB 8202A measure?

It measures three major vibration parameters:

Velocity
Acceleration
Displacement

The instrument can display these measurement values simultaneously.

3. What is the vibration velocity range?

The velocity measurement range is 0.01 to 400.0 mm/s true RMS, or 0.000 to 16 inch/s.

4. Does the VB 8202A measure RMS vibration?

Yes. Its vibration velocity measurement is specified as true RMS.

5. What is the acceleration measurement range?

The acceleration measurement range is 0.1 to 400.0 m/s² equivalent peak, or up to 40g.

6. What is the displacement measurement range?

The displacement range is 0.001 to 4.000 mm equivalent peak to peak, or 0.04 to 160.0 mil.

7. What type of vibration sensor does the VB 8202A use?

It uses a piezoelectric accelerometer to convert mechanical vibration into an electrical signal for measurement.

8. What is the acceleration frequency range?

The acceleration measurement frequency range is 10 Hz to 10 kHz.

9. What is the frequency range for velocity measurement?

The velocity measurement frequency range is 10 Hz to 1 kHz.

10. What is the frequency range for displacement measurement?

The displacement measurement frequency range is 10 Hz to 1 kHz.

11. Can the VB 8202A be used for motor vibration measurement?

Yes. Motors are one of the key applications for this vibration meter. It can be used during periodic machinery condition monitoring and maintenance inspection.
