A. Product Overview

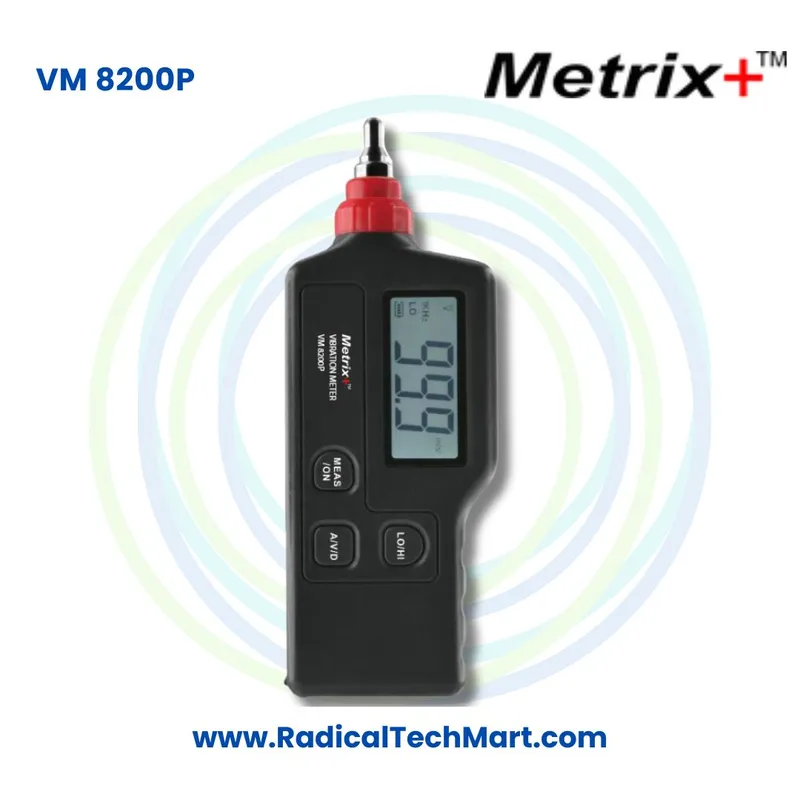

The Metrix Plus VM 8200P Vibration Meter is a compact industrial vibration measuring instrument designed for maintenance and equipment condition monitoring.

It measures three important vibration parameters:

Velocity
Acceleration
Displacement

The instrument uses a piezoelectric ceramic accelerometer of shear type to detect mechanical vibration and convert it into an electrical signal for measurement.

A major advantage of the VM 8200P is its probe based measurement arrangement. This makes it useful when vibration readings need to be taken from machinery surfaces or measurement locations that may be difficult to reach directly.

The meter is designed for straightforward operation and features a 4 digit backlit LCD for clear measurement readings.

It can be used during routine machine inspections to help identify abnormal vibration associated with conditions such as imbalance, misalignment and bearing wear.

Key Features

Acceleration Measurement
Measures acceleration generated by machine vibration.

Velocity Measurement
Measures vibration velocity for evaluating the overall vibration condition of machinery.

Displacement Measurement
Measures the physical displacement associated with mechanical vibration.

Probe Based Measurement
Useful when measuring machinery in locations that may be difficult to access.

Piezoelectric Ceramic Accelerometer
Uses a shear type piezoelectric vibration transducer.

Backlit LCD Display
Provides clear readings during industrial maintenance and inspection work.

Portable Design
Designed for convenient use by maintenance technicians in factories and industrial plants.

Predictive Maintenance Application
Suitable for monitoring changes in vibration before they develop into serious mechanical problems.

Technical Specifications

Model: Metrix Plus VM 8200P

Product Type: Digital Vibration Meter

Display: 4 digit backlit LCD

Transducer: Piezoelectric ceramic accelerometer, shear type

Velocity Range: 0.1 to 199.9 m/s

Acceleration Range: 0.1 to 199.9 m/s²

Displacement Range: 0.001 to 1.999 mm

Accuracy: Plus or minus 5 percent of reading plus 2 digits

Power Supply: One 9 V battery

Operating Temperature: 0 to 40 degrees Celsius

Operating Humidity: 30 to 90 percent RH

Dimensions: 183 x 67 x 30 mm

Weight: Approximately 147 g

The product information identifies acceleration, velocity and displacement frequency measurement modes, but does not provide numeric frequency ranges for these parameters.

Standard Accessories

The Metrix Plus VM 8200P is supplied with:

Vibration meter
User manual
Battery
Hard carrying case

B. Working Principle

The Metrix Plus VM 8200P Digital Vibration Meter works using a piezoelectric accelerometer.

When an industrial machine operates, rotating and moving components generate mechanical vibration. The sensor detects this movement and converts the mechanical vibration into a proportional electrical charge or voltage signal.

The meter then digitally processes this signal to determine vibration parameters such as:

Acceleration
Velocity
Displacement

Acceleration Measurement

Acceleration represents the rate at which vibration velocity changes.

Acceleration measurement can help technicians evaluate vibration characteristics that may be associated with mechanical components and higher frequency machine behaviour.

The VM 8200P provides an acceleration measurement range of:

0.1 to 199.9 m/s²

Velocity Measurement

Velocity represents how fast the vibrating machine surface is moving.

Vibration velocity is commonly used when evaluating the overall vibration condition of rotating machinery.

The manufacturer lists the VM 8200P velocity measurement range as:

0.1 to 199.9 m/s

Displacement Measurement

Displacement indicates the physical amount of movement occurring during vibration.

The VM 8200P measures displacement from:

0.001 to 1.999 mm

By measuring acceleration, velocity and displacement, maintenance personnel can evaluate machinery vibration using multiple parameters rather than relying on only one measurement.

C. Why Is the Metrix Plus VM 8200P Used?

Industrial equipment naturally produces some vibration while operating. However, excessive vibration or a significant change in vibration can indicate a developing mechanical problem.

The Metrix Plus VM 8200P allows technicians to measure vibration and monitor equipment condition during routine maintenance.

Detect Machine Imbalance

Imbalance in rotating components can increase vibration.

Regular vibration measurements can help maintenance personnel identify changes that may be associated with an unbalanced rotating component.

Identify Misalignment

Incorrect alignment between motors, shafts, couplings and driven machinery can produce abnormal vibration.

Vibration measurement can provide useful information when technicians are investigating suspected misalignment.

Monitor Bearing Wear

Bearing deterioration can change the vibration characteristics of rotating machinery.

Periodic vibration measurement can help technicians identify unusual behaviour that may require further bearing inspection.

Predictive Maintenance

Predictive maintenance involves monitoring actual machine condition and planning maintenance when measurements indicate deterioration.

The VM 8200P can be used to take regular vibration measurements and compare readings over time.

Preventive Maintenance

The vibration meter can also be incorporated into scheduled preventive maintenance programs.

Maintenance teams can periodically check important machinery rather than waiting for equipment to fail.

Machine Condition Monitoring

The instrument provides numerical vibration readings that can help technicians evaluate equipment condition more systematically.

Equipment Troubleshooting

When a motor, pump, fan or other machine begins producing unusual noise or vibration, the meter can be used as part of the troubleshooting process.

Hard to Reach Measurement Points

The probe arrangement makes the VM 8200P particularly useful when vibration measurements need to be taken from equipment locations that are not easily accessible.

Reduce Unexpected Downtime

Detecting abnormal vibration at an early stage can help maintenance teams schedule inspection and repair before a mechanical problem develops into a major breakdown.

D. Suitable Buyers

The Metrix Plus VM 8200P Vibration Meter with Probe is suitable for industrial professionals responsible for maintenance, machine health and equipment reliability.

Plant Maintenance Engineers

Maintenance engineers can use the meter for regular vibration inspection of motors, pumps and other industrial machinery.

Mechanical Maintenance Technicians

Technicians can use the probe based meter for routine measurements and troubleshooting of rotating equipment.

Predictive Maintenance Teams

Condition monitoring teams can record vibration readings periodically and compare them to identify changes in machine behaviour.

Reliability Engineers

Reliability professionals can include vibration measurements as part of machinery health monitoring and maintenance planning.

Manufacturing Plants

Factories operating multiple motors, pumps, fans and rotating machines can use vibration measurement as part of routine maintenance.

Motor Repair Companies

Motor service centres can use vibration measurement during motor inspection, troubleshooting and testing.

Pump Maintenance Companies

Pump manufacturers, service providers and maintenance teams can use the meter when inspecting pump and motor assemblies.

HVAC Maintenance Companies

HVAC systems often use fans, blowers, pumps and motors that may require vibration inspection.

Industrial Maintenance Contractors

Portable vibration meters are useful for technicians carrying out equipment inspections across different customer sites.

OEM Machine Manufacturers

Machine manufacturers can use vibration measurements during testing, commissioning and equipment inspection.

Process Industries

Chemical plants, pharmaceutical facilities, food processing plants and other industrial facilities can use vibration monitoring as part of their machinery maintenance programs.

Frequently Asked Questions

1. What is the Metrix Plus VM 8200P?

The Metrix Plus VM 8200P is a portable digital vibration meter with a probe, designed for measuring vibration acceleration, velocity and displacement in industrial machinery.

2. What does the VM 8200P measure?

It measures:

Acceleration
Velocity
Displacement

3. What is the acceleration measurement range?

The acceleration measurement range is 0.1 to 199.9 m/s².

4. What is the velocity measurement range?

The manufacturer specifies a velocity range of 0.1 to 199.9 m/s.

5. What is the displacement measurement range?

The displacement range is 0.001 to 1.999 mm.

6. What type of vibration sensor does the VM 8200P use?

It uses a piezoelectric ceramic accelerometer of shear type.

7. Why does the VM 8200P use a probe?

The probe allows vibration measurements to be taken directly from machinery surfaces and can be particularly useful for equipment measurement points that are difficult to access.

8. Is the VM 8200P suitable for machine condition monitoring?

Yes. Equipment condition monitoring is one of the main applications of the VM 8200P.

9. Can it be used as a motor vibration meter?

Yes. The instrument can be used for vibration monitoring and maintenance inspection of industrial motors.

10. Can the VM 8200P be used for pumps?

Yes. Pumps are among the rotating machines for which vibration monitoring can be useful.

11. Can it be used for industrial fans?

Yes. Fans and similar rotating machines can be checked using the VM 8200P as part of routine condition monitoring.

12. Can the vibration meter help detect imbalance?

Yes. Abnormal vibration measurements can help technicians investigate mechanical conditions such as rotating component imbalance.
