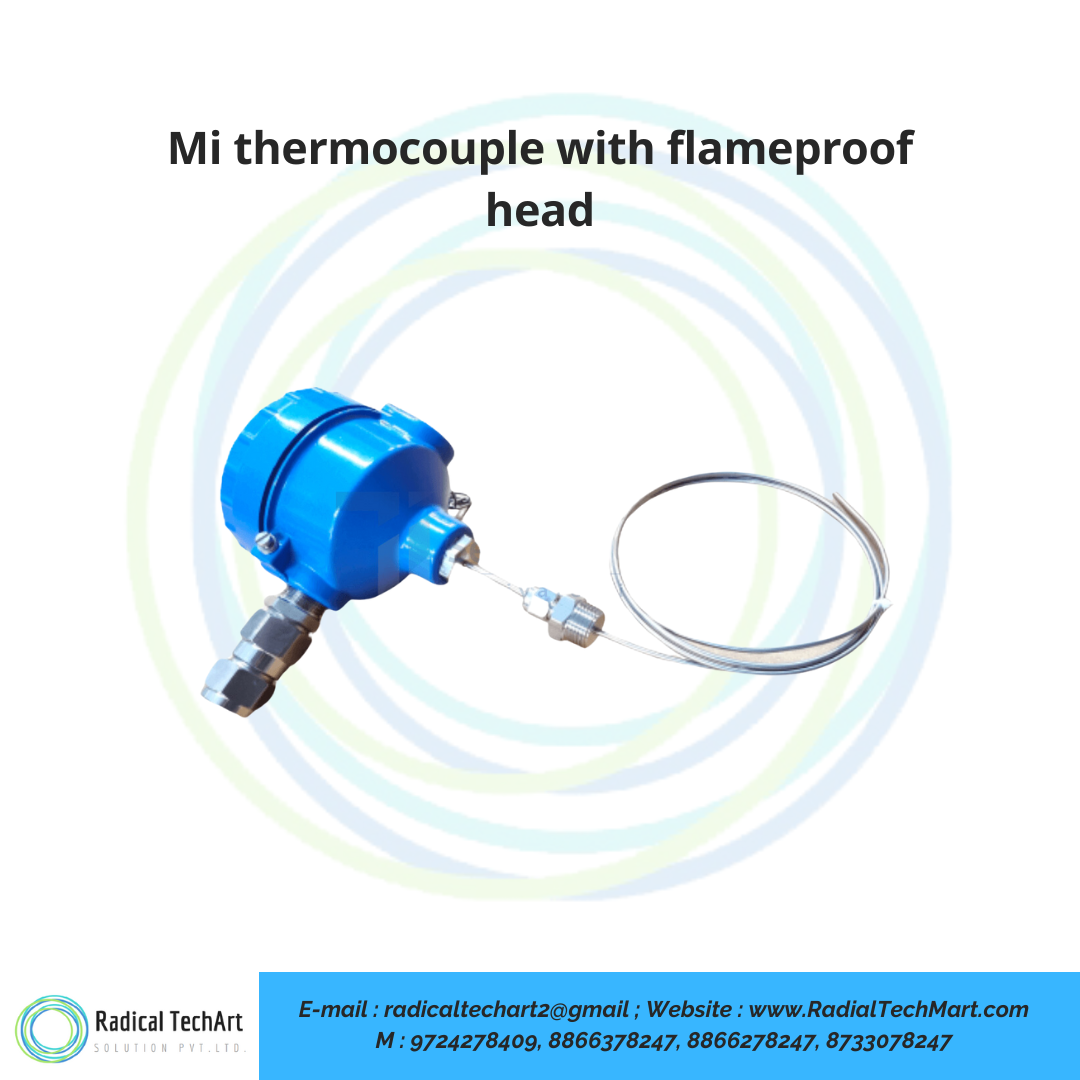

Mineral Insulated Thermocouple with Flameproof Head

A. Product Overview

MI Thermocouple with Flameproof Head is a mineral insulated temperature sensor used for accurate temperature measurement in hazardous industrial environments. It is specially designed for areas where there is a risk of fire, gas leakage, vapor, dust, or explosion.

The sensor is made using thermocouple wires insulated with highly compressed mineral powder, usually magnesium oxide. These wires are protected inside a strong metal sheath such as SS316, SS310, or Inconel. The flameproof head provides additional protection by containing any internal spark or explosion and preventing it from spreading to the surrounding atmosphere.

This type of thermocouple is commonly available in J Type, K Type, and N Type options with Simplex and Duplex construction. It can be supplied with different probe diameters, probe lengths, sheath materials, and BSP or NPT thread connections as per application requirements.

B. Working Principle

The MI Thermocouple works on the thermoelectric principle. It uses two different metal wires joined at one end to form a measuring junction. When this junction is exposed to temperature, it generates a small voltage signal. This voltage changes according to the process temperature.

The voltage signal is then sent to a temperature indicator, controller, transmitter, PLC, or control panel. The connected device converts this signal into a readable temperature value.

In this design, the thermocouple wires are insulated with mineral insulation and protected by a metallic sheath. The flameproof head protects the terminal connection area from hazardous gases and explosive atmospheres. If any spark or internal explosion occurs inside the head, the flameproof enclosure helps contain it safely.

C. Why It Is Used

MI Thermocouple with Flameproof Head is used because normal temperature sensors may not be safe in hazardous industrial areas. In industries like chemical, petrochemical, oil and gas, refinery, power, and furnace applications, explosive gases or flammable vapors may be present.

This thermocouple is used for:

Accurate temperature measurement in hazardous areas
Safe operation in explosive environments
High temperature measurement in furnaces and boilers
Protection of sensor wiring and terminal connections
Long service life in harsh industrial conditions
Reliable performance in vibration and high-temperature applications
Process safety and temperature control in critical industries

Its mineral insulated construction gives fast response, high durability, and better mechanical strength compared to ordinary thermocouples.

D. Suitable Buyers

This product is suitable for buyers who need safe and reliable temperature measurement in hazardous and high-temperature applications.

Suitable buyers include:

Chemical plant operators
Oil refinery maintenance teams
Petrochemical industries
Boiler manufacturers
Furnace manufacturers
Power plant engineers
Process industry maintenance teams
Instrumentation engineers
Automation system integrators
Panel manufacturers
OEM machine manufacturers
Pharmaceutical plant engineers
Food processing plants with hazardous zones
Paint, solvent, and chemical storage industries
Purchase managers looking for flameproof temperature sensors

FAQ

1. What is an MI Thermocouple with Flameproof Head?

An MI Thermocouple with Flameproof Head is a mineral insulated temperature sensor designed for hazardous and explosive areas. It measures process temperature safely while the flameproof head protects the terminal connection from explosive atmospheres.

2. Where is an MI Thermocouple with Flameproof Head used?

It is used in chemical plants, oil refineries, petrochemical plants, boilers, furnaces, power plants, solvent plants, gas handling areas, and other hazardous industrial locations.

3. Why is a flameproof head required in thermocouples?

A flameproof head is required to prevent sparks or internal explosions from spreading outside the enclosure. This makes the thermocouple safer for explosive gas and vapor environments.

4. Which thermocouple types are available in flameproof head MI thermocouples?

Commonly available types include J Type, K Type, and N Type thermocouples. The selection depends on the required temperature range, process condition, and accuracy requirement.

5. What is the temperature range of an MI Thermocouple with Flameproof Head?

The temperature range can vary based on the thermocouple type and sheath material. Common ranges include 0 to 700°C and 0 to 1200°C.

6. What sheath materials are available?

Common sheath materials include SS316, SS310, and Inconel. SS316 is suitable for general industrial use, SS310 is suitable for higher temperature applications, and Inconel is suitable for harsh and high-temperature environments.

7. What is the difference between Simplex and Duplex MI Thermocouple?

A Simplex thermocouple has one sensing element, while a Duplex thermocouple has two sensing elements inside the same probe. Duplex construction is used when two separate temperature signals are required from one sensor location.

8. Can the probe length be customized?

Yes, the probe length can be customized as per the application requirement, installation depth, thermowell length, and process connection design.

9. What thread connections are available?

Common thread connections include BSP and NPT thread options. Sizes can vary based on process requirement and installation design.

10. Is this thermocouple suitable for furnace and boiler applications?

Yes, MI Thermocouple with Flameproof Head is suitable for furnace, boiler, heater, and high-temperature process applications when selected with the correct thermocouple type and sheath material.

11. Can this thermocouple be connected to a PLC or temperature controller?

Yes, it can be connected to a temperature indicator, temperature controller, transmitter, PLC, SCADA system, or control panel through suitable thermocouple cable and signal conditioning devices.

12. How do I select the right MI Thermocouple with Flameproof Head?

To select the right model, confirm the thermocouple type, temperature range, probe diameter, probe length, sheath material, thread connection, Simplex or Duplex requirement, and hazardous area requirement.
