Mineral Insulated Thermocouple with Miniature Plug Connector

A. Product Overview

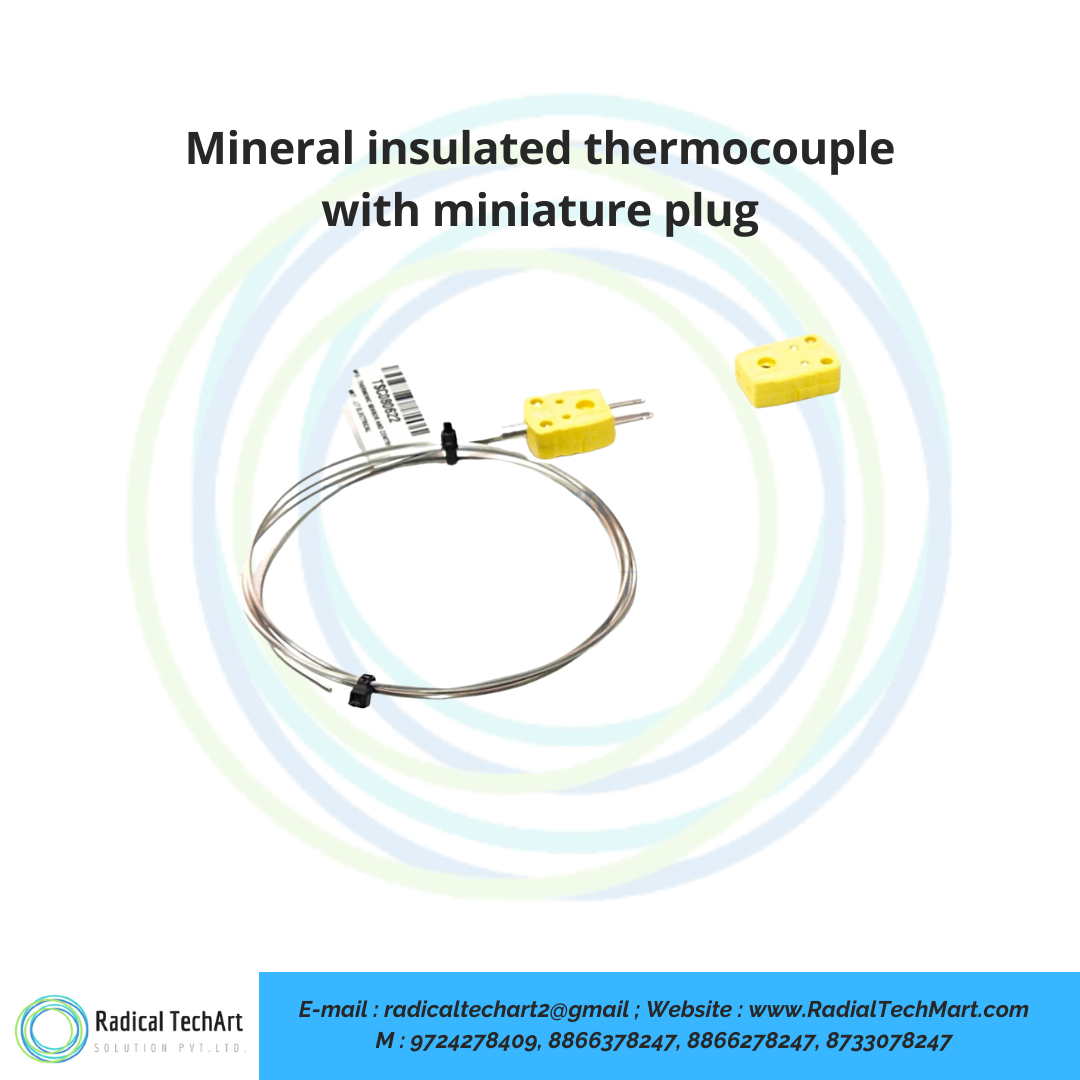

A Mineral Insulated Thermocouple with Miniature Plug is a temperature sensor used to measure process, machine, surface or equipment temperature in industrial and laboratory applications.

It is made using mineral insulated cable, where thermocouple wires are protected inside a metallic sheath with highly compressed mineral insulation. This construction gives the sensor good thermal conductivity, mechanical strength, electrical insulation and long service life.

The miniature plug connector makes the thermocouple easy to connect and disconnect from temperature meters, PID controllers, data loggers and testing instruments. Because of its compact size, this thermocouple is suitable for applications where space is limited and a fast temperature response is required.

Common specifications include Type J, Type K and Type N thermocouple options, sheath diameter options such as 0.5 mm, 1 mm, 1.5 mm and 2 mm, custom sheath length and sheath materials such as SS310, SS316 or high temperature alloy as per application requirement.

B. Working Principle

A thermocouple works on the Seebeck effect. It is made by joining two different metal wires at one measuring junction. When this junction is exposed to heat, a small voltage is generated.

This voltage changes according to the temperature at the measuring point. The generated signal is sent through the mineral insulated cable to the miniature plug connector. From there, it is connected to a temperature indicator, controller, transmitter or data logger.

The instrument reads the thermocouple signal and converts it into a temperature value. The mineral insulation helps transfer heat quickly to the sensing junction, which gives faster response and stable temperature measurement.

C. Why It Is Used

Mineral Insulated Thermocouple with Miniature Plug is used because it provides fast, accurate and reliable temperature measurement in compact applications.

It is preferred where the sensor needs to withstand vibration, heat, mechanical stress and limited installation space. The mineral insulated construction gives better durability than ordinary thermocouple wire, while the miniature plug allows easy connection and replacement.

This thermocouple is useful for machinery, heating systems, laboratory instruments, medical equipment, plastic processing, furnaces, ovens, testing setups, industrial process control and automation panels.

It is also used where quick temperature change needs to be detected, because the small sheath diameter and mineral insulated cable provide faster response compared to bulky temperature sensors.

D. Suitable Buyers

This product is suitable for industrial users, OEMs, maintenance teams and system integrators who need compact and reliable temperature measurement.

Suitable buyers include:

Industrial automation companies looking for compact temperature sensors for machines and panels.

OEM machine manufacturers using temperature measurement in equipment, heaters, ovens and process machines.

Plastic machinery manufacturers requiring fast response thermocouples for temperature monitoring.

Laboratory and testing instrument manufacturers needing miniature plug temperature sensors.

Maintenance engineers replacing damaged thermocouples in existing machines.

Panel builders and system integrators using thermocouples with PID controllers, indicators and data loggers.

Furnace, oven and heater manufacturers requiring high temperature sensing solutions.

Pharma, food, packaging, chemical and manufacturing industries needing reliable temperature monitoring.

FAQ

1. What is a Mineral Insulated Thermocouple with Miniature Plug?

A Mineral Insulated Thermocouple with Miniature Plug is a temperature sensor made with mineral insulated cable and a compact miniature plug connector. It is used for accurate temperature measurement in industrial and laboratory applications.

2. What is the benefit of mineral insulated construction?

Mineral insulated construction provides good thermal conductivity, mechanical strength, electrical insulation and resistance to vibration. It also helps the sensor respond quickly to temperature changes.

3. Why is a miniature plug used in this thermocouple?

The miniature plug is used for easy connection with temperature indicators, controllers, data loggers and measuring instruments. It also makes installation and replacement faster.

4. Which thermocouple types are available?

Common options include Type J, Type K and Type N, depending on the temperature range, accuracy requirement and application environment.

5. What sheath diameter options are available?

Common sheath diameter options include 0.5 mm, 1 mm, 1.5 mm and 2 mm. The exact diameter can be selected as per response time, mechanical strength and installation requirement.

6. What sheath material is used?

The sheath material can be SS310, SS316 or other suitable high temperature alloy depending on the application, temperature range and process environment.

7. Where is this thermocouple commonly used?

It is commonly used in industrial machines, laboratory instruments, heaters, ovens, furnaces, plastic machinery, medical devices, process control systems and automation panels.

8. Is it suitable for high temperature applications?

Yes, it can be used for high temperature applications depending on the thermocouple type, sheath material, sheath diameter and construction. The shown specification supports use up to 800°C, while other designs may support different temperature ranges.

9. Can the sheath length be customized?

Yes, the sheath length can be made as per application requirement. Custom length is useful when the sensor needs to reach a specific measuring point inside a machine or process.

10. How should this thermocouple be connected?

It should be connected to a compatible temperature meter, PID controller, data logger or transmitter using the miniature plug connector. The thermocouple type must match the instrument input type for accurate reading.
