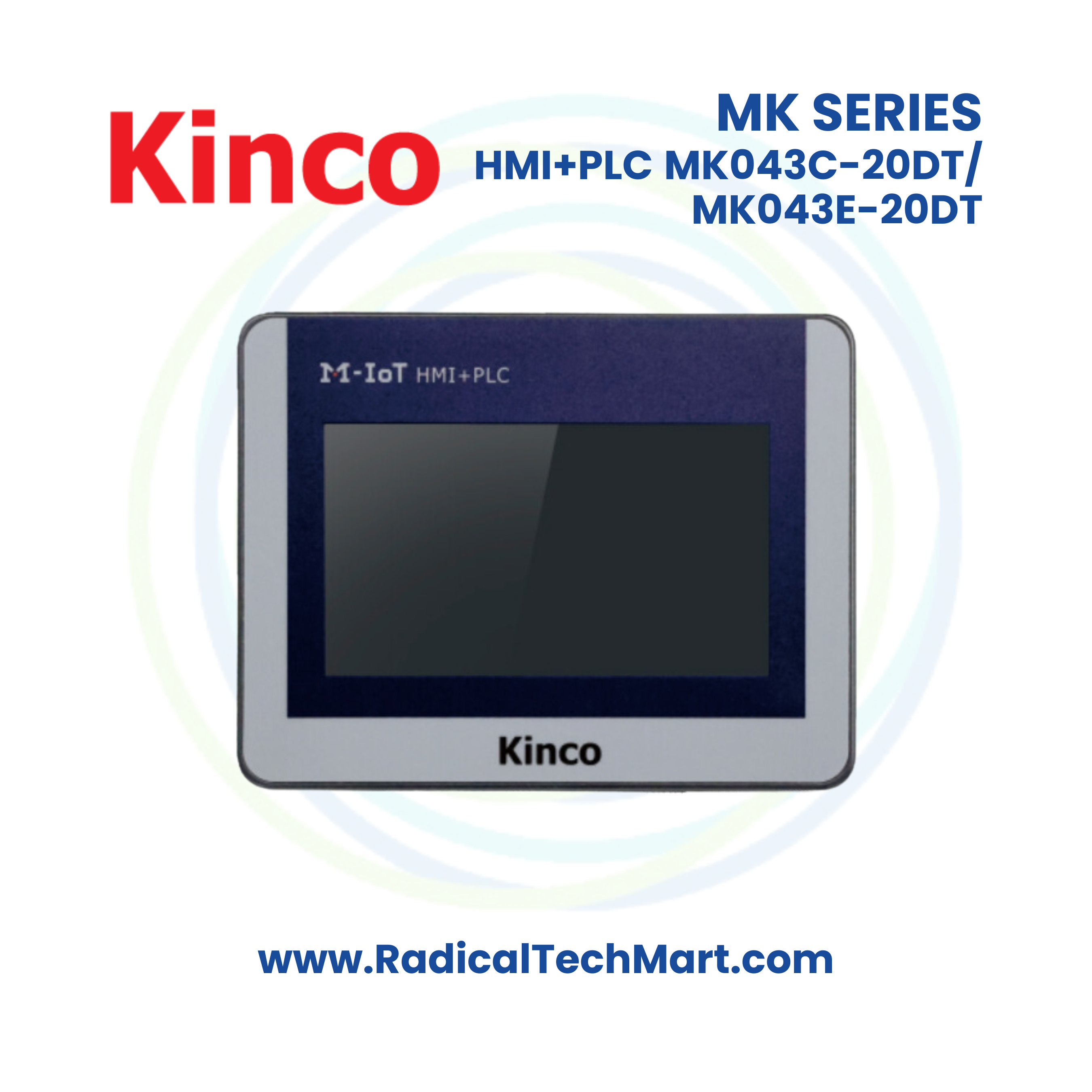

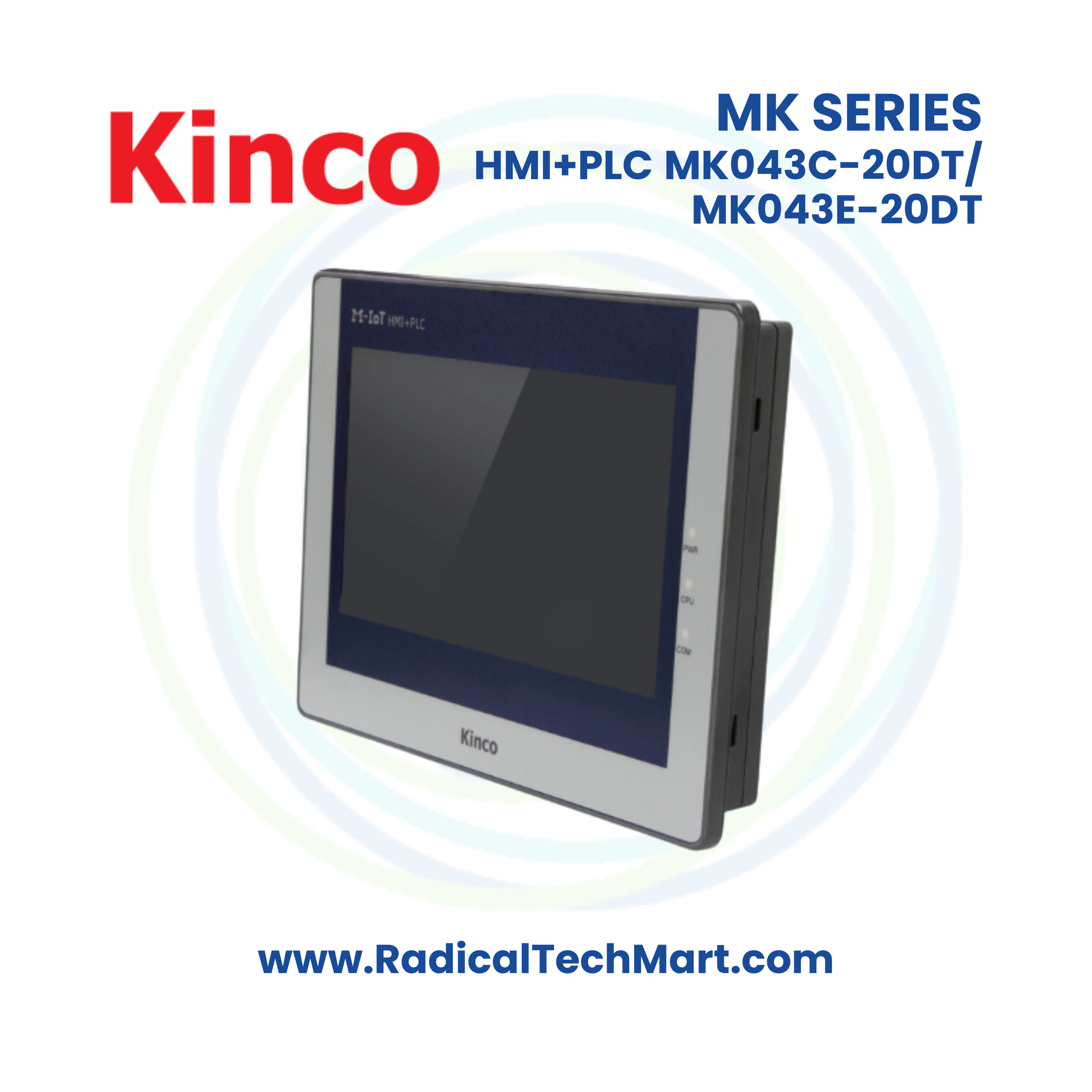

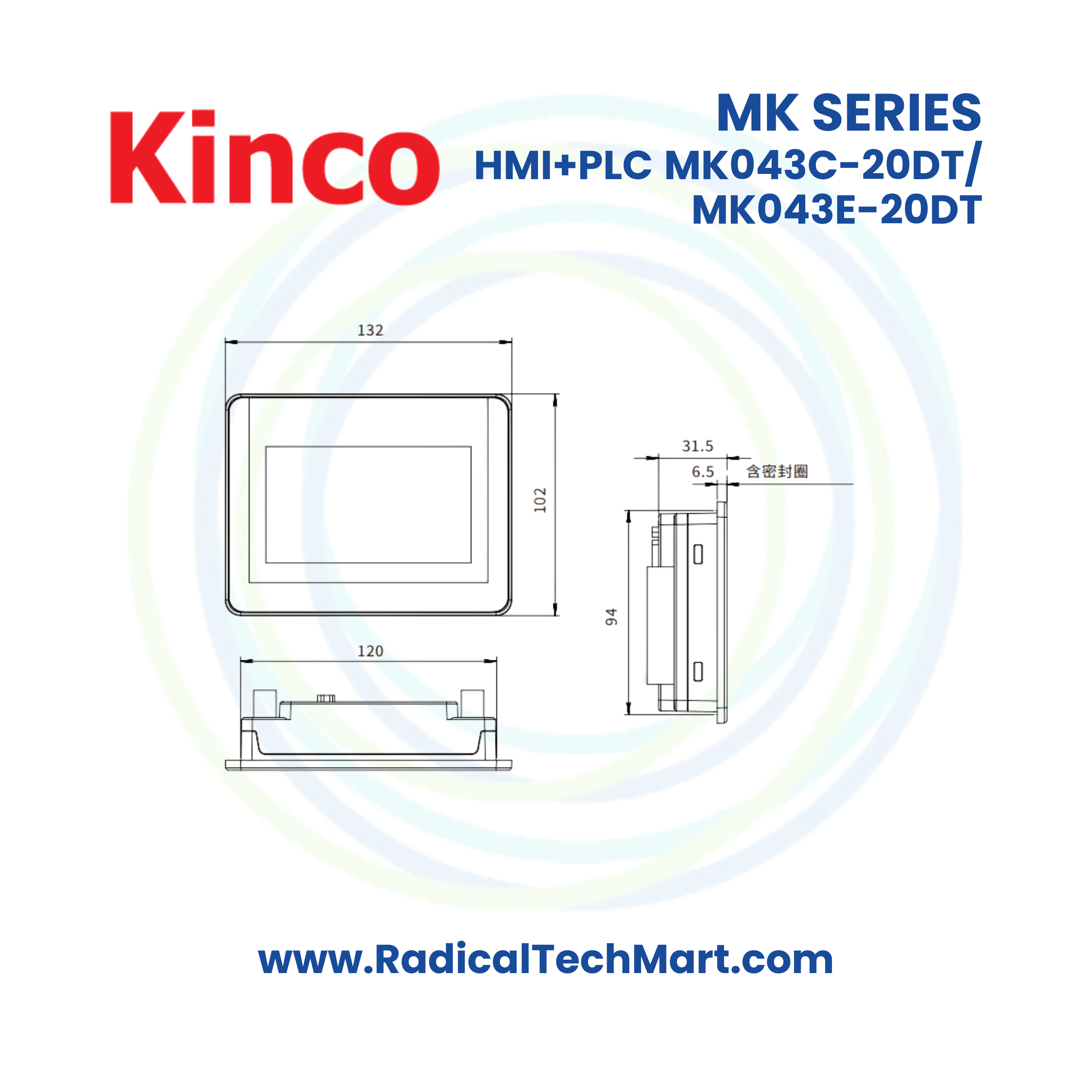

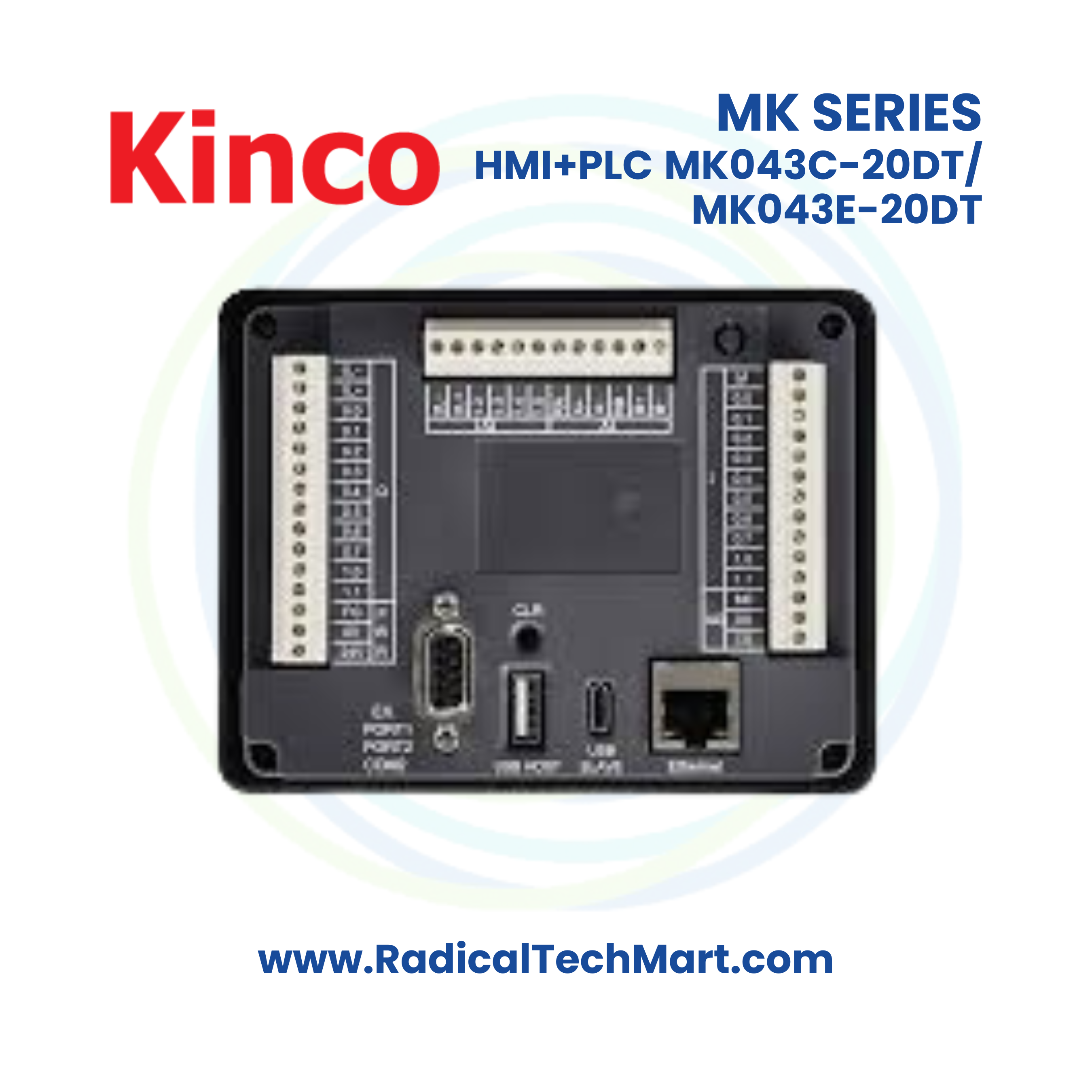

MK Series 4.3" HMI+PLC Combo
User Manual
The Kinco MK Series 4.3" HMI+PLC Combo offers an all-in-one solution for industrial automation needs. Featuring a bright, responsive 4.3-inch TFT display with 480x272 resolution, this device provides clear, user-friendly interfaces for monitoring and control. The integrated PLC supports a variety of programming languages (IEC 61131-3), making it versatile and adaptable to different industrial applications. With multiple I/O options, communication ports like RS232, RS485, and Ethernet, the MK043e-27DT ensures seamless integration into your automation system. Designed for industries looking for compact, space-saving solutions, this HMI+PLC combo enhances efficiency and performance while reducing installation complexity.
Ideal for machine control, process automation, and other industrial applications, the Kinco MK Series combines reliability, functionality, and ease of use, making it a valuable asset for any automation environment.
HMI Specifications
| Feature | MK043E-20DT | MK043C-20DT |
|---|---|---|
| Display Size | 4.3 inches | 4.3 inches |
| Resolution | 480 x 272 pixels | 480 x 272 pixels |
| Display Type | TFT LED with 256K colors | TFT LED with 256K colors |
| Touch Panel | -Wire Precision resistive network (Surface Hardness H) | -Wire Precision resistive network (Surface Hardness H) |
| Processor | 700MHz RISC | 700MHz RISC |
| Memory | 128 MB Flash, 64 MB DDR2 | 128 MB Flash, 64 MB DDR2 |
| Communication Ports | 1 x RS232, 1 x RS485, 1 x USB Host | 1 x RS232, 1 x RS485, 1 x USB Host |
| Ethernet | Not available | Available |
| Power Supply | DC 24V | DC 24V |
| Input Voltage Range | 12V - 28V DC | 12V - 28V DC |
| Operating Temperature | -10°C to 60°C | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C | -20°C to 70°C |
| Software | Kinco DTools V4.0 or above | Kinco DTools V4.0 or above |
| Certification | CE, FCC, RoHS | CE, FCC, RoHS |
PLC Specifications
| Feature | MK043E-20DT | MK043C-20DT |
|---|---|---|
| Power Supply | DC 24V | DC 24V |
| Input Voltage Range | DC 20.4V - DC 28.8V | DC 20.4V - DC 28.8V |
| Digital Inputs | 9 DI (NPN/PNP, 24V DC) | 9 DI (NPN/PNP, 24V DC) |
| Digital Outputs | 9 DO (Transistor, PNP, 24V DC) | 9 DO (Transistor, PNP, 24V DC) |
| Analog Inputs | 2 AI (Support 0-10V) | 2 AI (Support 0-10V) |
| Analog Outputs | 2 AO (Support 0-10V) | None |
| High-speed Inputs | 4 Channels, up to 50kHz | 4 Channels, up to 50kHz |
| High-speed Outputs | 4 Channels, up to 10kHz | 4 Channels, up to 10kHz |
| Communication Ports | 2 x RS485 (Support Modbus RTU master/slave) | 1 x USB SLAVE(USB-B) |
| Expansion | Supports additional I/O modules | Supports additional I/O modules |
| Program Capacity | 4k instructions | 4k instructions |
| Data Capacity | 4k bytes | 4k bytes |
| Backup Memory | EZPRON, 448 bytes | EZPRON, 448 bytes |
| Real-time Clock | Built-in RTC | Built-in RTC |
| Battery Backup | Lithium battery, 3 years typical at 25°C | Lithium battery, 3 years typical at 25°C |
| Programming Software | KincoBuilder for PLC | KincoBuilder for PLC |
| Protocol Support | Modbus RTU, CANopen | Modbus RTU, CANopen, Ethernet |
