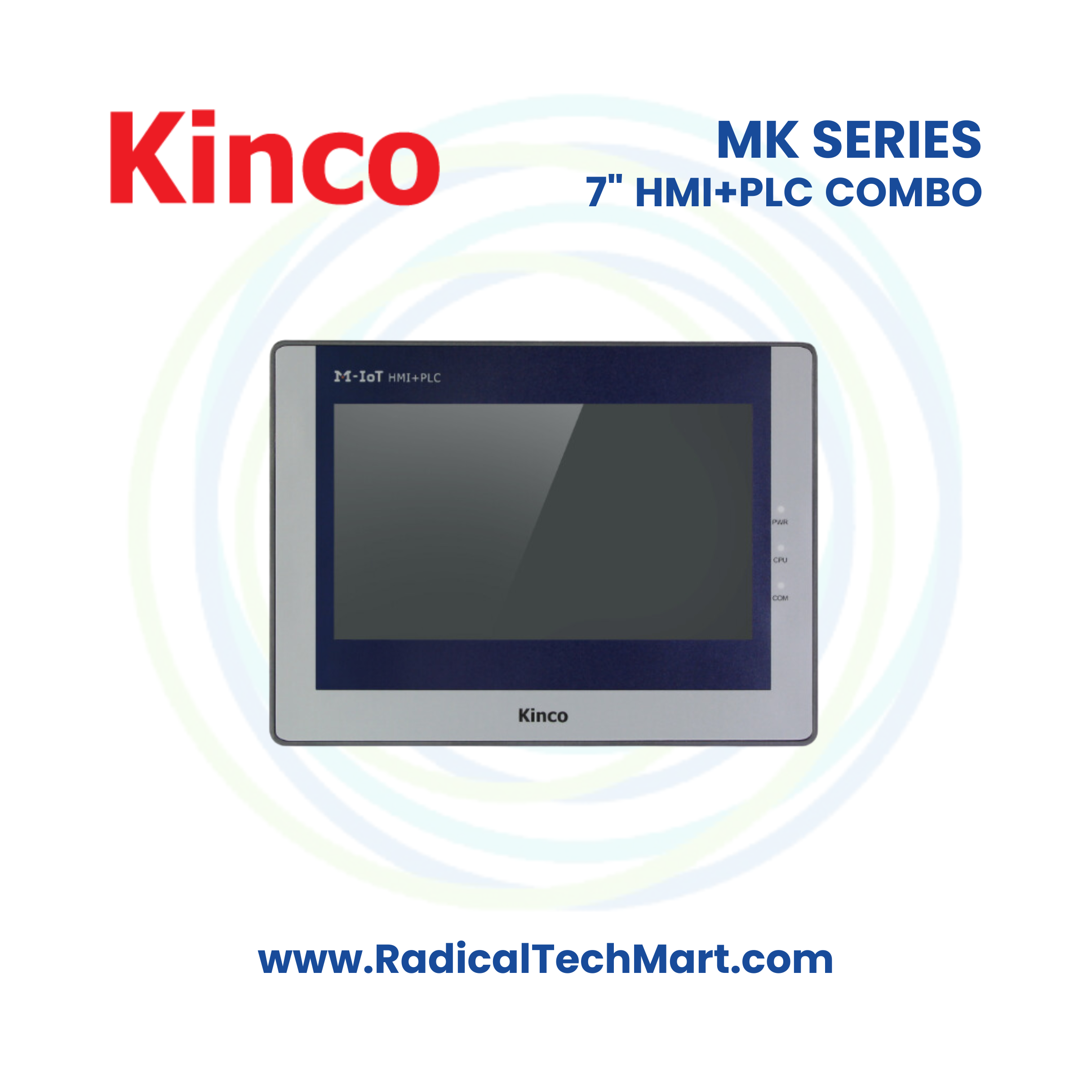

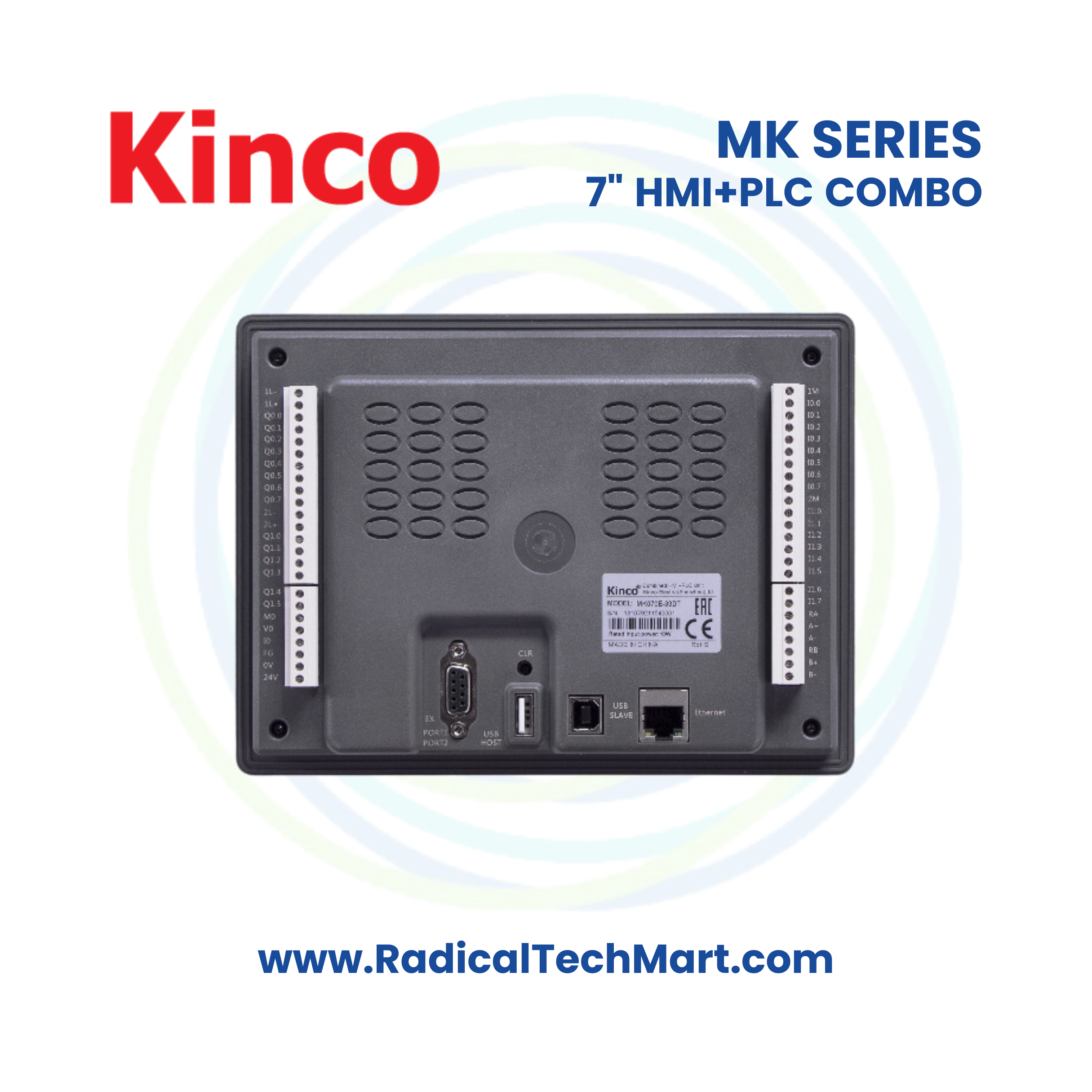

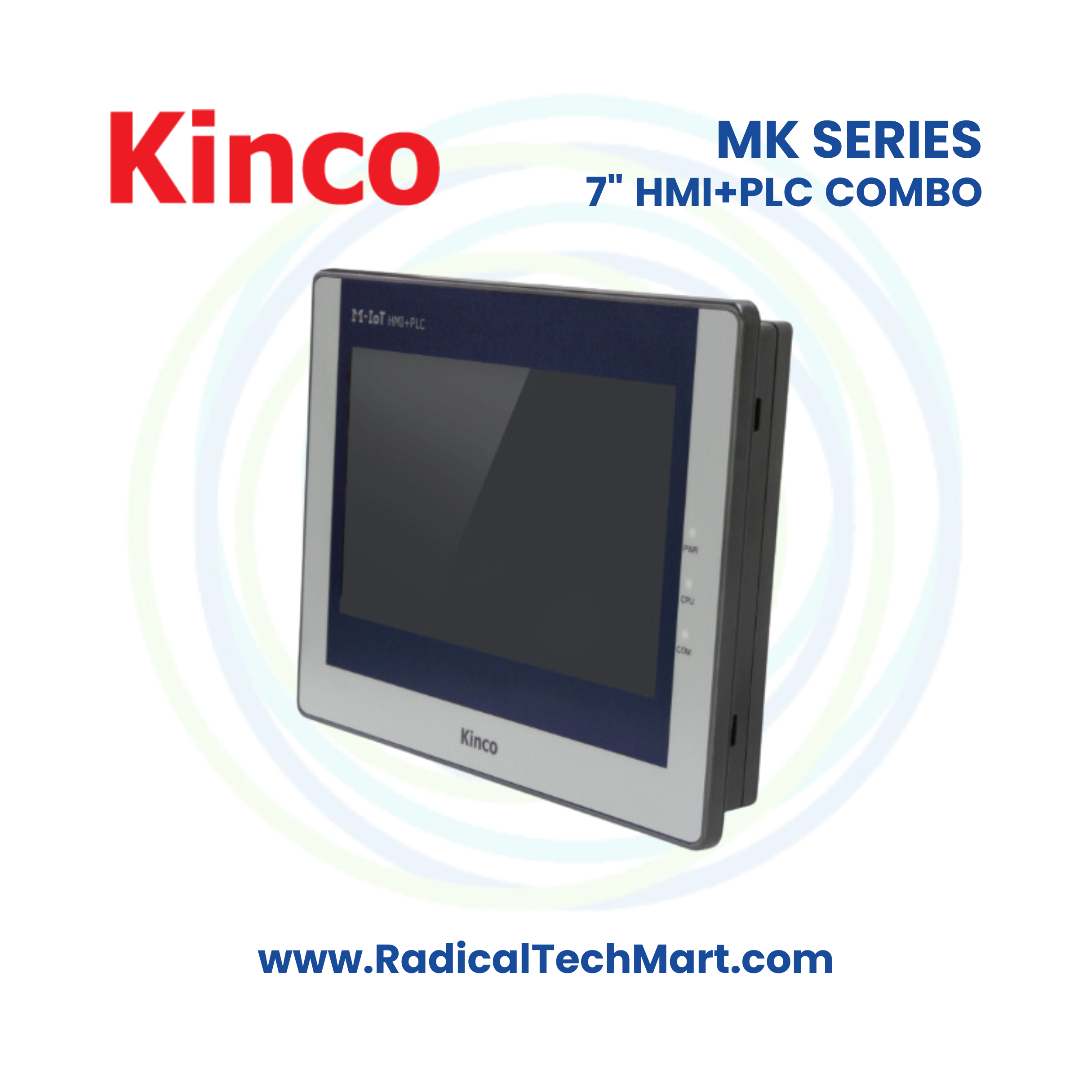

MK Series 7" HMI+PLC Combo
₹0.00 ₹16,100.00
Elevate your industrial automation with the MK Series 7" HMI+PLC Combo. This advanced controller features a spacious 7-inch touch screen, providing clear and intuitive operation for complex automation tasks. Designed to integrate seamlessly with programmable logic control, this combo offers reliable and efficient performance, making it ideal for a wide range of factory automation applications. The MK Series 7" HMI+PLC Combo combines the power of a high-resolution display with the flexibility of a robust PLC, ensuring optimal control and monitoring of your industrial processes. Enhance your system’s functionality with this cutting-edge solution from Kinco.
Product Details
HMI Specifications
| Feature | MK070C-33DT | MK070E-33DT | MK070E-32DX |
|---|---|---|---|
| Display Size | 7.0 inches | 7.0 inches | 7.0 inches |
| Resolution | 800 x 480 pixels | 800 x 480 pixels | 800 x 480 pixels |
| Display Type | TFT LED with 256K colors | TFT LED with 256K colors | TFT LED with 256K colors |
| Touch Panel | Resistive | Resistive | Resistive |
| Processor | 700 MHz | 700 MHz | 700 MHz |
| Memory | 256 MB Flash, 128 MB RAM | 256 MB Flash, 128 MB RAM | 256 MB Flash, 128 MB RAM |
| Communication Ports | 2 x RS232, 2 x RS485, 1 x USB Host | 2 x RS232, 2 x RS485, 1 x USB Host | 2 x RS232, 2 x RS485, 1 x USB Host |
| Ethernet | Available | Available | Available |
| Power Supply | DC 24V | DC 24V | DC 24V |
| Input Voltage Range | 12V - 28V DC | 12V - 28V DC | 12V - 28V DC |
| Operating Temperature | -10°C to 60°C | -10°C to 60°C | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C | -20°C to 70°C | -20°C to 70°C |
| Software | Kinco DTools V4.0 or above | Kinco DTools V4.0 or above | Kinco DTools V4.0 or above |
| Certification | CE, FCC, RoHS | CE, FCC, RoHS | CE, FCC, RoHS |
PLC Specifications
| Feature | MK070C-33DT | MK070E-33DT | MK070E-32DX |
|---|---|---|---|
| Power Supply | DC 24V | DC 24V | DC 24V |
| Input Voltage Range | DC 20.4V - DC 28.8V | DC 20.4V - DC 28.8V | DC 20.4V - DC 28.8V |
| Digital Inputs | 16 DI (NPN/PNP, 24V DC) | 16 DI (NPN/PNP, 24V DC) | DI 16 DC24V(NPN/PNP) |
| Digital Outputs | 14 DO (Transistor, PNP, 24V DC) | 14 DO (Transistor, PNP, 24V DC) | DO 4*DC24V(PNP)+12*Relay |
| Analog Inputs | 2 AI (Support 4-20mA, 0-10V) | 2 AI (Support 4-20mA, 0-10V | None |
| Analog Outputs | 1 AO (Support 0-10V) | 1 AO (Support 0-10V | None |
| High-speed Inputs | 4 Channels, up to 50kHz | 4 Channels, up to 50kHz | 4 Channels, up to 50kHz |
| High-speed Outputs | 4 Channels, up to 10kHz | 4 Channels, up to 10kHz | 4 Channels, up to 10kHz |
| Communication Ports | 2 x RS485, 1 x Ethernet (Support Modbus RTU) | 2 x RS485, 1 x Ethernet (Support Modbus RTU) | 2 x RS485, 1 x Ethernet (Support Modbus RTU) |
| Expansion | Supports additional I/O modules | Supports additional I/O modules | Supports additional I/O modules |
| Program Capacity | 8k instructions | 8k instructions | 8k instructions |
| Data Capacity | 8k bytes | 8k bytes | 8k bytes |
| Backup Memory | EZPRON, 512 bytes | EZPRON, 512 bytes | EZPRON, 512 bytes |
| Real-time Clock | Built-in RTC | Built-in RTC | Built-in RTC |
| Battery Backup | Lithium battery, 3 years typical at 25°C | Lithium battery, 3 years typical at 25°C | Lithium battery, 3 years typical at 25°C |
| Programming Software | KincoBuilder for PLC | KincoBuilder for PLC | KincoBuilder for PLC |
| Protocol Support | Modbus RTU, CANopen, Ethernet | Modbus RTU, CANopen, Ethernet | Modbus RTU, CANopen, Ethernet |
