A. Product Overview

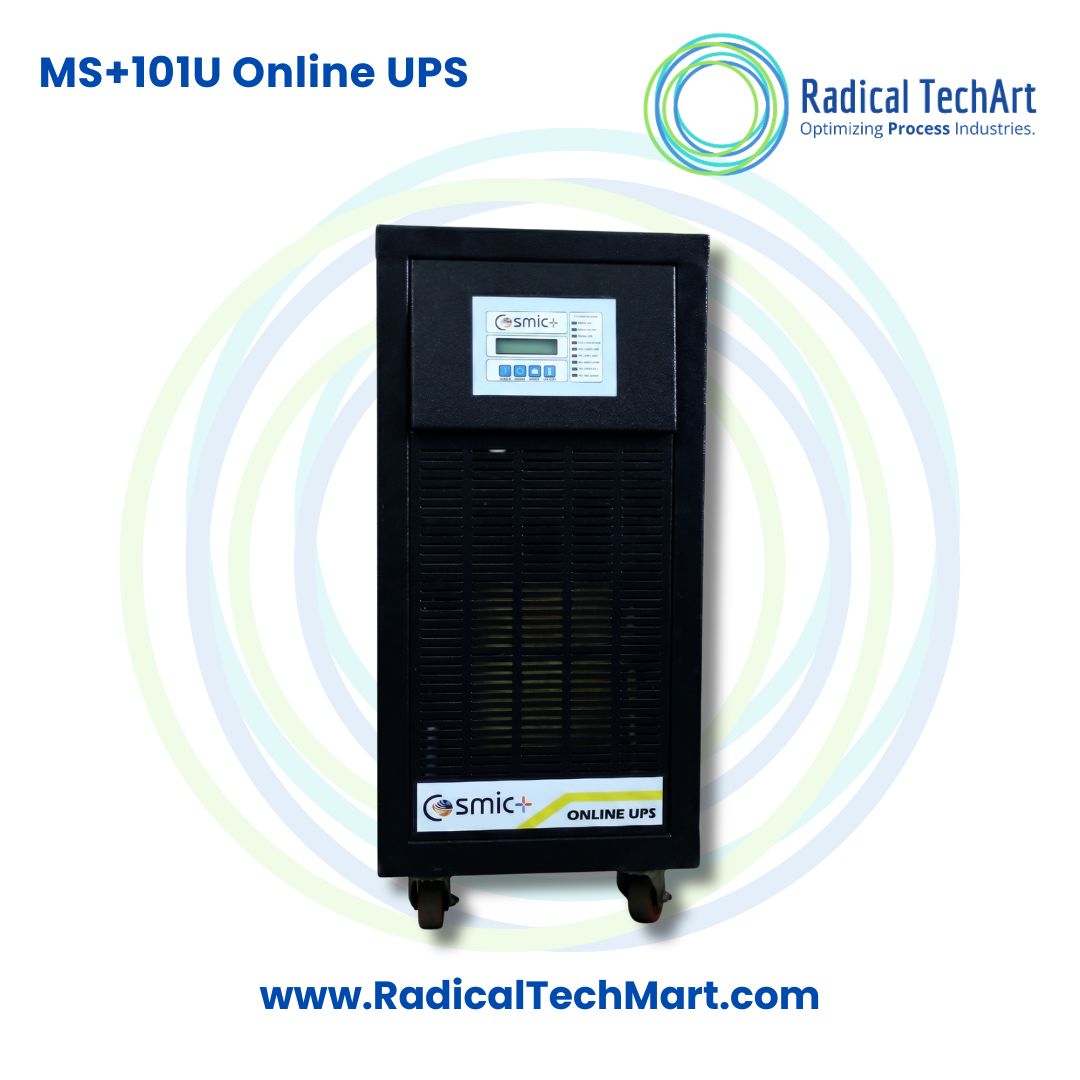

The COSMIC+ MS+101U Online UPS is an industrial-grade uninterruptible power supply designed to provide clean, stable and continuous power to sensitive electrical and electronic equipment.

The model is available in ratings from 5 kVA to 15 kVA and uses a single-phase input and single-phase output configuration. Its DSP-based control system and IGBT switching double-conversion technology help regulate the output voltage and isolate connected equipment from common electrical supply problems.

The UPS accepts a rated input of 230 V AC with a tolerance of plus or minus 10 percent and provides a regulated 230 V AC output with plus or minus 1 percent regulation. It delivers a PWM sine wave output with less than 3 percent total harmonic distortion and an inverter efficiency of more than 93 percent.

Main Features

• Capacity range from 5 kVA to 15 kVA
• Single-phase input and single-phase output
• DSP-based control technology
• IGBT switching double-conversion design
• 230 V AC regulated output
• Output voltage regulation of plus or minus 1 percent
• PWM sine wave output
• Less than 3 percent total harmonic distortion
• Inverter efficiency above 93 percent
• Output power factor of 0.8
• Inbuilt copper or aluminium isolation transformer
• SMF battery compatibility
• LCD, digital or LED metering options
• Fan-cooled construction
• IP20 panel enclosure
• Optional SNMP communication
• Optional static bypass
• Manual bypass switch
• Overload, short-circuit, under-voltage and over-voltage protection

The display can indicate input voltage, output voltage, output current, frequency, DC voltage, battery percentage, load percentage and system faults.

B. Working Principle

The COSMIC+ MS+101U operates using an online double-conversion process.

First, the incoming single-phase AC supply is converted into DC power. This DC power supports the inverter and charges the connected battery bank. The inverter then converts the DC power back into a regulated single-phase AC output for the connected equipment.

Because the load is powered through the inverter during normal operation, the UPS helps protect the equipment from voltage fluctuations, brownouts, surges, electrical disturbances and complete mains failure.

When the mains supply fails or moves outside the acceptable operating range, the battery bank continues supplying DC power to the inverter. The inverter then maintains AC power to the connected load according to the available battery capacity and load requirement.

The system uses DSP control and IGBT switching to regulate its output. Its rated output is 230 V AC with plus or minus 1 percent regulation, while the output frequency stability is specified as 50 Hz with plus or minus 0.1 Hz.

C. Why It Is Used

The COSMIC+ MS+101U Online UPS is used to protect critical equipment from interruptions and disturbances in the main electrical supply.

Continuous Power Support

It helps keep essential equipment operating during mains failure by drawing power from the connected battery bank.

Voltage Regulation

The UPS provides a regulated 230 V AC output, helping protect connected loads from input voltage variations.

Protection of Sensitive Equipment

Industrial controllers, servers, laboratory instruments, communication systems and medical equipment can be affected by unstable voltage, electrical noise and sudden power loss. The UPS provides a controlled power supply for such equipment.

Reduced Operational Disruption

Unexpected shutdowns can interrupt manufacturing, data processing, communication and testing activities. An online UPS helps reduce interruptions caused by unreliable power.

Electrical Isolation

The inbuilt isolation transformer helps provide electrical separation between the incoming power supply and the connected load.

System Monitoring

The digital display provides information about input and output voltage, load level, battery level, DC voltage, frequency and system faults.

Remote Communication

An SNMP communication port is available on request, allowing compatible monitoring systems to supervise the UPS remotely.

Equipment Protection

The MS+101U includes protection against output overload, short circuit, output under-voltage, output over-voltage, DC under-voltage, DC over-voltage, mains under-voltage, mains over-voltage and mains single phasing.

D. Suitable Buyers

The COSMIC+ MS+101U Online UPS is suitable for organisations that operate equipment requiring reliable and regulated power.

Process Industries

Suitable for control systems, automation panels, monitoring equipment and process instruments.

Manufacturing Industries

Can be used for production control systems, industrial computers, PLC systems and other critical manufacturing equipment.

Data Centres and Server Rooms

Suitable for servers, storage systems, networking devices and communication infrastructure.

Research Laboratories

Can support laboratory instruments, testing systems, measurement equipment and research computers.

Medical and Healthcare Units

Suitable for compatible diagnostic, monitoring and laboratory equipment where stable power is required.

Telecommunication Networks

Can support communication systems, networking equipment, control panels and related infrastructure.

Financial Institutions

Suitable for computers, servers, transaction systems, networking equipment and other critical electronic systems.

Educational Institutions

Can support computer laboratories, servers, communication systems and research equipment.

System Integrators

Useful for companies designing power backup systems for industrial, commercial and infrastructure projects.

Electrical Contractors and Panel Builders

Suitable for contractors requiring an online UPS for automation panels, control rooms and critical electrical loads.

Frequently Asked Questions

1. What is the COSMIC+ MS+101U Online UPS?

The COSMIC+ MS+101U is a DSP-based, IGBT switching, double-conversion online UPS designed to provide regulated and uninterrupted power for critical industrial and commercial equipment.

2. What capacities are available in the MS+101U series?

The COSMIC+ MS+101U is available in capacities ranging from 5 kVA to 15 kVA. The appropriate capacity should be selected according to the connected load, starting current, required backup time and future expansion.

3. Is the MS+101U a single-phase UPS?

Yes. It has a single-phase input and a single-phase output. The specified input and output configuration is one phase, neutral and earth.

4. What is the rated input voltage?

The rated input voltage is 230 V AC single phase with a tolerance of plus or minus 10 percent.

5. What is the rated output voltage?

The rated output voltage is 230 V AC single phase with plus or minus 1 percent regulation.

6. What technology is used in this UPS?

The MS+101U uses DSP-based control, IGBT switching and double-conversion online UPS technology.

7. What type of output waveform does it provide?

The UPS provides a PWM sine wave output with total harmonic distortion specified at less than 3 percent.

8. What is the inverter efficiency of the MS+101U?

The specified inverter efficiency is more than 93 percent.

9. Does the UPS have an isolation transformer?

Yes. The MS+101U is specified with an inbuilt copper or aluminium isolation transformer.

10. What type of batteries are used?

The system is designed for SMF batteries. Depending on the selected DC configuration, it can use 12 V batteries in a 12-battery or 15-battery arrangement.

11. What are the available DC bus voltages?

The specified DC bus voltage options are 144 V DC and 180 V DC.

12. How long does the UPS provide backup?

The backup duration depends on the connected load, battery quantity, battery capacity, battery condition and selected UPS configuration. The required backup time should be confirmed before selecting the battery bank.

13. How long does the battery take to recharge?

The specified recharge time to reach full battery capacity is approximately 12 hours. Actual charging time can vary according to battery condition and discharge level.

14. Does the MS+101U support SNMP monitoring?

An SNMP communication port is available on request. It can be used with a compatible monitoring system for remote UPS supervision.

15. Does the UPS include a bypass facility?

A manual bypass switch is available, while a static bypass can be provided on request.

16. What information is shown on the display?

The display can show input voltage, output voltage, output current, frequency, DC voltage, battery percentage, load percentage and system fault conditions.

17. What electrical protections are available?

The UPS provides protection against output overload, short circuit, output under-voltage, output over-voltage, DC under-voltage, DC over-voltage, mains under-voltage, mains over-voltage and mains single phasing.

18. Can the MS+101U be used for industrial automation?

Yes. It can be used for compatible PLC systems, industrial computers, process controllers, automation panels, communication devices and monitoring equipment.

19. Is it suitable for servers and data centres?

Yes. The UPS is intended for critical applications such as data centres and server rooms. The capacity and battery bank must be selected according to the total connected load and required backup time.

20. What details are required before selecting this UPS?

The following information should be confirmed:

• Total connected load in watts or kVA
• Type of connected equipment
• Required backup duration
• Input voltage availability
• Starting or surge load
• Battery preference
• Installation location
• Communication requirement
• Bypass requirement
• Required quantity
