Multispan UTC-413P Temperature Controller | PID + TP + ON-OFF | J/K/PT-100 Input | SSR + Relay Output | 52x52mm
Multispan UTC-413P Temperature Controller – 52×52mm, PID + SSR, Relay 10A
Compact industrial temperature controller with J/K/PT-100 input, ON–OFF/TP/PID control, 10A relay + SSR output, and 52×52 mm panel size for OEM machines and process panels.
Customize
Share :

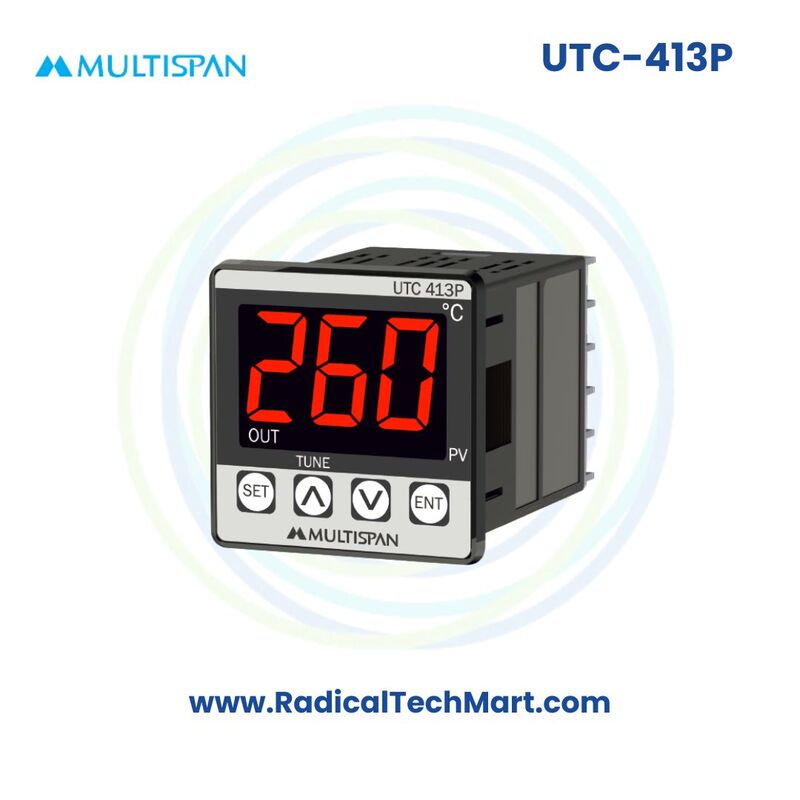

The Multispan UTC-413P is a compact universal temperature controller for OEM and industrial panels. It supports J/K thermocouples and PT-100 RTD sensors, offering ON–OFF, Time Proportional (TP), and auto-tuning PID control with relay + SSR outputs for heating or cooling applications.
Key Features
Supports J, K thermocouples and PT-100 RTD (2-wire / 3-wire, factory set)
Control modes: ON–OFF, Time Proportional (TP), Auto-tune PID
Dual outputs: 1× relay (10A, 230V AC) + 1× SSR drive (12V DC, 20mA)
Display resolution:
1°C for thermocouples
1°C or 0.1°C (PT.1) for PT-100
Dual display:
Upper: 3-digit Red/White, 0.63"
Lower: 3-digit Green, 0.30"
Wide supply options: 100–270V AC or 24V DC (optional)
Compact 52 × 52 mm front size; 45 × 45 mm panel cutout
Panel mount with front keys: SET, INC, DEC, ENT for quick configuration
Polycarbonate body with IP-rated front and LED indicators for status
Designed for continuous industrial duty in harsh environments
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Model | UTC-413P |
| Brand | Multispan |
| Sensor Inputs | J, K Thermocouple; PT-100 RTD (2W/3W, factory set) |
| Control Modes | ON–OFF, Time Proportional (TP), PID with Auto-Tune |
| Relay Output | 1 × Relay, 10A @ 230V AC |
| SSR Output | 12V DC, 20mA |
| Resolution | 1°C (TC), 1°C or 0.1°C (PT.1) |
| Display | Upper: 3-digit Red/White 0.63"; Lower: 3-digit Green 0.30" |
| Power Supply | 100–270V AC, 50/60 Hz; 24V DC (optional) |
| Mounting | Panel mount |
| Front Size | 52 × 52 mm |
| Panel Cutout | 45 × 45 mm |
| Body Material | Polycarbonate front, industrial-grade enclosure |
| User Interface | Keys: SET, INC, DEC, ENT; LED indicators |
| Operating Temperature | 0–55°C (typical) |
| Humidity | Up to 95% RH, non-condensing |
Applications
Packaging machinery temperature control
Plastic extrusion and thermoforming machines
Industrial ovens, incubators and dryers
Furnaces and small boilers
Food and pharma process equipment
General-purpose heating/cooling loops in small panels
What’s in the Box?
1 × Multispan UTC-413P Temperature Controller
Panel mounting clamps
Quick wiring diagram/label on unit
Basic user instruction sheet (as provided by OEM)
FAQ
Q1. What sensors are supported by UTC-413P?
J and K thermocouples and PT-100 RTD (2-wire / 3-wire), factory configured as per requirement.
Q2. What output options are available?
The controller has one 10A relay output and one SSR drive output (12V DC, 20mA). These can be used for heaters, contactors, or solid-state relays.
Q3. Is it suitable for both heating and cooling control?
Yes. The control action is configurable for heating, cooling, or alarm use.
Q4. What panel cutout is required?
A 45 × 45 mm cutout is required for the 52 × 52 mm front-size controller.
Q5. Does it support PID auto-tuning?
Yes. In PID mode, auto-tuning is available to optimize P, I, D, and cycle time parameters automatically.
Q6. Can it be used in compact panels?
Yes. The small 52 × 52 mm footprint is ideal for space-constrained OEM and machine panels.
