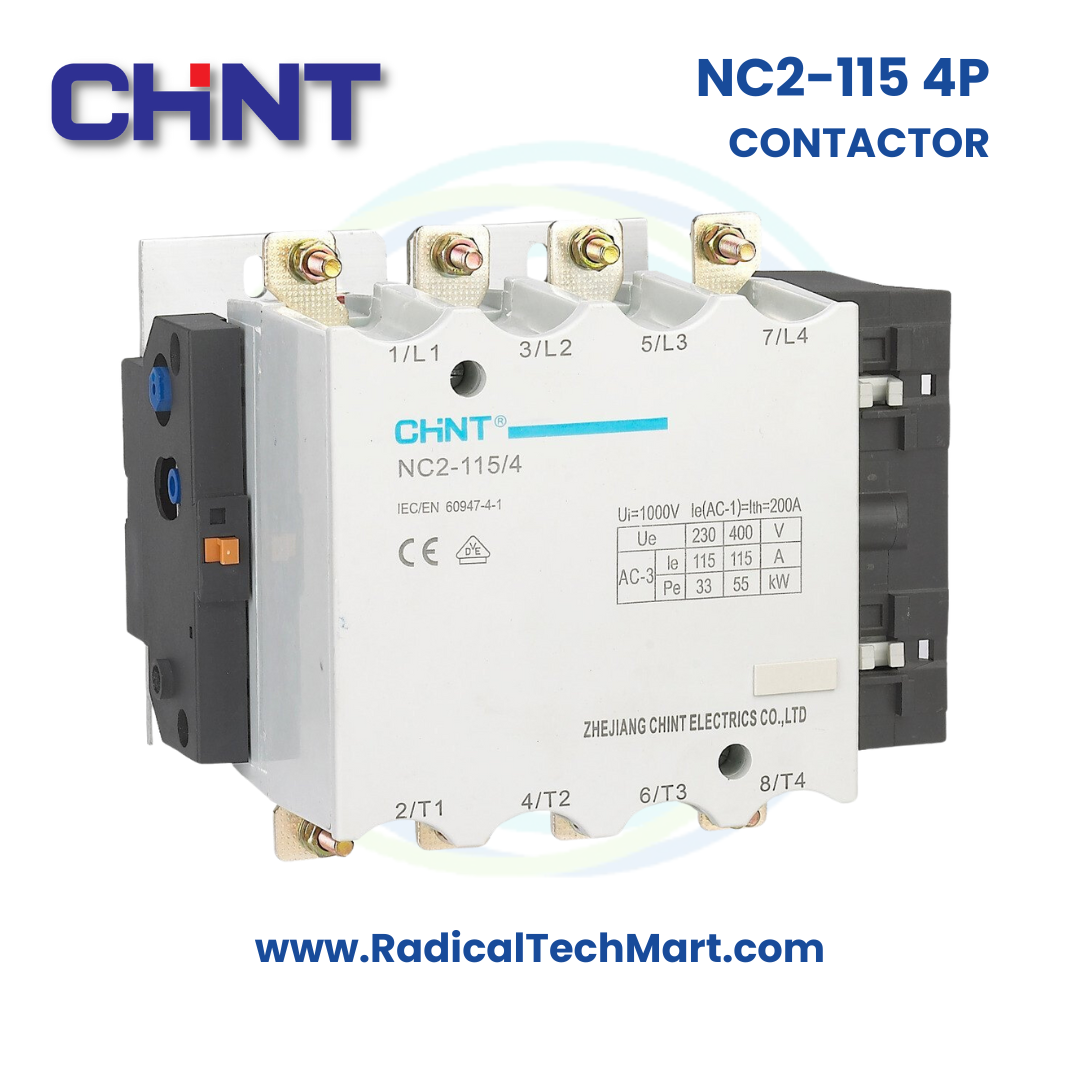

NC2-115 4P Contactor
Chint NC2-115 4P Power Contactor, 115A, AC Coil
Heavy-duty 4-pole power contactor for industrial motor and power control applications, with 115A AC-3 rating and up to 690V AC operating voltage. Available in multiple AC coil voltage options for flexible panel design.
Customize
Share :
Chint NC2-115 4P is a heavy-duty power contactor designed for switching and controlling motors, heaters, and other inductive loads in industrial panels. With a 115A AC-3 current rating and 4-pole configuration, it is suitable for reliable operation in motor starters, distribution boards, and control panels up to 690V AC, with multiple AC coil voltage options.
Key Features (Bulleted)
4-pole power contactor for three-phase and auxiliary load control
Rated operational current: 115A (AC-3), 200A (AC-1)
High operating voltage capacity up to 690V AC
Available in multiple AC coil voltages (110–127V, 220–240V, 380–415V)
4 NO main contacts for straightforward integration in motor circuits
Suitable for remote making and breaking of power circuits
DIN-rail and panel mounting options for flexible panel layout
Complies with IEC/EN 60947-4-1 for industrial control gear
Robust construction for continuous duty in harsh industrial environments
Technical Specifications (Table)
| Parameter | Value |
|---|---|
| Model | NC2-115 |
| Brand | Chint |
| Type | Power Contactor |
| Poles | 4-pole (4P) |
| Main Contact Configuration | 4 NO |
| Rated Operational Current (AC-3) | 115 A |
| Rated Operational Current (AC-1) | 200 A |
| Rated Operational Voltage | Up to 690 V AC |
| Coil Type | AC coil |
| Coil Voltage Options | 110–127V AC, 220–240V AC, 380–415V AC (varies by variant) |
| Utilization Category | AC-3 |
| Mounting | DIN rail / Panel mounting |
| Standard Compliance | IEC/EN 60947-4-1 |
| Application | Motor control, power distribution, heating & lighting loads |
| Approx. Product Dimensions (L×W×H) | ~14 × 12 × 12 cm (body only, approx.) |
| Approx. Weight | ~2.5–3.0 kg (approx.) |
Applications (Bulleted)
Motor starters and motor control centres (MCCs)
Industrial power distribution panels
HVAC systems and compressor control
Pump control panels and process equipment
Heating, lighting and resistive load switching
General purpose remote switching of power circuits
What’s in the Box?
1 × Chint NC2-115 4P Power Contactor (coil voltage as ordered)
Manufacturer’s datasheet / basic installation instructions (if supplied by OEM)
Packaging and labels
FAQ
Q1. Which coil voltages are available for Chint NC2-115 4P?
A1. The NC2-115 4P contactor is typically available in AC coil voltages like 110–127V, 220–240V, and 380–415V. Please confirm your required coil voltage before placing the order.
Q2. Can this contactor be used for 3-phase motor starting?
A2. Yes. With a 115A AC-3 rating and 4-pole configuration, it is suitable for 3-phase motor starting applications in MCCs and control panels, subject to proper selection as per motor current and duty.
Q3. Is it suitable for 690V AC systems?
A3. The rated operational voltage of the NC2-115 is up to 690V AC. Ensure coordination with upstream protection devices and follow OEM and panel design standards.
Q4. How is the contactor mounted in the panel?
A4. The NC2-115 supports both DIN rail and direct panel mounting. The actual method depends on your panel design and the mounting accessories used.
Q5. Does this contactor include auxiliary contacts?
A5. The main configuration is 4 NO power contacts. Auxiliary contacts, if required, are generally ordered as add-on blocks. Please contact us if you need specific auxiliary contact arrangements.
Q6. Is this contractor compliant with international standards?
A6. Yes, it conforms to IEC/EN 60947-4-1 standards for low-voltage switchgear and controlgear.
