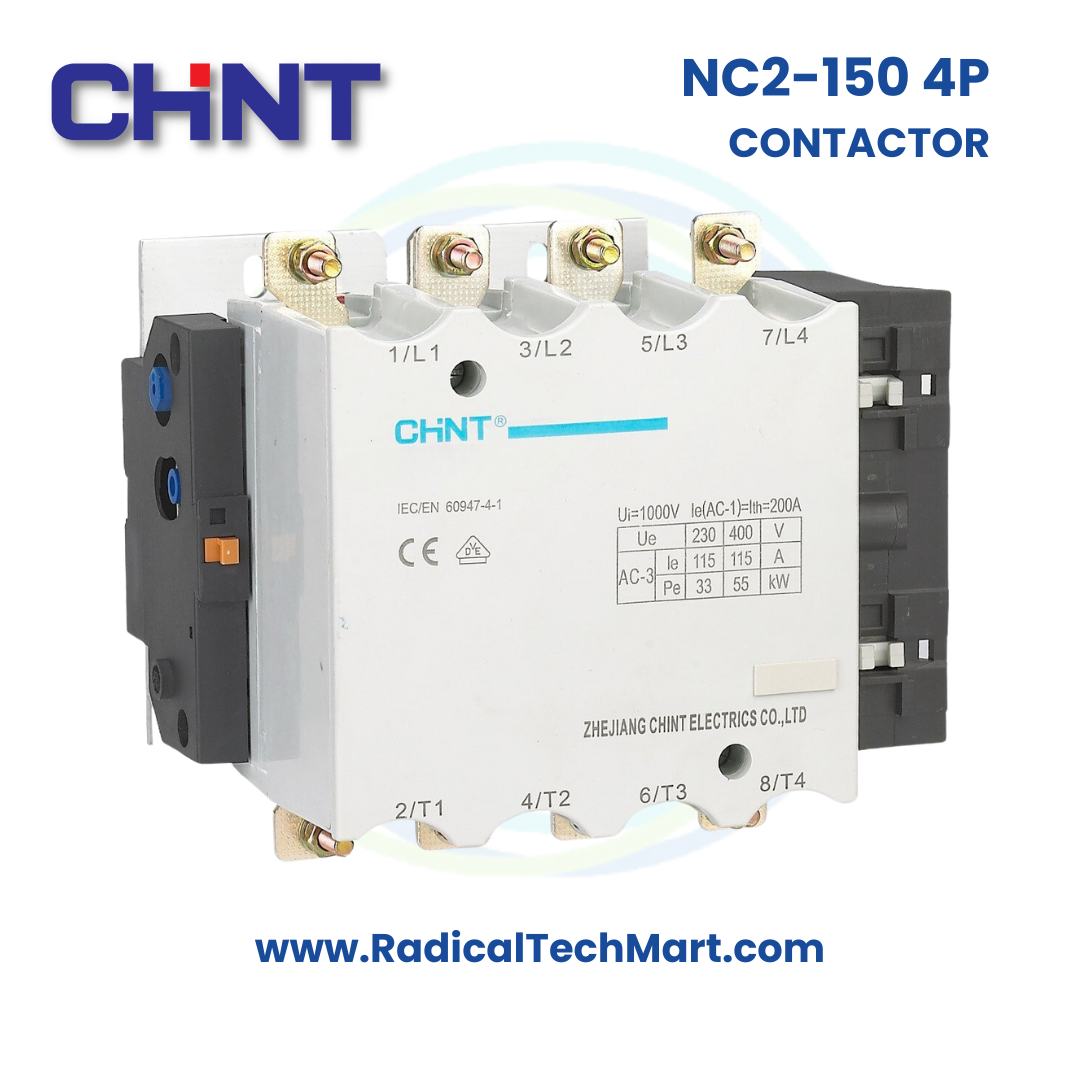

NC2-150 4P Contactor
Chint NC2-150 4P Power Contactor, 150A, 48V DC Coil
Customize
Share :
The Chint NC2-150 4P is a heavy-duty power contactor designed for switching and controlling motors and power circuits in industrial panels. With a 150A AC-3 current rating, 4-pole configuration, and rated operational voltage up to 690V, this model with a 48V DC coil is suitable for reliable operation in MCCs, pump panels, and process automation systems.
Key Features (Bulleted)
4-pole (4P) power contactor for heavy-duty industrial applications
Rated operational current: 150A (AC-3, 400V), up to 200A (AC-1)
Rated operational voltage (Ue) up to 690V AC
48V DC coil variant (AC coil versions also available in other models)
Utilization category AC-3 for motor starting and stopping
Long mechanical life: approx. 2–3 million operations
Electrical life (AC-3): approx. 0.8–1.2 million operations
Typically 4 NO main contacts for straightforward power wiring
Vertical or horizontal mounting on DIN rail or panel
Complies with IEC/EN 60947-4-1 for low-voltage switchgear and control gear
Technical Specifications (Table)
| Parameter | Value |
|---|---|
| Model | NC2-150 |
| Brand | Chint |
| Product Type | Power Contactor |
| Number of Poles | 4 Poles (4P) |
| Main Contact Configuration | 4 NO |
| Rated Current (AC-3, 400V) | 150 A |
| Rated Current (AC-1) | Up to 200 A |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
| Coil Type | DC coil (this variant); AC/DC versions available |
| Coil Voltage (this variant) | 48 V DC |
| Other Coil Voltage Options (family) | 110–127V, 220–240V, 380–415V AC; 110V, 220V DC |
| Rated Frequency | 50/60 Hz |
| Utilization Category | AC-3 / AC-1 |
| Mechanical Life | Approx. 2–3 million operations |
| Electrical Life (AC-3) | Approx. 0.8–1.2 million operations |
| Mounting Options | Vertical or horizontal; DIN rail/panel mounting |
| Standard Compliance | IEC/EN 60947-4-1 |
| Application | Motor starters, power distribution, process loads |
| Approx. Dimensions (L × W × H) | ~18 × 14 × 14 cm (body only, approx.) |
| Approx. Weight | ~3.5–4.0 kg (approx.) |
Applications (Bulleted)
Motor control centres (MCC) and industrial motor starters
Pump control panels and compressor control
HVAC and chiller plants
Power distribution panels for industrial loads
Process equipment, conveyors, and cranes
Switching off non-inductive or slightly inductive loads under AC-1 duty
What’s in the Box?
1 × Chint NC2-150 4P Power Contactor, 150A, 48V DC Coil
Manufacturer’s basic instruction/datasheet (if supplied by OEM)
Product label and packing
FAQ
Q1. What is the rated current of the Chint NC2-150 4P contactor?
A1. The NC2-150 is rated at 150A in AC-3 duty at 400V and up to 200A in AC-1 duty for non-inductive or slightly inductive loads.
Q2. Which coil voltage is supplied in this model on RadicalTechMart?
A2. This specific listing is for the 48V DC coil variant. Other coil voltages like 110–127V AC, 220–240V AC, and 380–415V AC or 110V/220V DC are available on request as separate models.
Q3. Can this contactor be used for 3-phase motor starting?
A3. Yes. With a 150A AC-3 rating and 4-pole configuration, it is suitable for heavy-duty three-phase motor starting and stopping, subject to proper selection and coordination with protection devices.
Q4. What standards does the NC2-150 comply with?
A4. The contactor conforms to IEC/EN 60947-4-1 standards for low-voltage switchgear and controlgear.
Q5. How is the contactor mounted in the panel?
A5. The NC2-150 can be mounted vertically or horizontally on a DIN rail or directly on the panel plate, depending on your panel layout and accessories.
Q6. What is the expected service life of this contactor?
A6. The mechanical life is typically in the range of 2–3 million operations, while the electrical life under AC-3 duty is around 0.8–1.2 million operations, depending on load and operating conditions.
