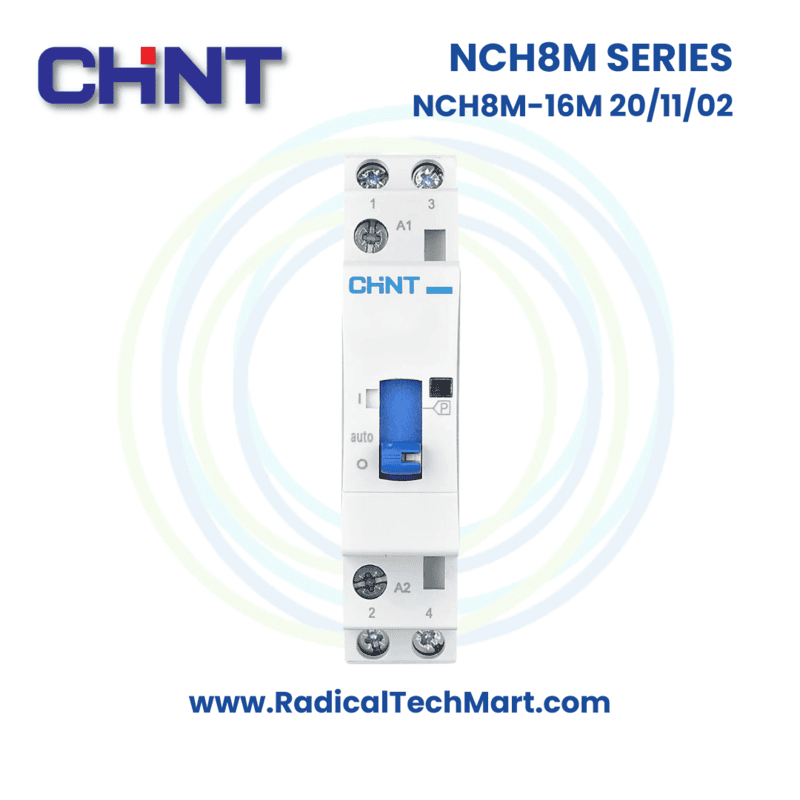

NCH8-16M 20/11/02 Contactor
The Chint NCH8-16M Contactor is a modular, manually operated AC contactor designed for various industrial control applications. It is engineered to handle AC loads with a frequency of 50/60Hz and offers a rated operating voltage of up to 400V, with current ratings ranging from 16A to 63A. Ideal for switching non-inductive or low-inductive loads such as domestic appliances, resistance furnaces, and similar applications, the NCH8-16M provides reliable operation in power control circuits.

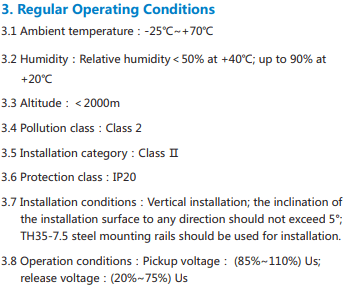

This contactor is suitable for both remote and manual operation and ensures effective control for systems with a rated control power voltage of AC24V, AC110V, and AC220-240V. It operates efficiently in environments with ambient temperatures ranging from -25°C to +70°C and can tolerate humidity up to 90% at +20°C. The unit is designed with an IP20 protection class and should be installed vertically on TH35-7.5 mounting rails, ensuring durability in various industrial settings.

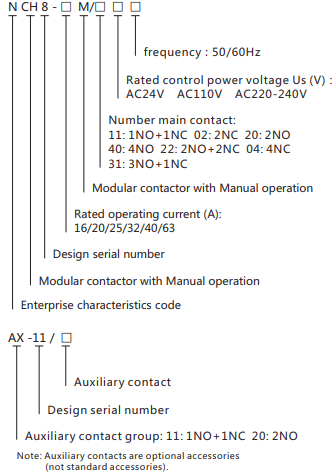

The NCH8-16M offers enhanced functionality with multiple contact configurations, including options like 1NO+1NC, 2NO, 2NC, and up to 4NO contacts. The product's main features include high mechanical and electrical durability, with up to 100,000 operations for mechanical life and 80,000 operations for electrical life, depending on usage. This contactor is a reliable solution for switching operations where manual intervention or control is needed, making it an excellent choice for various control systems
- NCH8-□M series Manual Modular AC contactor (here in after referred as contactor) is mainly used in power systems with AC 50Hz/60Hz, rated operating voltage up to 400V and rated operating current up to 63A. It is used as remote or manual switch for circuit control under AC-7a and AC-7b (non-inductive load or low-inductive load/resistance furnace,domestic appliance and low-inductive load of similar applications) application category. The contactor shall not be used for breaking short-circuit current, therefore it should be used with a proper short-circuit protection device.
