NCH8-20M 20/11/02 Contactor
₹1,365.00

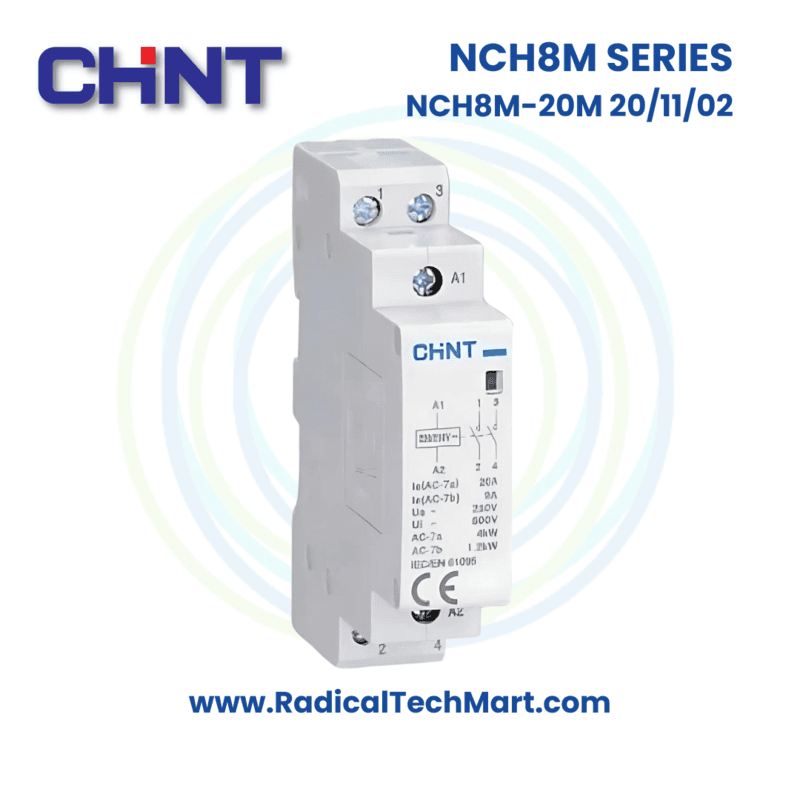

The Chint NCH8-20M 20/11/02 Contactor is a compact and reliable modular contactor designed for use in electrical control applications. It features:
- Coil Voltage: 230 VAC (50 Hz)
- Number of Poles: 2 (Double Pole)
- Contact Configuration: 2 Normally Open (NO)
- Rated Current: 20 Amps
- Protection Class: IP20, suitable for indoor use.
- Standards Compliance: Conforms to IEC/EN 61095, ensuring high performance and durability
Product Details
- NCH8-□M series Manual Modular AC contactor (here in after referred as contactor) is mainly used in power systems with AC 50Hz/60Hz, rated operating voltage up to 400V and rated operating current up to 63A. It is used as remote or manual switch for circuit control under AC-7a and AC-7b (non-inductive load or low-inductive load/resistance furnace,domestic appliance and low-inductive load of similar applications) application category. The contactor shall not be used for breaking short-circuit current, therefore it should be used with a proper short-circuit protection device.
