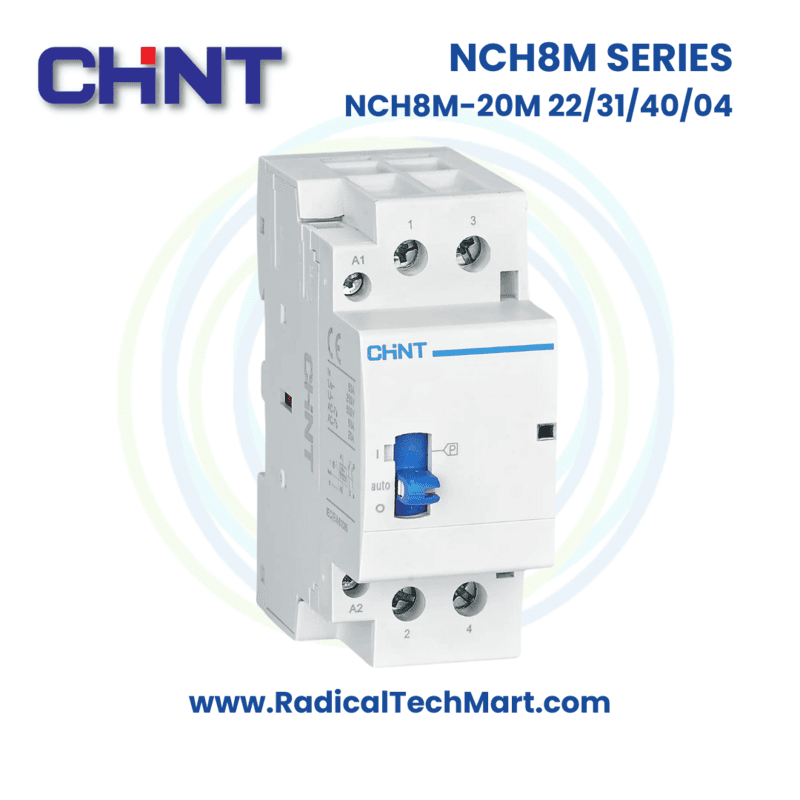

NCH8-20M 22/31/40/04 Contactor
₹2,055.00
The Chint NCH8-20M 22/31/40/04 Contactor is a reliable, modular AC contactor designed for controlling and switching electric circuits, typically in industrial and residential applications. It supports a wide range of current ratings, from 20A to 63A, and operates effectively on both 230V and 400V AC at 50/60Hz. This contactor is designed to handle various utilization categories, including AC-1, AC-7a, and AC-7b, making it suitable for use in general switching, as well as in motor control applications.
Key features of the NCH8-20M include:
- Current Ratings: Available in models for 20A, 25A, 40A, and 63A.
- Voltage: Operates on 230V or 400V AC.
- Utilization Categories: AC-1, AC-7a, AC-7b.
- Standards: Conforms to IEC/EN 61095 standards for safety and reliability.
- Auxiliary Contacts: Optional configurations, such as 1NO+1NC or 2NO contacts, provide versatile installation options for control and signaling purposes.
- Installation: Designed for vertical installation, with IP20 protection and the ability to mount on TH35-7.5 rails.
Product Details
- NCH8-□M series Manual Modular AC contactor (here in after referred as contactor) is mainly used in power systems with AC 50Hz/60Hz, rated operating voltage up to 400V and rated operating current up to 63A. It is used as remote or manual switch for circuit control under AC-7a and AC-7b (non-inductive load or low-inductive load/resistance furnace,domestic appliance and low-inductive load of similar applications) application category. The contactor shall not be used for breaking short-circuit current, therefore it should be used with a proper short-circuit protection device.
