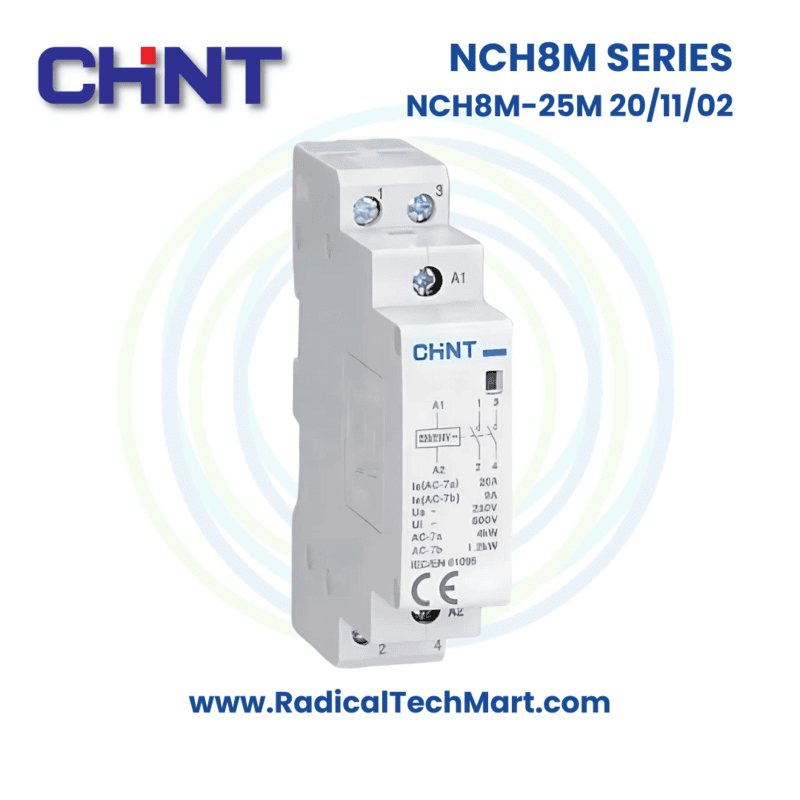

NCH8-25M 20/11/02 Contactor
₹1,515.00
The Chint NCH8-25M is a modular AC contactor designed for use in a variety of industrial applications. It is available in different configurations with nominal current ratings ranging from 20A to 63A, suitable for both 230V and 400V AC systems. The NCH8 series operates at frequencies of 50/60Hz and is ideal for both AC-1 (non-inductive loads) and AC-7a/b (inductive loads) utilization categories
Key features include:
- Voltage Ratings: Supports control voltages of AC 24V, AC 110V, and AC 220-240V, with a nominal operating voltage of 230V and 400V.
- Utilization Categories: The contactor is suitable for various applications, including AC-1, AC-7a, and AC-7b, meaning it can handle resistive loads and inductive loads such as motors and heating equipment
- Design: It features a modular design, making it easy to install on DIN rails. The NCH8 series is compact yet powerful, providing flexibility for various electrical control systems
- Durability: The contactor is built for long-lasting performance, with an electrical life rating of up to 80,000 cycles
Product Details
- NCH8-□M series Manual Modular AC contactor (here in after referred as contactor) is mainly used in power systems with AC 50Hz/60Hz, rated operating voltage up to 400V and rated operating current up to 63A. It is used as remote or manual switch for circuit control under AC-7a and AC-7b (non-inductive load or low-inductive load/resistance furnace,domestic appliance and low-inductive load of similar applications) application category. The contactor shall not be used for breaking short-circuit current, therefore it should be used with a proper short-circuit protection device.
