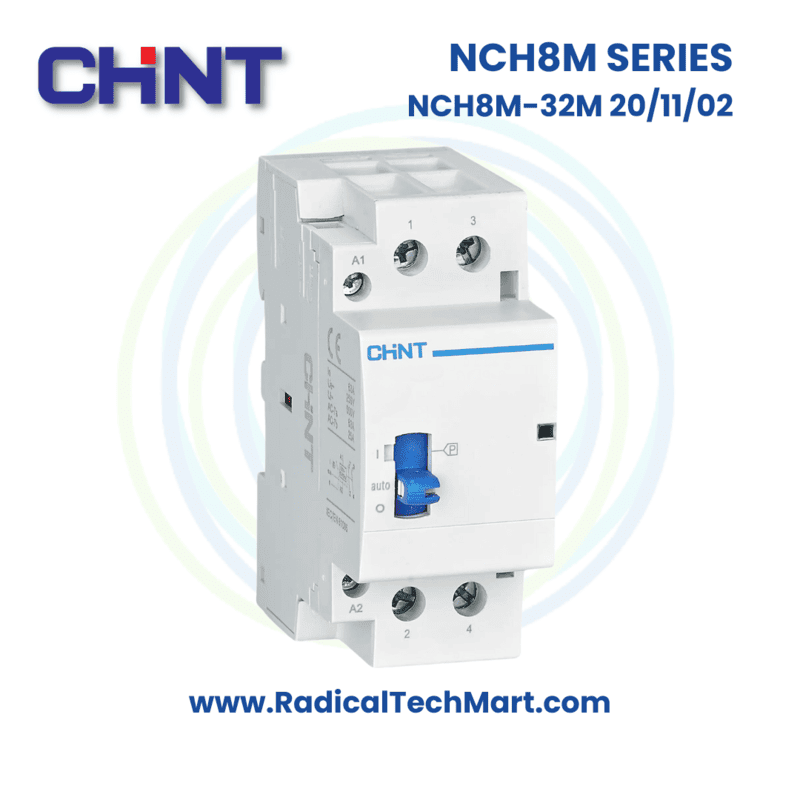

NCH8-32M 20/11/02 Contactor
₹2,025.00
The Chint NCH8-32M 20/11/02 is a modular AC contactor designed for use in domestic and industrial electrical circuits. This contactor is suitable for applications with an AC frequency of 50Hz/60Hz and rated operating voltage of up to 400V, supporting current ratings from 16A to 63A. It is typically employed as a remote or manual switching device for low-inductive or non-inductive loads like domestic appliances or resistance furnaces.
Key features of the NCH8-32M include:
- Manual Operation: Allows for direct manual control.
- Versatile Use: Suitable for both AC-7a and AC-7b categories, with a maximum insulation voltage of 500V and various contact configurations (e.g., 2NO, 1NO+1NC, etc.).
- Temperature and Humidity Tolerance: It operates within an ambient temperature range of -25°C to +70°C and can handle humidity levels up to 90% at +20°C.
- Protection and Installation: The contactor has an IP20 protection rating and can be mounted vertically on TH35-7.5 steel mounting rails, making it ideal for installation in various industrial environments
Product Details
- NCH8-□M series Manual Modular AC contactor (here in after referred as contactor) is mainly used in power systems with AC 50Hz/60Hz, rated operating voltage up to 400V and rated operating current up to 63A. It is used as remote or manual switch for circuit control under AC-7a and AC-7b (non-inductive load or low-inductive load/resistance furnace,domestic appliance and low-inductive load of similar applications) application category. The contactor shall not be used for breaking short-circuit current, therefore it should be used with a proper short-circuit protection device.
