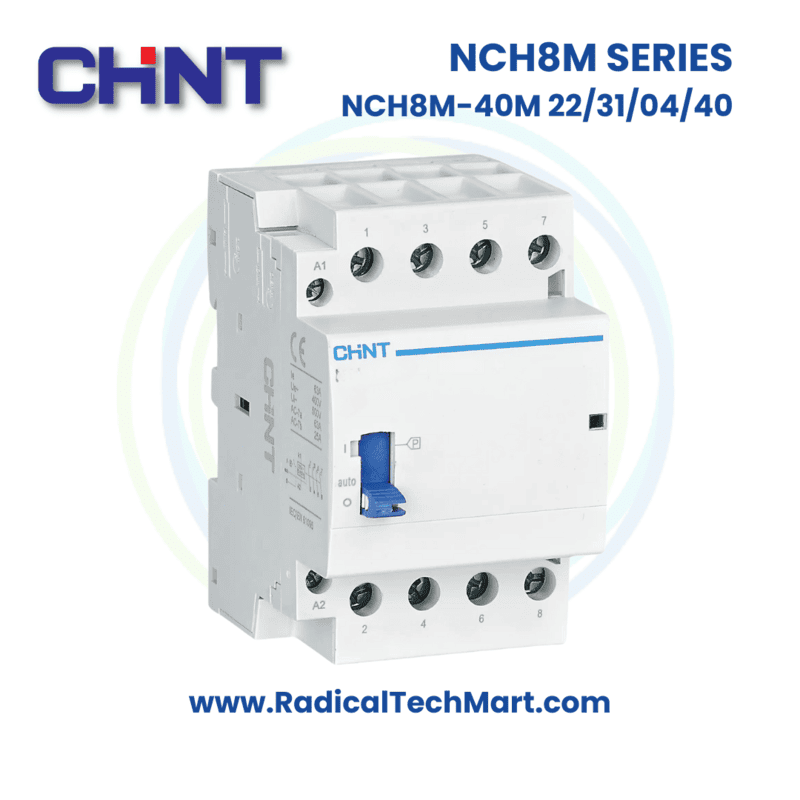

NCH8-40M 22/31/40/04 Contactor
₹3,935.00
Key Features:
- Rated Operating Voltage: 230V for 2-pole, 400V for 4-pole versions
- Rated Operating Current: 16A to 63A, depending on the model
- Electrical Life: 100,000 operations for AC-1/AC-7a categories
- Mechanical Life: 1 million operations
- Control Voltage: Available in 24V, 110V, and 220-240V
- Ambient Temperature Range: -25°C to +70°C
- Protection: IP20 rated enclosure
- Mounting: Suitable for vertical installation on TH35-7.5 steel mounting rails
Product Details
- NCH8-□M series Manual Modular AC contactor (here in after referred as contactor) is mainly used in power systems with AC 50Hz/60Hz, rated operating voltage up to 400V and rated operating current up to 63A. It is used as remote or manual switch for circuit control under AC-7a and AC-7b (non-inductive load or low-inductive load/resistance furnace,domestic appliance and low-inductive load of similar applications) application category. The contactor shall not be used for breaking short-circuit current, therefore it should be used with a proper short-circuit protection device.
