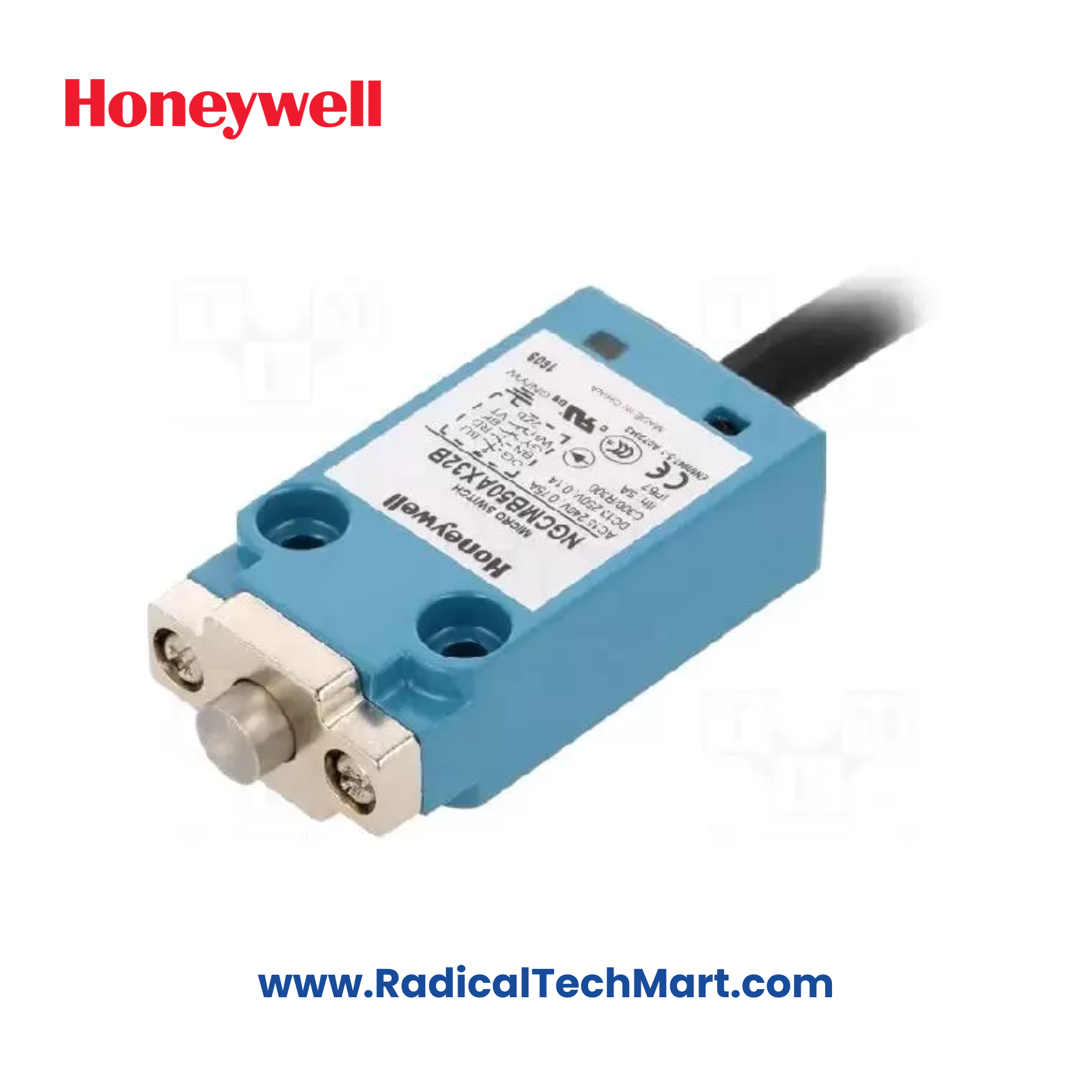

NGCMB50AX32B Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | NGCMB50AX32B |
| Sealing | NEMA 1, 4, 12, 13; IP67 per IEC 60529 suitable for outdoor applications |
| Contacts | snap action, positive break standard: silver alloy; gold: gold-plated |
| Operating temperature | -25°C to 75°C [ -13°F to 167°F] |
| Pollution degree | 3 |
| Humidity | 95 %RH max. |
| Operating speed | 0,3 mm/s to 2 m/s |
| Shock | 50 g for 11 ms as per IEC 60068-2-27; railway application, per IEC 61373 Class I Car B type |
| Approvals | UL (UL508), cUL, CE (IEC 60947-5-1), CCC (GB14048.5-2008) |
| Housing | Metal |
| Connection | Bottom exit |
| Cable Length | 5,0 m [16.4 ft] |
| Connector/Cable Exiting Housing | Standard cable |
| Connector at End of Cable | None |
| Switch Type | 2NC/2NO snap action gold contacts |
| Head Type | Pin plunger |
