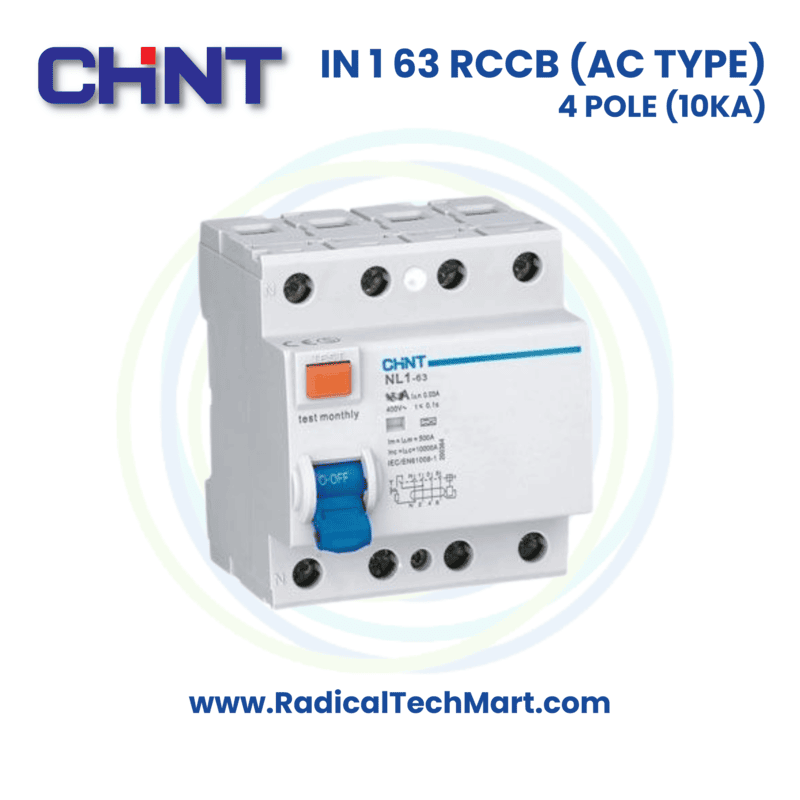

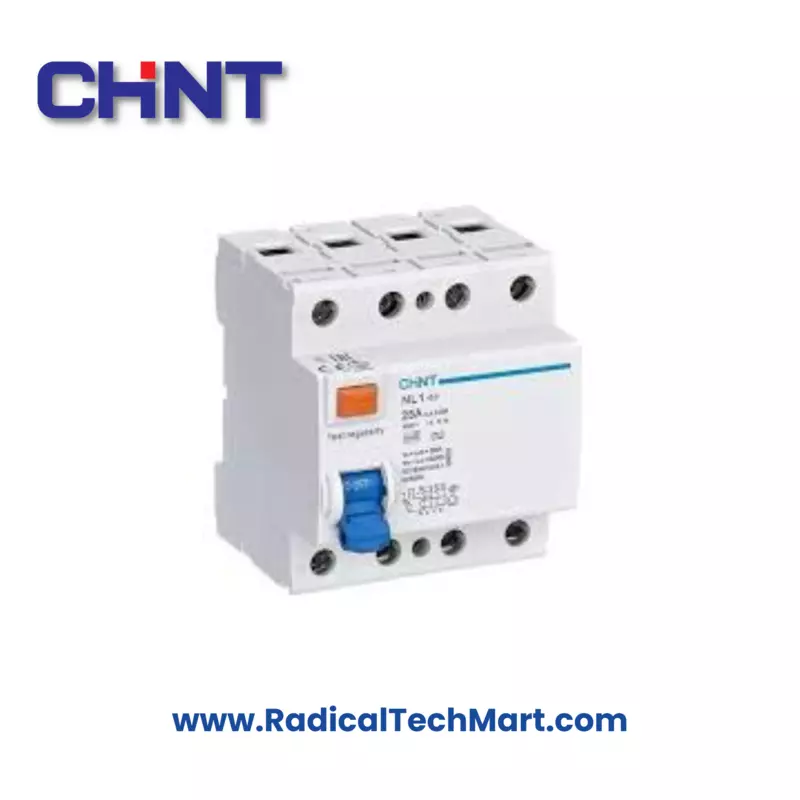

NI 1 RCCB 4 Pole 10kA (AC Type)

Product Summary:

The NI 1 RCCB is a high-performance residual current circuit breaker that ensures safety by disconnecting the circuit during earth leakage or overload conditions.

Key Features:

1. AC Type RCCB

2. Rated Current: 16A, 25A, 32A, 40A, 63A

3. Rated Voltage: 230/400V AC

4. Breaking Capacity: 10kA

5. Residual Current Sensitivity: 30mA, 100mA, 300mA

6. Electromagnetic & Thermal Tripping Mechanism

7. Compliant with IEC/EN 61008 standards

8. DIN rail mounting

9. Double Pole (DP) & Four Pole (FP) Options



Applications:

1. Residential electrical systems

2. Commercial buildings and offices

3. Industrial machines and equipment

4. Power distribution boards



Product Benefits:

1. Enhanced safety against electrical leakage

2. High breaking capacity for reliable protection

3. Easy installation with DIN rail mounting

4. Available in multiple current ratings for versatile use

5. Dual pole options for different applications

6. Compliance with international safety standards



FAQs:

Q1: What is the difference between Double Pole and Four Pole RCCBs?
A1: Double Pole RCCBs are suitable for single-phase circuits, while Four Pole RCCBs are used in three-phase circuits for more comprehensive protection.

Q2: What is the breaking capacity of this RCCB?
A2: The NI 1 RCCB 4 Pole 10kA has a breaking capacity of 10kA, providing robust protection against short circuits and overloads.

Q3: What applications are suitable for the NI 1 RCCB?
A3: This RCCB is ideal for residential, commercial, and industrial electrical installations, protecting against earth leakage and ensuring circuit safety.
