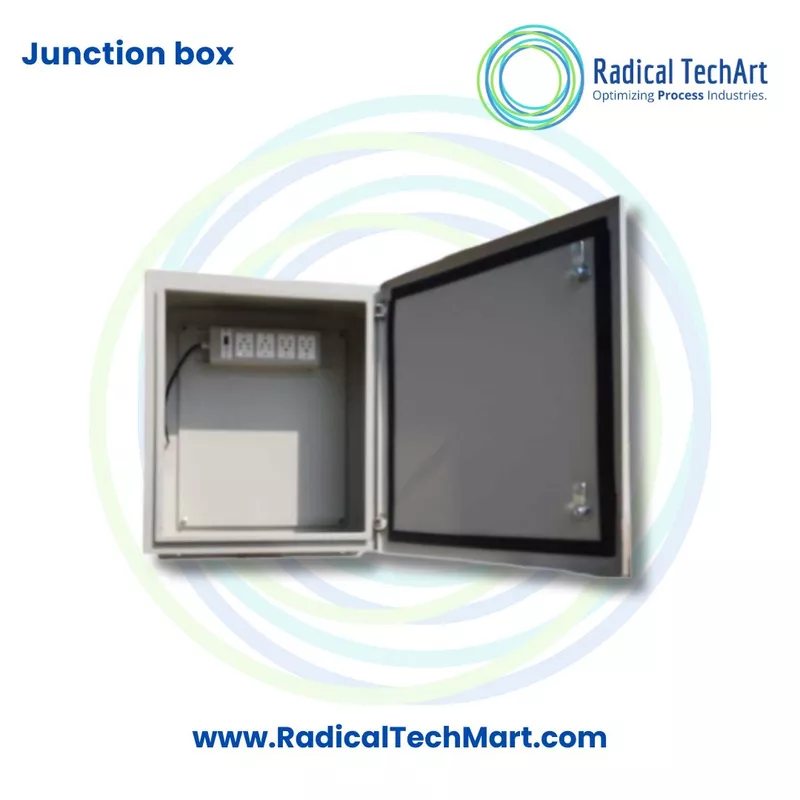

Pole and Wall Mount Outdoor Junction Box for Industrial Use

A. Product Overview

The Pole and Wall Mount Outdoor Junction Box is designed to protect and organize electrical connections, wiring and control components in indoor and outdoor environments. Its robust construction makes it suitable for factories, commercial buildings, outdoor facilities and infrastructure installations where electrical equipment requires protection from rain, dust, humidity and unauthorized access.

The enclosure can be manufactured using galvanized steel or stainless steel, providing strength, corrosion resistance and long service life. Its versatile mounting arrangement allows installation on a wall, pole or other suitable supporting structure.

Main Features

• Heavy-duty galvanized steel or stainless-steel construction
• Weather-resistant and corrosion-resistant enclosure
• IP-rated design for protection against rain, dust and humidity
• Suitable for pole mounting and wall mounting
• Cable entry and exit plate on the bottom side
• Welded wall-mounting clamps
• Additional pole-mounting clamp
• Heavy-duty internal mounting plate
• Provision for installing a cooling fan
• Universal lock and key arrangement
• Spacious interior for organized wiring
• Available in multiple sizes for different installation requirements

B. Working Principle

The Pole and Wall Mount Outdoor Junction Box functions as a protective enclosure for electrical connections, terminals, cables and control components.

Incoming and outgoing cables are routed through the cable entry and exit plate located at the bottom of the enclosure. Electrical terminals, relays, power supplies, controllers or other compatible components can be installed on the heavy-duty internal mounting plate. The wiring is then arranged inside the enclosure to keep connections protected and organized.

The outer metal enclosure creates a physical barrier between the installed components and external conditions such as dust, rain, moisture, accidental contact and unauthorized access. The lock and key mechanism keeps the enclosure securely closed during normal operation.

The box can be secured to a wall using the welded wall-mounting clamps or installed on a pole using the additional pole-mounting clamp. A cooling fan can also be installed when the enclosed equipment produces heat and requires ventilation.

C. Why Is a Pole and Wall Mount Outdoor Junction Box Used?

Protects Electrical Connections

The enclosure protects wiring, terminals and electrical components from environmental exposure, accidental contact and physical damage.

Provides Weather Protection

Its IP-rated and corrosion-resistant construction helps protect internal equipment from rain, dust and humidity, making it suitable for outdoor installations.

Improves Electrical Safety

The junction box isolates exposed electrical connections and helps reduce the risk of short circuits, electrical fires and other potential hazards.

Organizes Wiring

The spacious interior and internal mounting plate allow cables, terminals and electrical devices to be arranged systematically. This reduces clutter and makes inspection and maintenance easier.

Supports Flexible Installation

The enclosure can be mounted on a pole or wall, allowing it to be installed near machinery, CCTV cameras, outdoor lighting systems, telecom equipment or other field devices.

Prevents Unauthorized Access

The universal lock and key arrangement helps restrict access to electrical wiring and installed components.

Accommodates Different Applications

Multiple size options allow the enclosure to support small electrical connections as well as larger control and power distribution arrangements.

Supports Equipment Cooling

Provision for a cooling fan allows ventilation to be added when heat-generating electrical or electronic components are installed inside the box.

D. Suitable Buyers

The Pole and Wall Mount Outdoor Junction Box is suitable for:

• Industrial manufacturing companies
• Electrical contractors
• Electrical panel builders
• Industrial automation system integrators
• CCTV surveillance installers
• Telecommunications companies
• Internet and networking infrastructure providers
• Power distribution contractors
• Outdoor lighting contractors
• HVAC installation and maintenance companies
• Commercial building contractors
• Factory maintenance departments
• Warehouse and logistics facilities
• Infrastructure development companies
• Solar power and renewable-energy installers
• Original equipment manufacturers
• Government and municipal infrastructure projects
• Process plants and utility facilities

The product is specifically suitable for CCTV surveillance and control, industrial machinery control, power distribution, outdoor lighting, HVAC systems, telecommunications infrastructure and commercial electrical installations.

Frequently Asked Questions

1. What is a Pole and Wall Mount Outdoor Junction Box?

A Pole and Wall Mount Outdoor Junction Box is a protective enclosure used to house electrical wiring, terminals, connections and compatible control components. It can be installed on a wall or pole according to the site requirement.

2. Is this junction box suitable for outdoor use?

Yes. The enclosure has an IP-rated, weather-resistant design intended to protect internal equipment from rain, dust and humidity.

3. What materials are used to manufacture the junction box?

The junction box can be manufactured using galvanized steel or stainless steel for strength, corrosion resistance and long-term durability.

4. Can the junction box be mounted on a pole?

Yes. An additional pole-mounting clamp is provided for installing the enclosure on a suitable pole.

5. Can it also be installed on a wall?

Yes. The enclosure is equipped with welded wall-mounting clamps for secure wall installation.

6. Where are the cables entered into the junction box?

The enclosure includes a cable entry and exit plate on the bottom side for routing incoming and outgoing cables.

7. Does the junction box include an internal mounting plate?

Yes. It includes a heavy-duty mounting plate for installing compatible terminals, relays, controllers and other electrical or electronic components.

8. Does the enclosure have a locking arrangement?

Yes. The junction box is equipped with a universal lock and key to help prevent unauthorized access.

9. Is there provision for a cooling fan?

Yes. The enclosure includes provision for installing a cooling fan when ventilation is required for the internal components.

10. What applications are suitable for this junction box?

It is suitable for CCTV surveillance and control systems, industrial machinery, power distribution systems, outdoor lighting, HVAC systems, telecommunications infrastructure and commercial electrical installations.

11. Can this junction box be used for CCTV installations?

Yes. It can protect CCTV power supplies, terminals, cable connections, communication devices and related control components in outdoor surveillance installations. CCTV surveillance and control is one of the applications listed by the manufacturer.

12. Can it be used near industrial machinery?

Yes. The junction box can be installed near machinery to house electrical connections, control terminals and compatible automation components. Industrial machinery control is listed as a suitable application.

13. Is the junction box available in different sizes?

Yes. The manufacturer states that multiple size options are available to accommodate different installation and equipment requirements.

14. Does the junction box protect against corrosion?

Yes. Its galvanized steel or stainless-steel construction is designed to provide corrosion resistance for demanding indoor and outdoor environments.

15. Can it be used for telecommunications equipment?

Yes. The enclosure is suitable for protecting connections and compatible equipment used in telecommunications infrastructure.

16. Can it be used for outdoor lighting systems?

Yes. It can house electrical connections, terminals and control components used in outdoor lighting installations.

17. Can it be used for power distribution?

Yes. The enclosure can be used for organized and protected electrical connections in compatible power distribution systems. The internal component selection must match the voltage, current and safety requirements of the application.

18. What should be confirmed before ordering?

Before ordering, buyers should confirm the required enclosure dimensions, mounting method, material, IP protection level, number and size of cable entries, internal mounting requirements, cooling requirement, installation environment and quantity.
