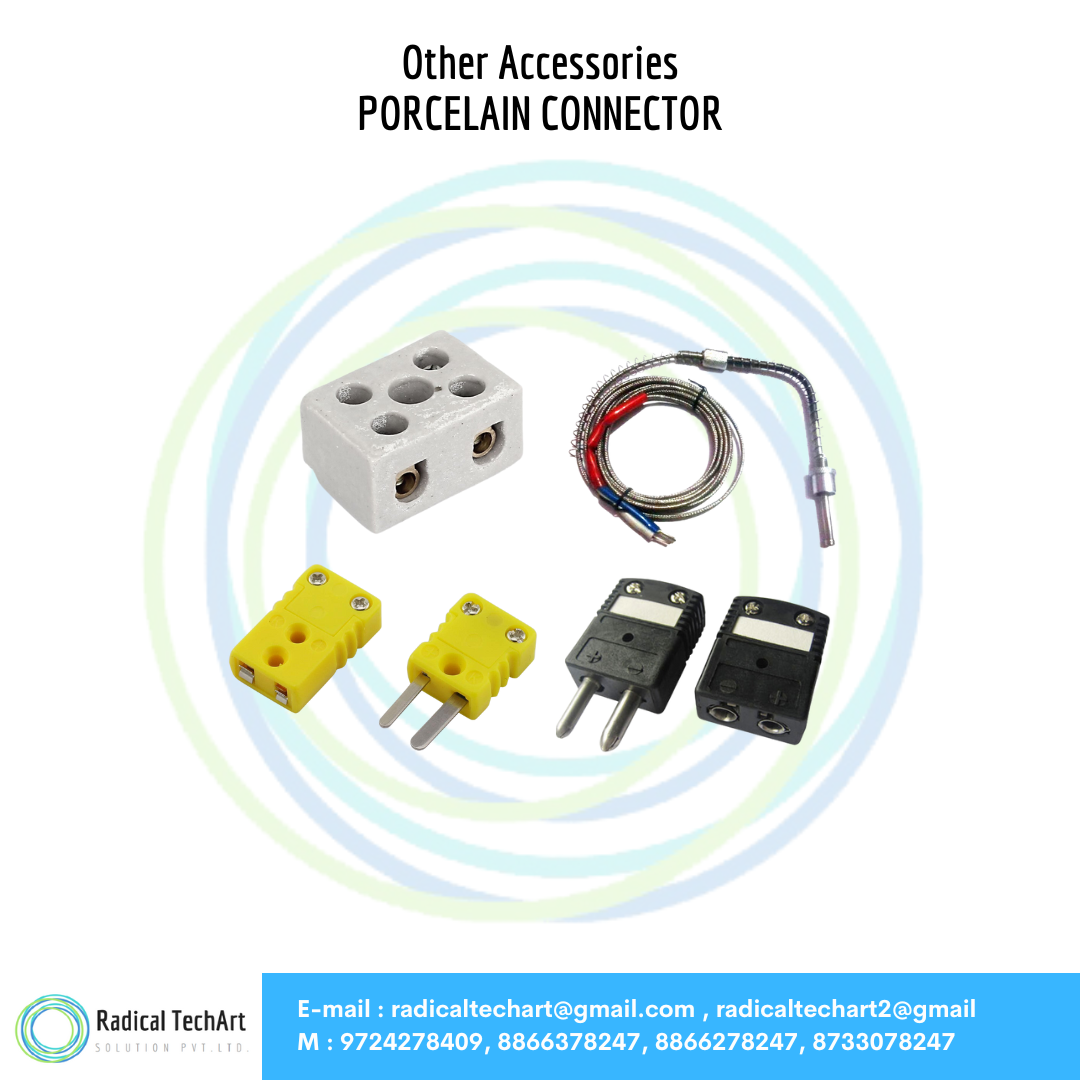

Porcelain Connector for High Temperature Electrical Wiring

A. Product Overview

Porcelain connectors are specialized electrical components made from high-temperature porcelain material. They are commonly used as ceramic terminal blocks for joining electrical conductors safely in areas where normal plastic connectors may fail due to heat.

These connectors provide secure and insulated electrical connections in industrial, commercial and residential applications. The porcelain body offers excellent heat resistance, electrical insulation and long service life, making it suitable for high-temperature wiring environments.

Porcelain connectors are widely used near heaters, ovens, furnaces, switch cabinets, control panels and other heat-prone electrical installations. They are available in different sizes and can also be developed as per customer requirements.

B. Working Principle

A porcelain connector works by mechanically holding and electrically connecting two or more wires through a terminal arrangement inside a porcelain body.

The conductor wires are inserted into the connector and tightened using screws or terminal contacts. Once tightened, the connector creates a firm electrical connection between the wires. The porcelain body acts as an insulating barrier around the live connection.

Porcelain is used because it can withstand higher temperatures compared to standard plastic materials. It also helps prevent electrical leakage, short circuits and damage caused by heat, wear and mechanical stress. This makes the connector safe and reliable for high-temperature electrical wiring.

C. Why It Is Used

Porcelain connectors are used where heat resistance and electrical safety are important. In applications such as heaters, furnaces, ovens and switch cabinets, regular plastic connectors may soften, melt or become unsafe. Porcelain connectors solve this problem by providing a heat-resistant and electrically insulated connection point.

They are also used because they offer durability, resistance to wear and tear, and protection against heat stress. Their strong insulating properties help maintain safe electrical connections even in demanding industrial environments.

Porcelain connectors are preferred in applications where long-term reliability, high-temperature performance and safe wire termination are required.

D. Suitable Buyers

Porcelain connectors are suitable for:

Electrical contractors.

Panel builders.

Heater manufacturers.

Oven and furnace manufacturers.

Industrial maintenance teams.

Switch cabinet manufacturers.

Machine manufacturers.

Electrical wholesalers and traders.

HVAC equipment manufacturers.

Commercial and residential electrical installers.

Industries using high-temperature electrical wiring.

Purchase teams looking for ceramic terminal blocks and heat-resistant connectors.

Key Features

Made from high-temperature porcelain material.

Provides excellent electrical insulation.

Suitable for high-heat environments.

Offers safe and secure wire connection.

Resistant to wear, tear and heat stress.

Suitable for industrial, commercial and residential applications.

Used around heaters, switch cabinets and electrical panels.

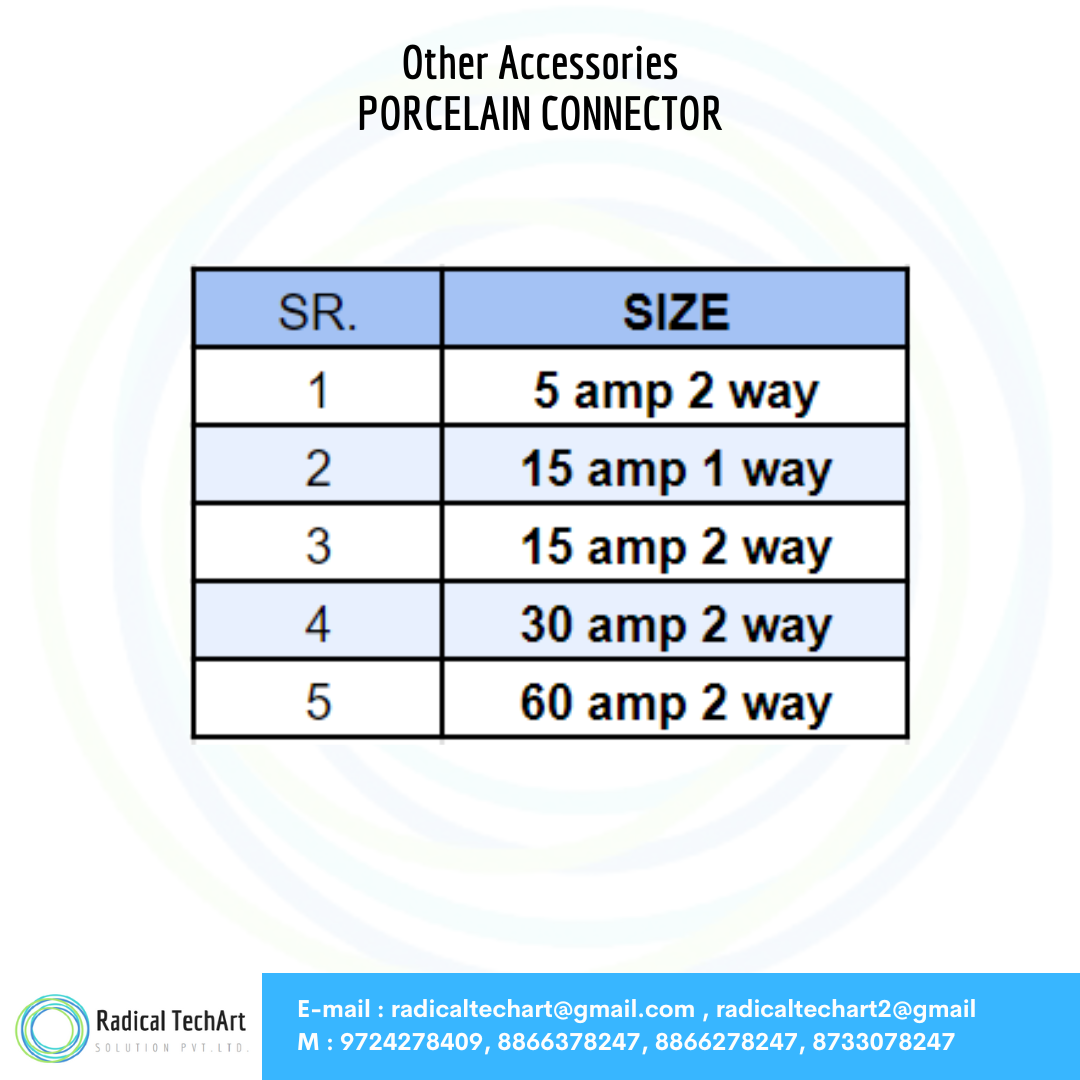

Available in different sizes.

Can be developed as per customer requirement.

Durable construction for long service life.

Applications

Industrial heater wiring.

Electrical control panels.

Switch cabinets.

Furnace wiring.

Oven wiring.

High-temperature machinery.

Commercial electrical installations.

Residential electrical wiring where heat is a factor.

Electrical conductor joining.

Heat-resistant terminal connections.

Machine wiring and equipment wiring.

FAQ

1. What is a porcelain connector?

A porcelain connector is a ceramic electrical connector used to join electrical wires safely. It is made from porcelain material, which provides high-temperature resistance and electrical insulation.

2. Where are porcelain connectors used?

Porcelain connectors are used in heaters, ovens, furnaces, switch cabinets, electrical panels, industrial machines and other high-temperature wiring applications.

3. Why is porcelain used in electrical connectors?

Porcelain is used because it provides strong electrical insulation and can withstand high temperatures better than many plastic materials. This makes it suitable for heat-prone electrical applications.

4. Are porcelain connectors suitable for heater wiring?

Yes, porcelain connectors are commonly used for heater wiring because they can handle heat better than standard plastic connectors.

5. Can porcelain connectors be used in industrial panels?

Yes, porcelain connectors can be used in industrial panels, switch cabinets and control panels where safe and insulated wire connection is required.

6. Are porcelain connectors heat resistant?

Yes, porcelain connectors are designed for high-temperature applications and provide resistance to heat stress.

7. Are these connectors safe for electrical wiring?

Yes, porcelain connectors provide secure electrical connection and insulation, helping reduce the risk of short circuits, electrical leakage and heat-related connector failure.

8. What are the main benefits of porcelain connectors?

The main benefits are heat resistance, electrical safety, durability, insulation, resistance to wear and tear, and reliable wire connection in demanding environments.

9. Can porcelain connectors be made in different sizes?

Yes, porcelain connectors are available in different sizes and can also be developed as per customer requirement.

10. Who should buy porcelain connectors?

Porcelain connectors are suitable for electrical contractors, panel builders, heater manufacturers, industrial maintenance teams, machine manufacturers and electrical product suppliers.
