A. Product Overview

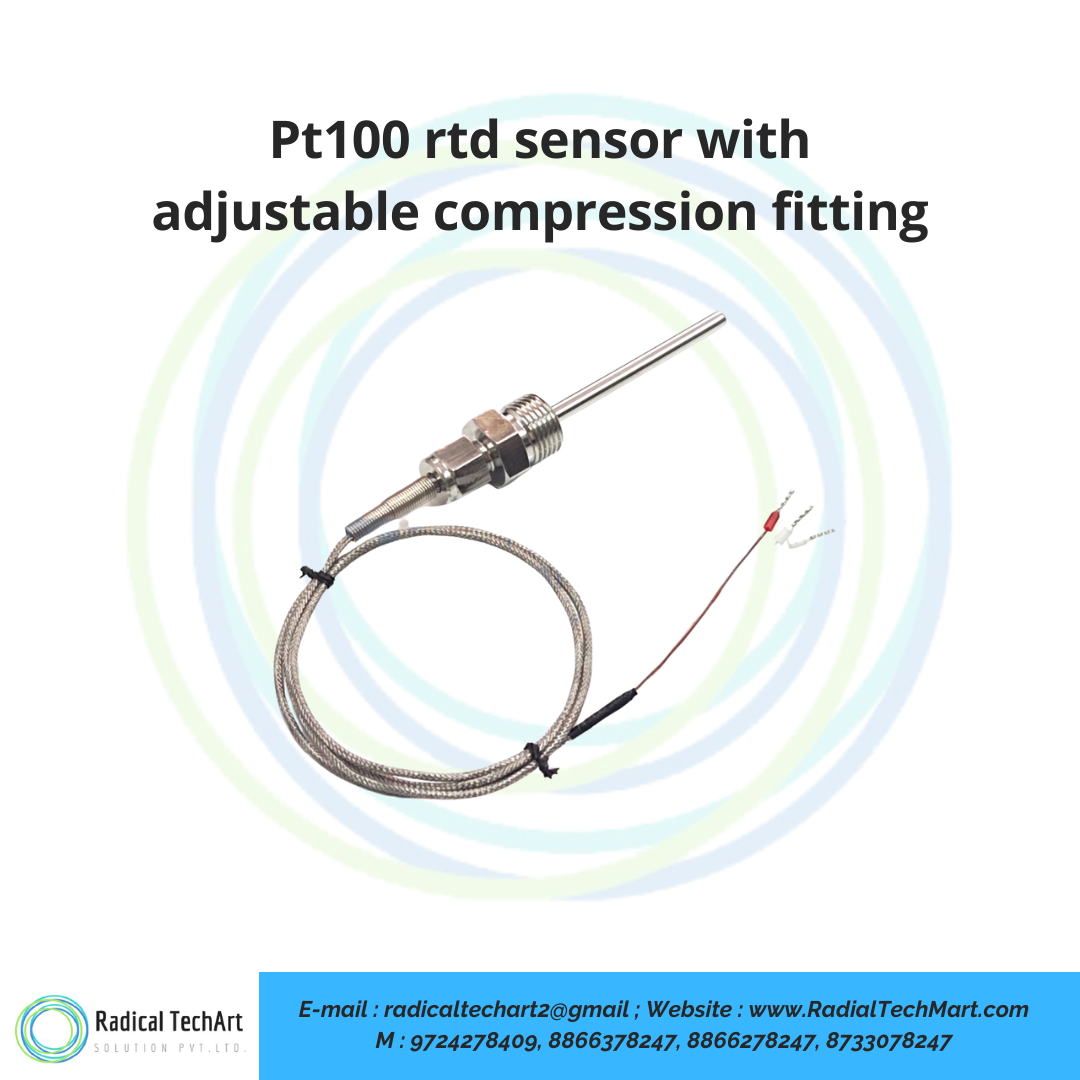

A Pt100 RTD sensor with adjustable compression fitting is a reliable temperature sensor used for precise temperature measurement in industrial and process applications. It uses a platinum sensing element to detect temperature changes and provides stable, accurate and repeatable readings.

The adjustable compression fitting makes the sensor easy to install at the required insertion depth. It can be fitted into pipes, tanks, vessels, machinery or other equipment where temperature monitoring is required. This design is especially useful when the sensor position needs to be adjusted according to the process requirement.

Pt100 RTD sensors are widely used because they offer better accuracy and long-term stability compared to many basic temperature sensors. The compression fitting provides mechanical support and helps hold the sensor firmly at the measurement point.

B. Working Principle

The Pt100 RTD sensor works on the principle that the electrical resistance of platinum changes with temperature. In a Pt100 sensor, the resistance is 100 ohms at 0 degree Celsius. As the temperature increases, the resistance of the platinum element also increases in a predictable manner.

This resistance change is measured by a temperature indicator, controller, transmitter or PLC system and converted into a temperature reading. Because platinum has a stable and repeatable resistance-temperature relationship, Pt100 RTD sensors are suitable for accurate industrial temperature measurement.

The adjustable compression fitting allows the sensor probe to be inserted into the process at the required depth. Once the correct position is achieved, the fitting is tightened to hold the sensor securely in place.

C. Why It Is Used

A Pt100 RTD sensor with adjustable compression fitting is used when accurate temperature monitoring is required along with flexible installation. It helps users measure temperature in different process points without needing fixed-length or permanently mounted sensors.

It is used for:

• Accurate temperature measurement in industrial processes
• Flexible installation in pipes, tanks and machines
• Easy adjustment of sensor insertion depth
• Quick replacement or relocation of the sensor
• Stable temperature monitoring in process equipment
• Better control of heating, cooling and production systems
• Reducing installation time and maintenance effort

This sensor is suitable for applications where the measurement point may change or where the required insertion depth needs to be adjusted during installation.

D. Suitable Buyers

This product is suitable for:

• Industrial automation companies
• Panel builders
• Machine manufacturers
• Process industries
• Chemical plants
• Pharmaceutical companies
• Food and beverage industries
• Packaging machine manufacturers
• HVAC system manufacturers
• Water treatment plants
• OEMs and system integrators
• Maintenance teams
• Instrumentation engineers
• Purchase managers looking for industrial temperature sensors

FAQ

1. What is a Pt100 RTD sensor?

A Pt100 RTD sensor is a temperature sensor that uses a platinum element to measure temperature. It has a resistance of 100 ohms at 0 degree Celsius and is known for accuracy, stability and repeatable performance.

2. What is the use of an adjustable compression fitting in a Pt100 RTD sensor?

The adjustable compression fitting allows the sensor probe to be installed at the required depth. It helps in easy mounting, adjustment, removal and replacement of the sensor without major changes to the process setup.

3. Where can a Pt100 RTD sensor with adjustable compression fitting be used?

It can be used in pipelines, tanks, vessels, machines, heating systems, cooling systems, process equipment and industrial automation applications where temperature measurement is required.

4. Why is Pt100 preferred for industrial temperature measurement?

Pt100 sensors are preferred because they provide high accuracy, good stability and reliable long-term temperature measurement. They are suitable for many industrial and process control applications.

5. Can the sensor insertion depth be adjusted?

Yes, the adjustable compression fitting allows the insertion depth of the sensor to be changed as per the installation requirement. This makes the sensor flexible for different process connections.

6. Is this sensor suitable for tanks and pipelines?

Yes, this sensor is suitable for both tanks and pipelines. The adjustable fitting helps position the sensor correctly inside the process for better temperature sensing.

7. Can this Pt100 RTD sensor be connected to a temperature controller?

Yes, it can be connected to a temperature controller, indicator, transmitter, data logger or PLC system depending on the wiring type and application requirement.

8. Who should buy this Pt100 RTD sensor?

This sensor is suitable for OEMs, machine builders, automation companies, process industries, maintenance teams, instrumentation engineers and purchase departments looking for accurate industrial temperature sensors.

9. Is this sensor easy to replace?

Yes, the compression fitting design allows easy removal and replacement of the sensor without dismantling the complete process connection.

10. What are the main benefits of this sensor?

The main benefits are accurate temperature measurement, adjustable installation depth, easy mounting, reliable performance, process flexibility and suitability for industrial applications.
