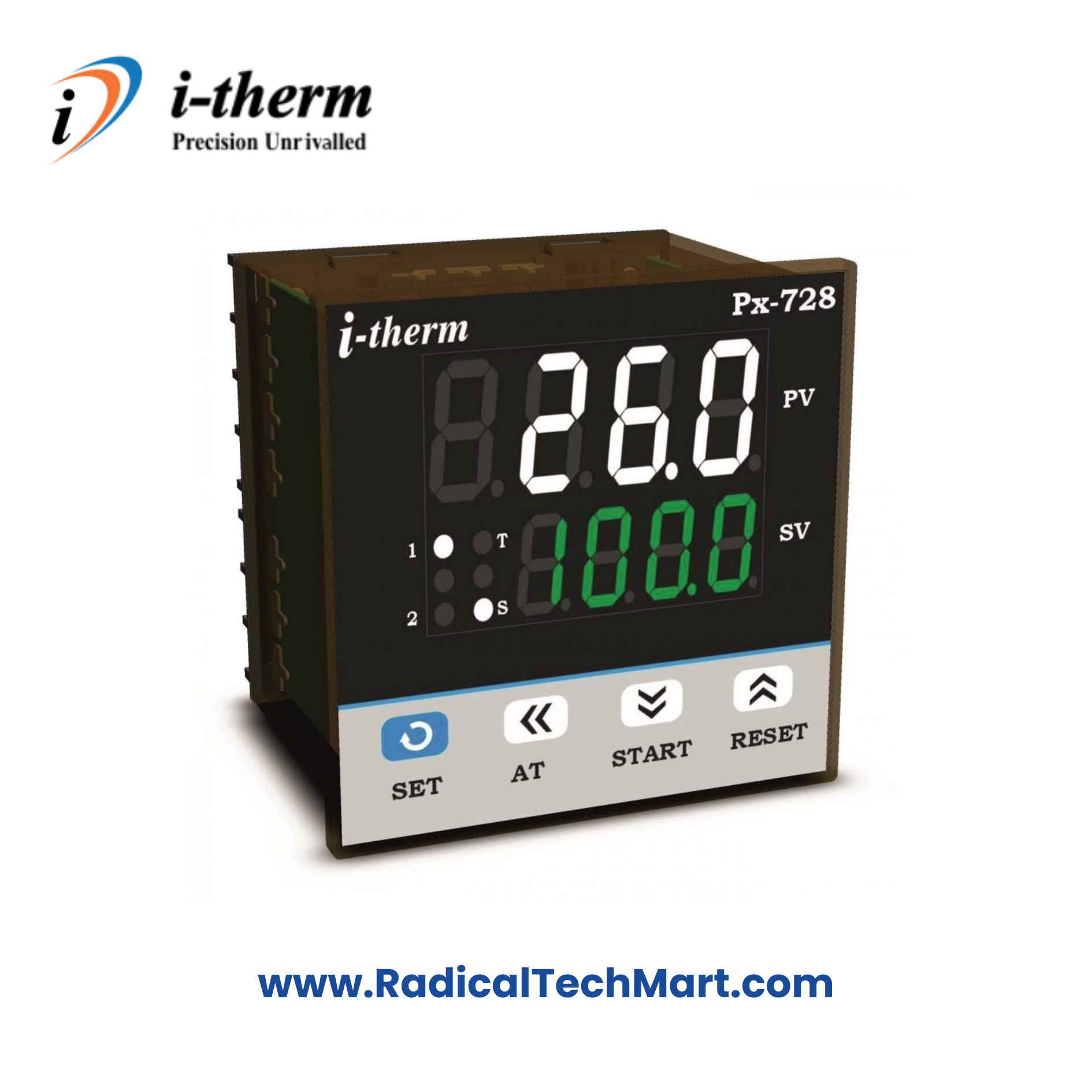

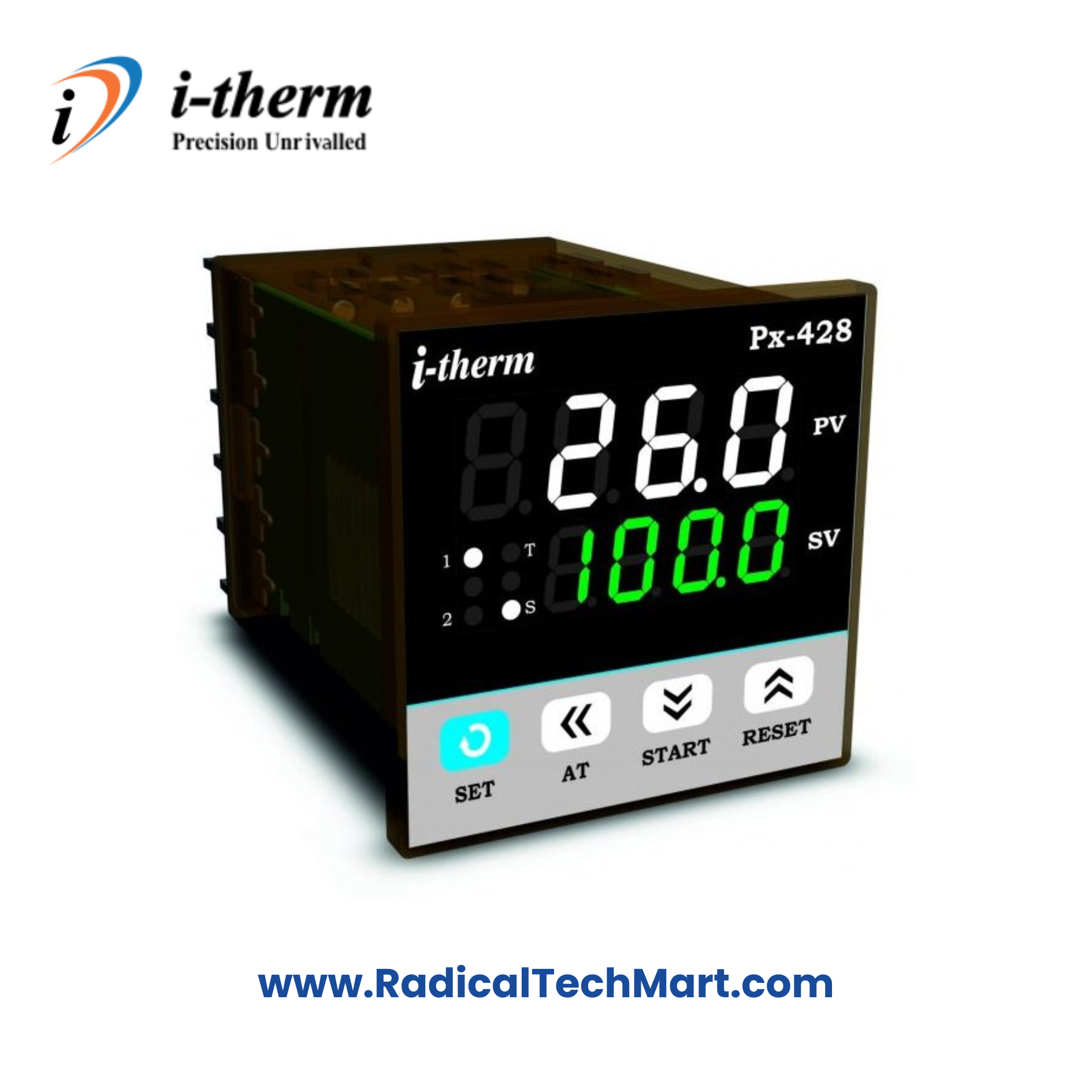

A. Product Overview

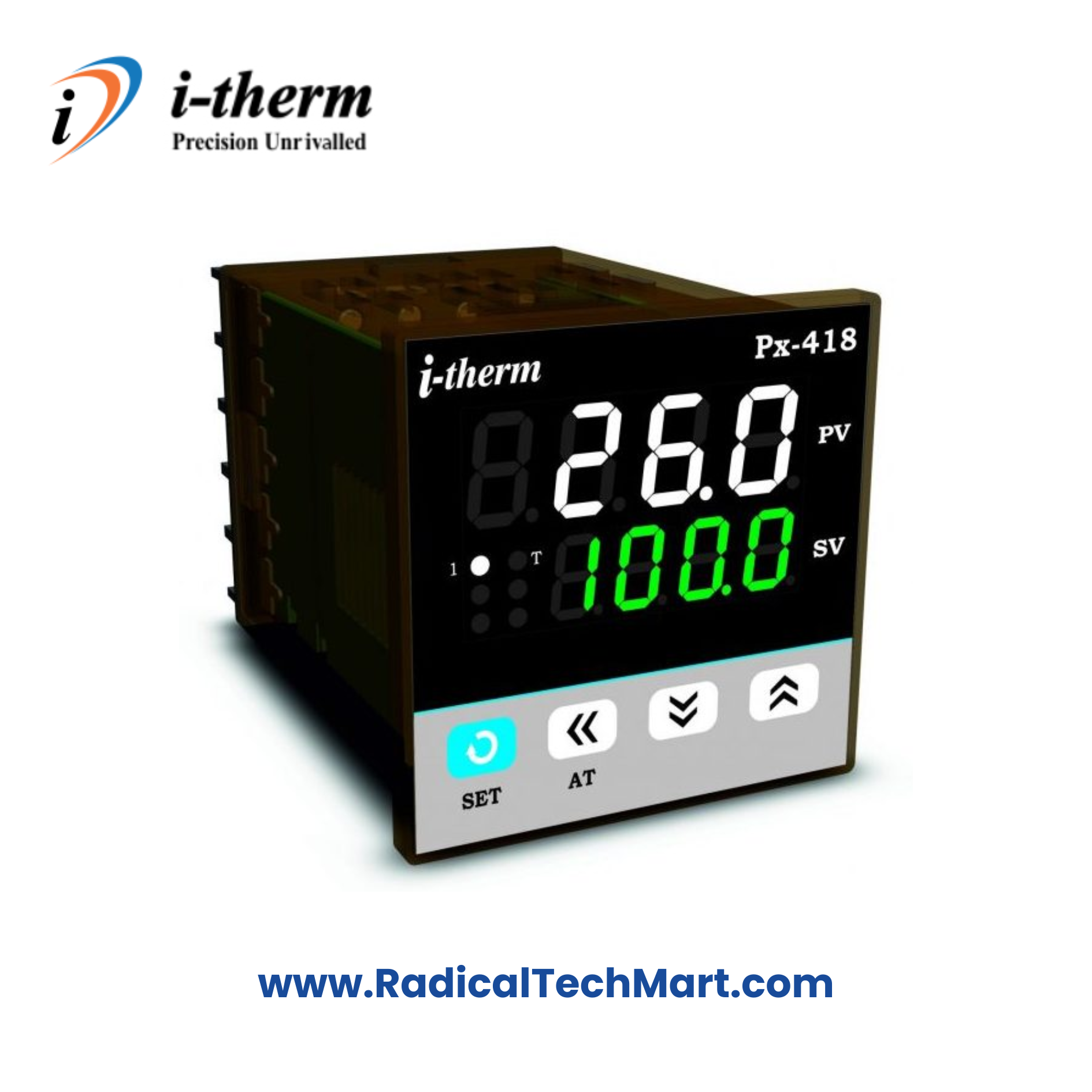

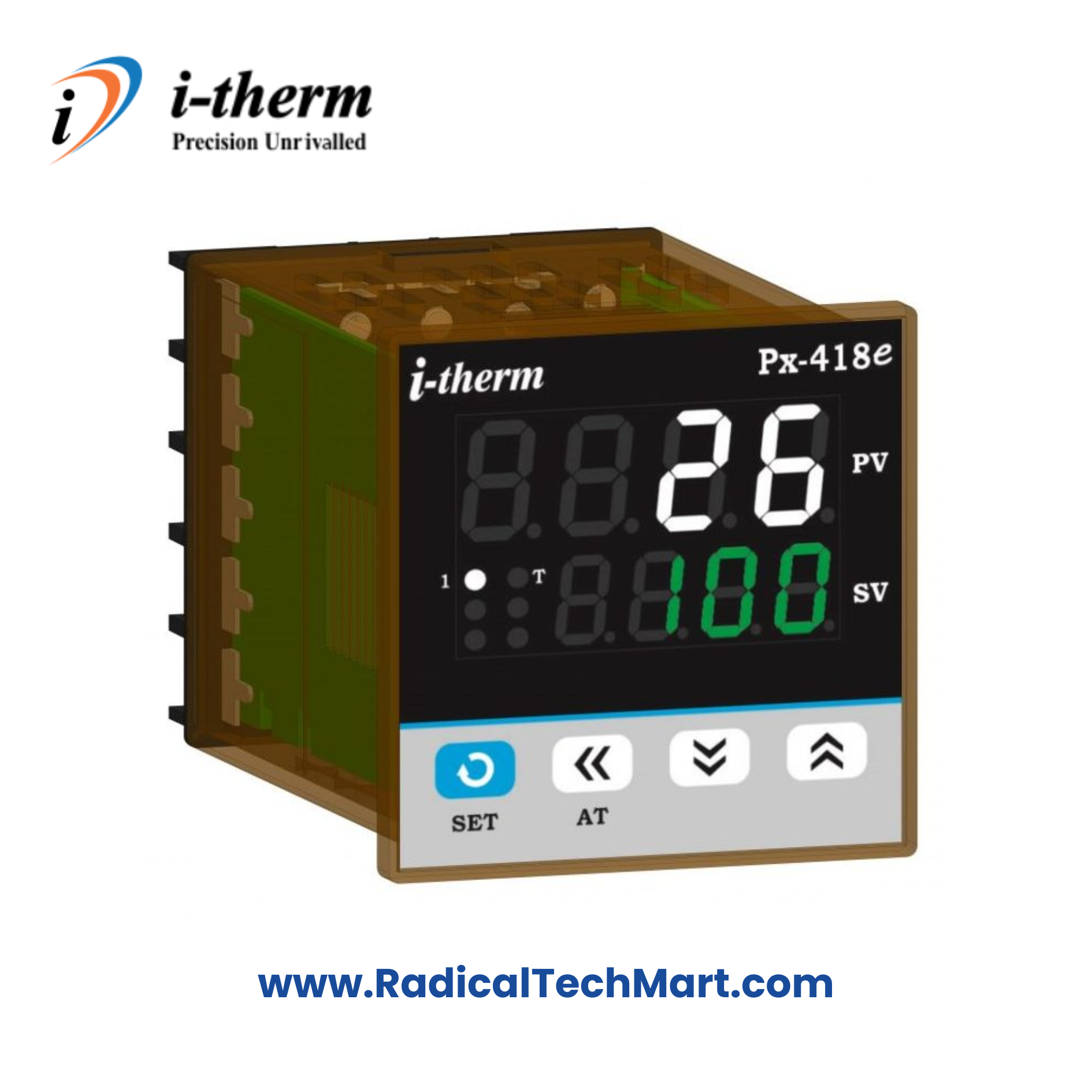

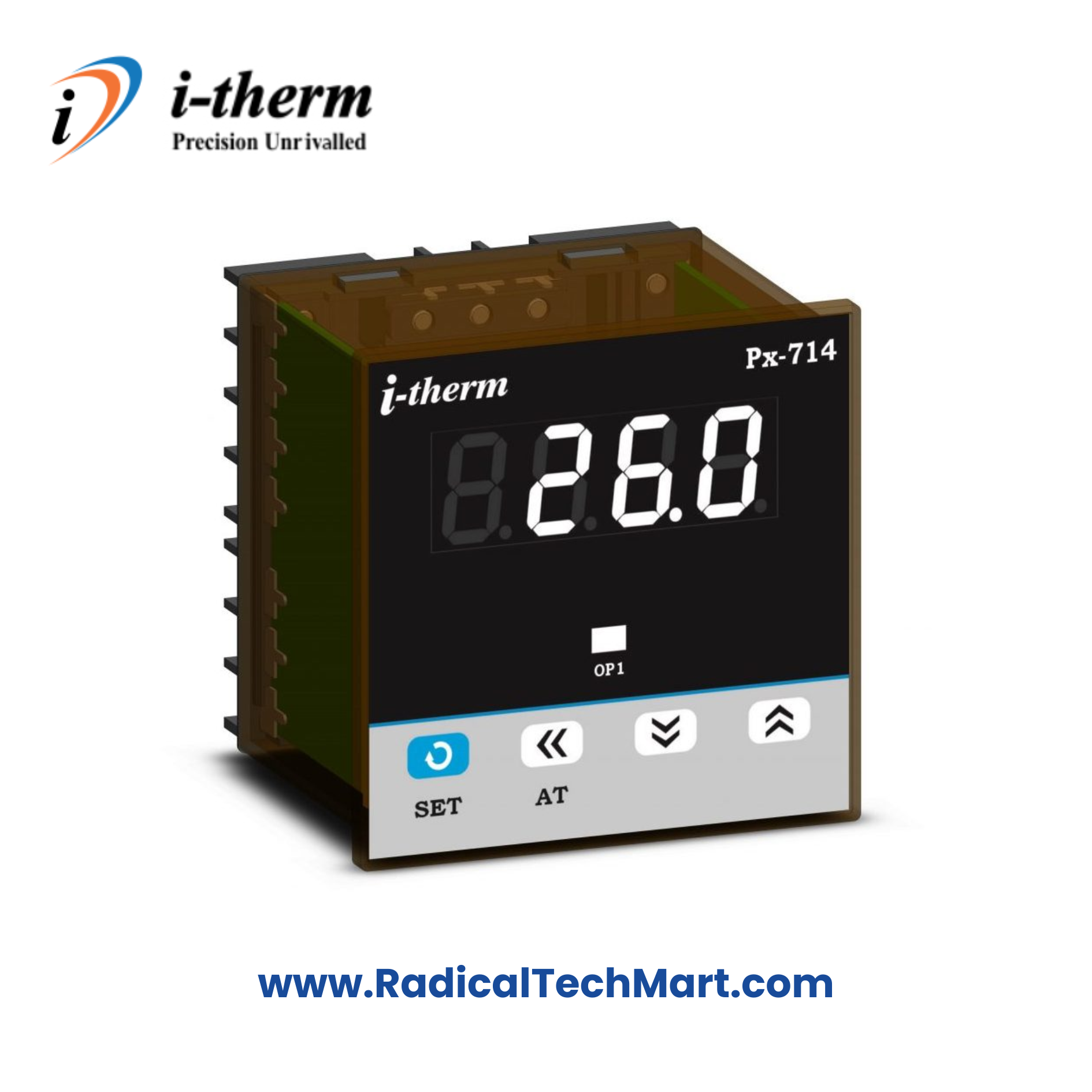

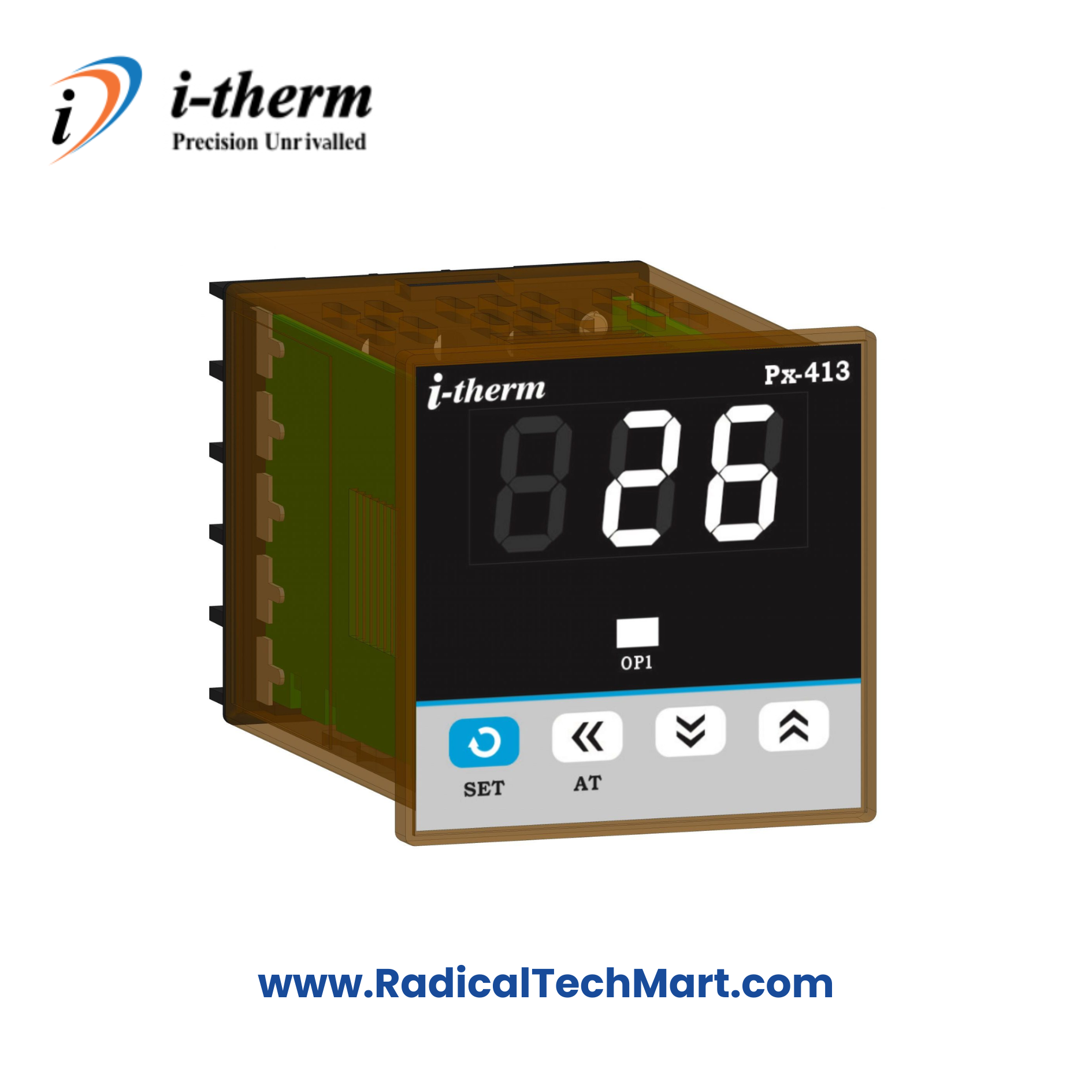

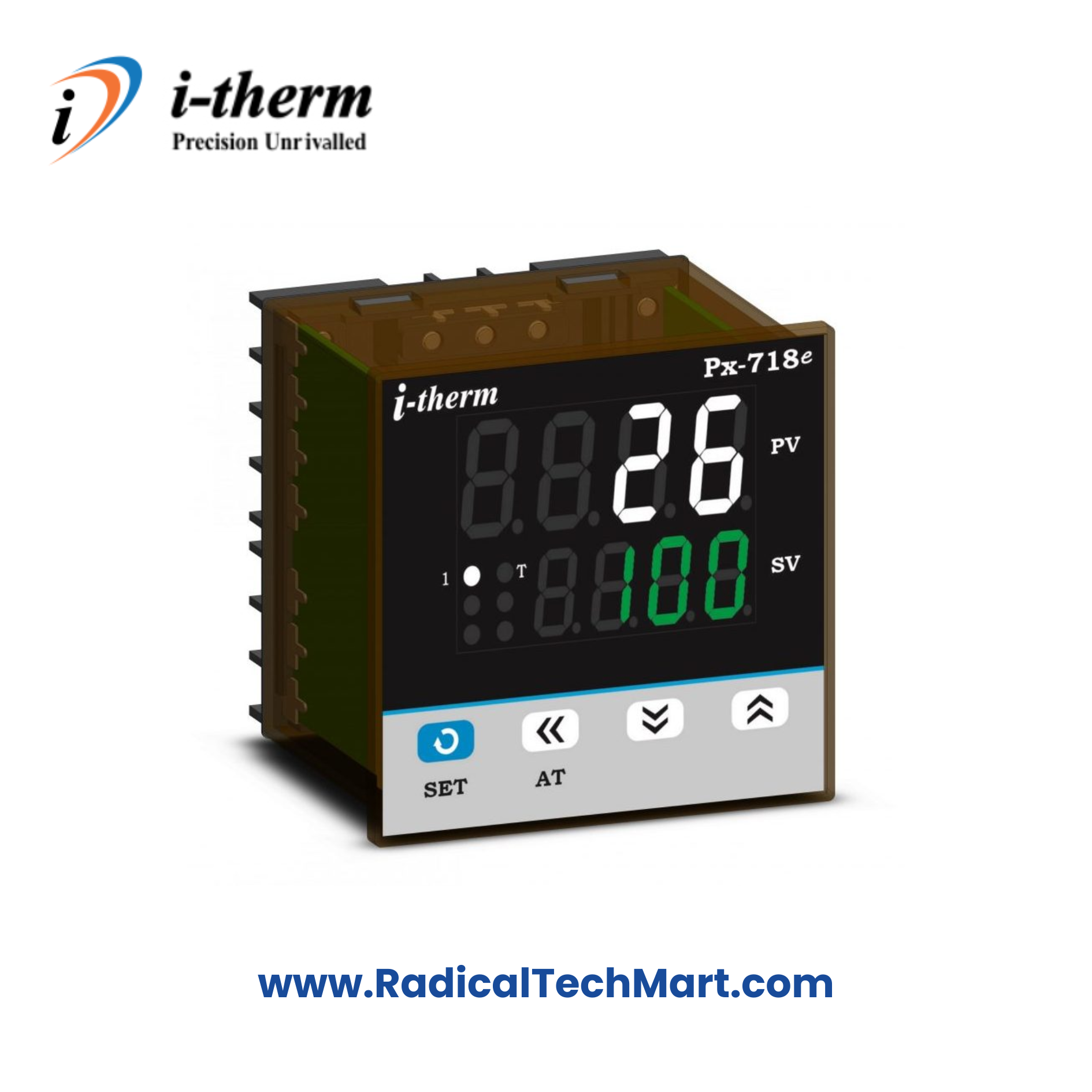

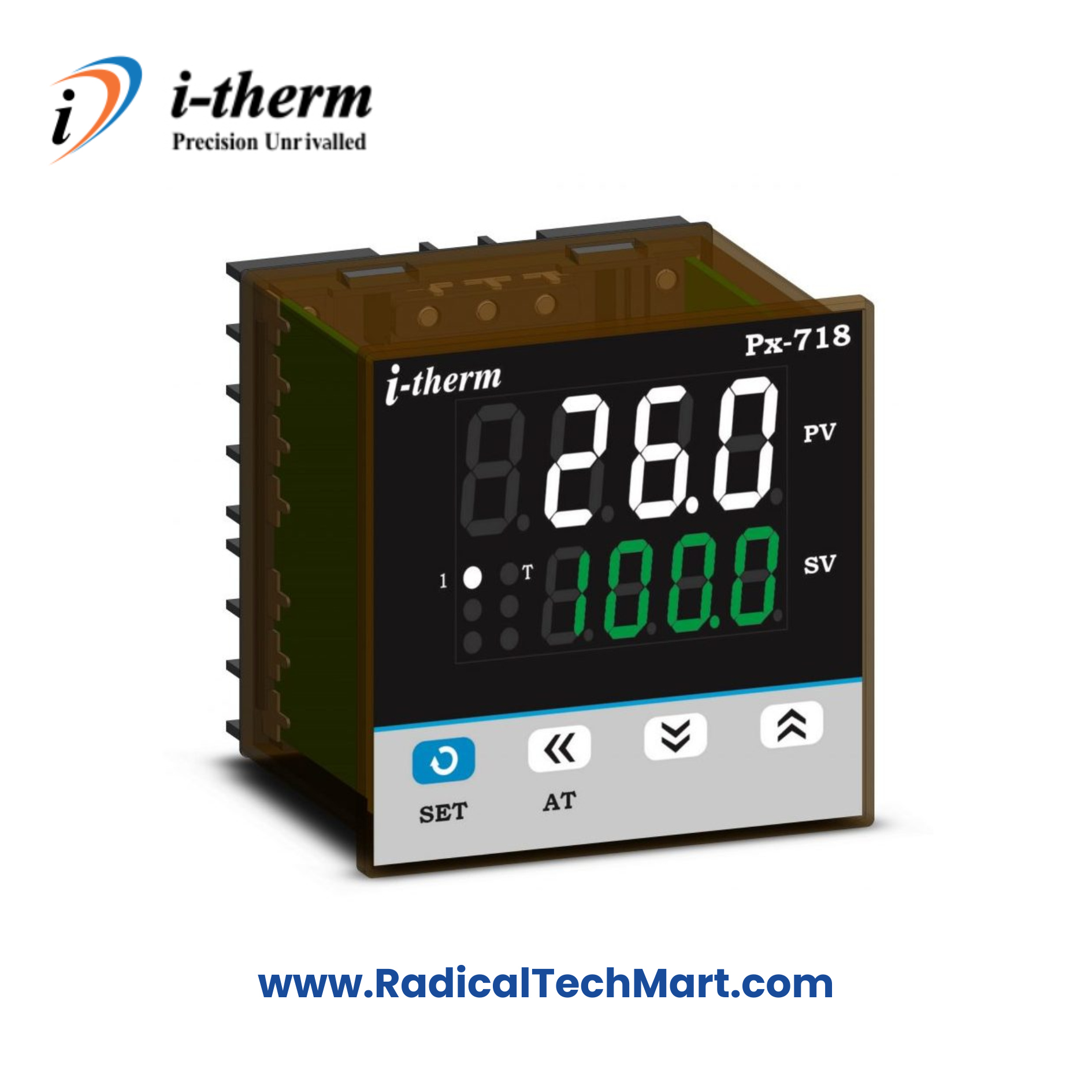

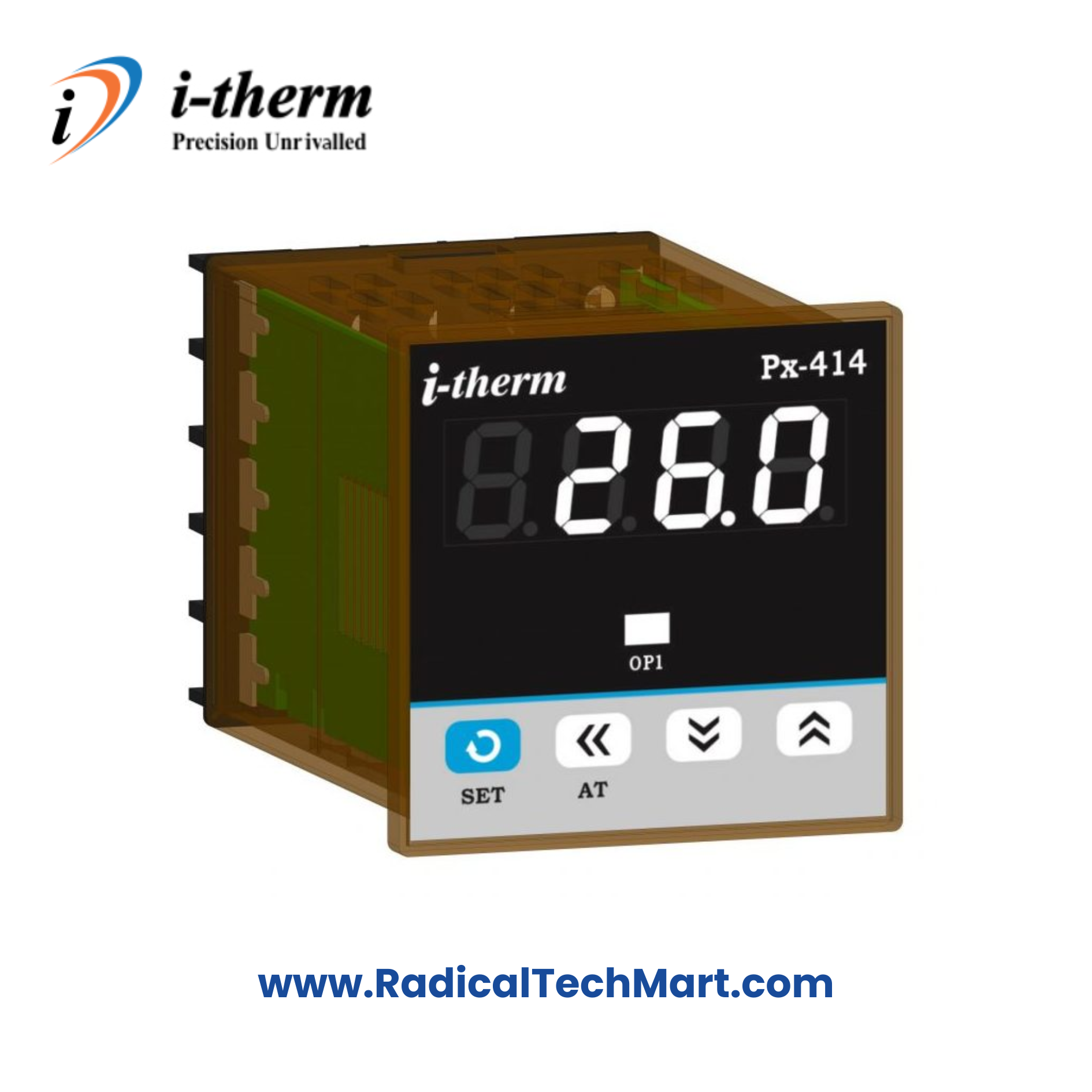

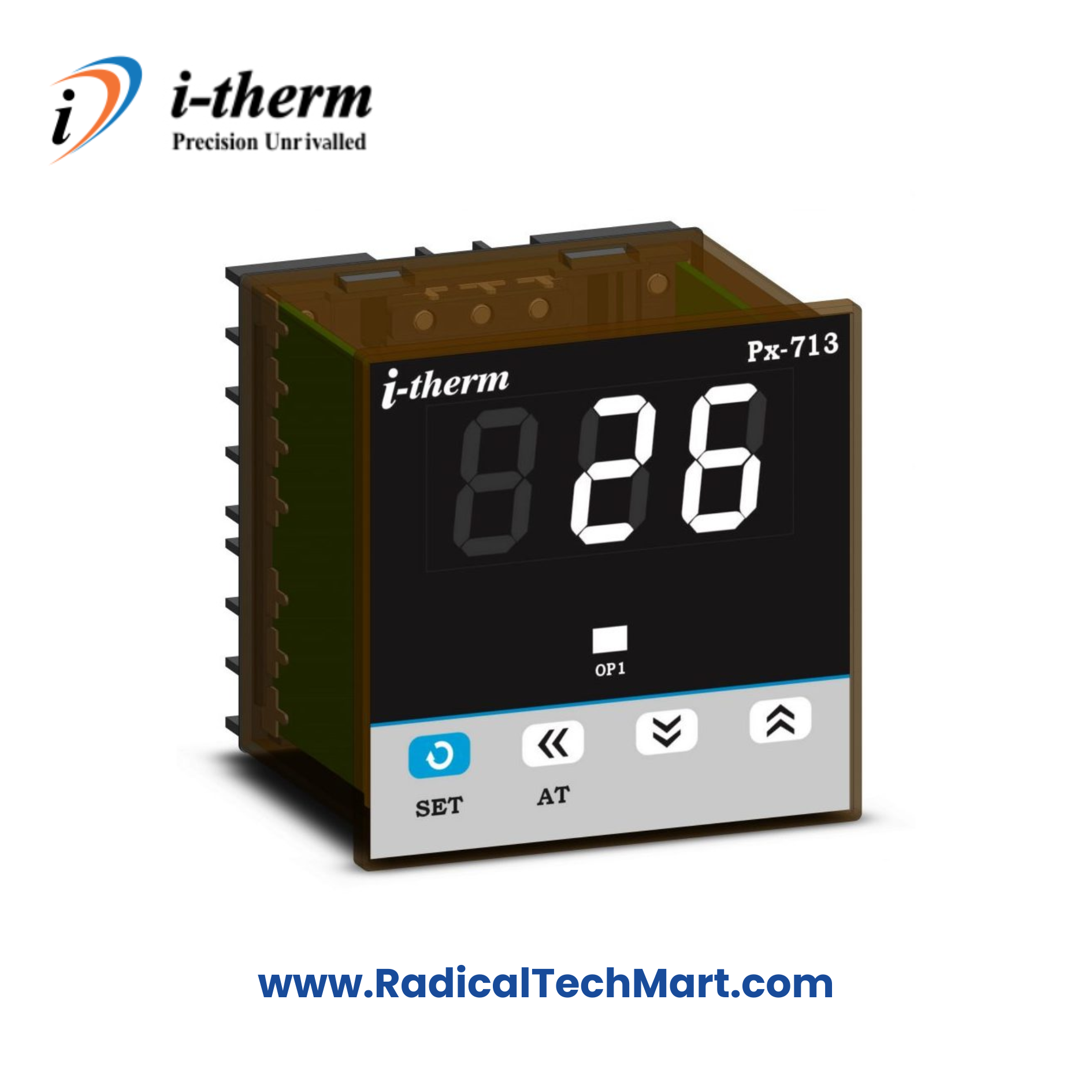

The iTherm PX Series Temperature Controller is an advanced digital PID temperature control solution designed to maintain accurate temperature levels in industrial processes. It is developed for applications where stable temperature control, quick response, and reliable operation are required.

The PX Series provides precise temperature measurement and control by accepting various temperature sensor inputs such as RTD and Thermocouple. It offers flexible output options including Relay and SSR outputs, making it suitable for different heating control applications.

With its compact panel mounting design, easy parameter setting, and reliable control performance, the PX Series Temperature Controller is widely used in industrial heating systems, process equipment, and automation panels.

Key features include:

• PID and ON-OFF temperature control modes
• Accurate temperature regulation
• RTD and Thermocouple sensor compatibility
• Relay and SSR output options
• Digital display for easy monitoring
• Compact panel mounting design
• Suitable for industrial heating applications
• Reliable performance for continuous operations

B. Working Principle of PX Series Temperature Controller

The iTherm PX Series Temperature Controller works on the principle of continuous temperature measurement and automatic control.

The connected temperature sensor, such as RTD or Thermocouple, detects the actual temperature of the process. This temperature value is continuously transmitted to the controller.

The controller compares the measured temperature with the user-defined set temperature. Based on the difference between the actual temperature and the set value, the controller calculates the required output using PID or ON-OFF control logic.

In PID mode, the controller automatically adjusts the output power to minimize temperature fluctuations and maintain stable temperature conditions. The output signal operates connected heating devices such as heaters, ovens, furnaces, or other temperature control equipment through Relay or SSR outputs.

C. Why is PX Series Temperature Controller Used?

The PX Series Temperature Controller is used where accurate and consistent temperature control is important for process quality and equipment safety.

Benefits of using iTherm PX Series include:

• Maintains accurate temperature control in industrial processes
• Reduces temperature fluctuation with PID control technology
• Improves product quality by maintaining stable process conditions
• Supports multiple temperature sensor inputs for application flexibility
• Provides reliable control for heating systems
• Reduces manual temperature adjustments through automatic control
• Suitable for continuous industrial operations
• Easy installation in control panels and automation systems

Industries use PX Series controllers to achieve better process efficiency, energy savings, and improved production reliability.

D. Suitable Buyers and Applications

The iTherm PX Series Temperature Controller is suitable for:

Suitable Buyers

• Machine manufacturers
• OEM manufacturers
• Industrial automation companies
• Control panel builders
• Process industries
• Maintenance engineers
• Electrical contractors
• Manufacturing plants
• Research and testing laboratories

Suitable Applications

• Industrial ovens
• Furnace temperature control
• Heating systems
• Plastic processing machines
• Packaging machines
• Food processing equipment
• Pharmaceutical equipment
• Textile machinery
• Laboratory equipment
• Injection moulding machines
• Process heating applications
• Industrial automation panels

Frequently Asked Questions (FAQ)

1. What is an iTherm PX Series Temperature Controller?

The iTherm PX Series Temperature Controller is a digital PID controller used for accurate temperature measurement and automatic temperature regulation in industrial applications.

2. What type of sensors are compatible with PX Series controllers?

The PX Series supports commonly used temperature sensors including RTD and Thermocouple inputs, depending on the model configuration.

3. What is the difference between PID and ON-OFF control?

ON-OFF control switches the output fully ON or OFF based on the temperature difference, while PID control continuously adjusts the output to maintain more stable temperature control.

4. Where can PX Series Temperature Controllers be used?

PX Series controllers can be used in ovens, furnaces, heaters, machines, process equipment, and industrial automation systems requiring precise temperature control.

5. Does PX Series support SSR output?

Yes, selected PX Series models support SSR output for controlling solid state relays used in industrial heating applications.

6. Can PX Series control heating applications?

Yes, the PX Series is designed mainly for heating applications such as heaters, ovens, furnaces, and industrial process heating systems.

7. Why choose a PID temperature controller instead of a normal temperature controller?

A PID temperature controller provides better accuracy, faster response, and improved temperature stability compared to basic ON-OFF controllers, especially in critical industrial processes.

8. Is PX Series suitable for industrial automation panels?

Yes, the compact panel mounting design makes the PX Series suitable for integration into industrial control panels and automation systems.
