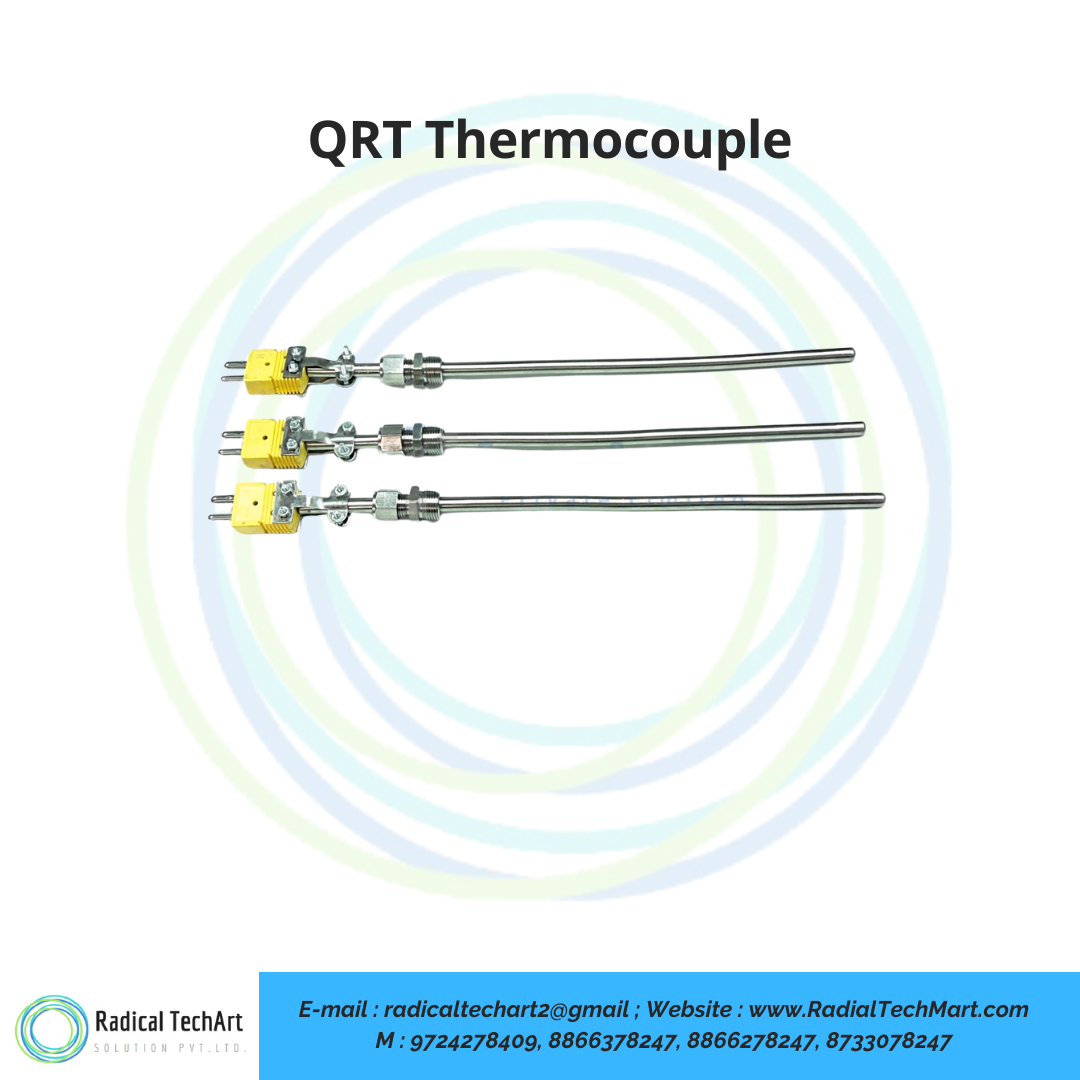

A. Product Overview

QRT Thermocouple, also known as Quick Response Thermocouple, is specially designed for temperature measurement in areas where fast response, flexibility, and compact sensor design are required. It is suitable for applications where the sensor needs to reach narrow, deep, or difficult installation points.

This thermocouple is available in J, K, and N type options with simplex construction. It can measure temperatures up to 1200°C, depending on the selected thermocouple type, sheath material, and process condition.

The sensor is available with sheath diameters such as 1.5 mm, 3 mm, 4.5 mm, 6 mm, and 8 mm. The sheath length can be selected as per application requirements, such as 100 mm, 150 mm, 200 mm, 300 mm, 500 mm, and other customized lengths.

QRT Thermocouple can be supplied with SS310, SS316, or Inconel sheath material. These sheath options provide mechanical strength, corrosion resistance, and suitability for high-temperature industrial environments.

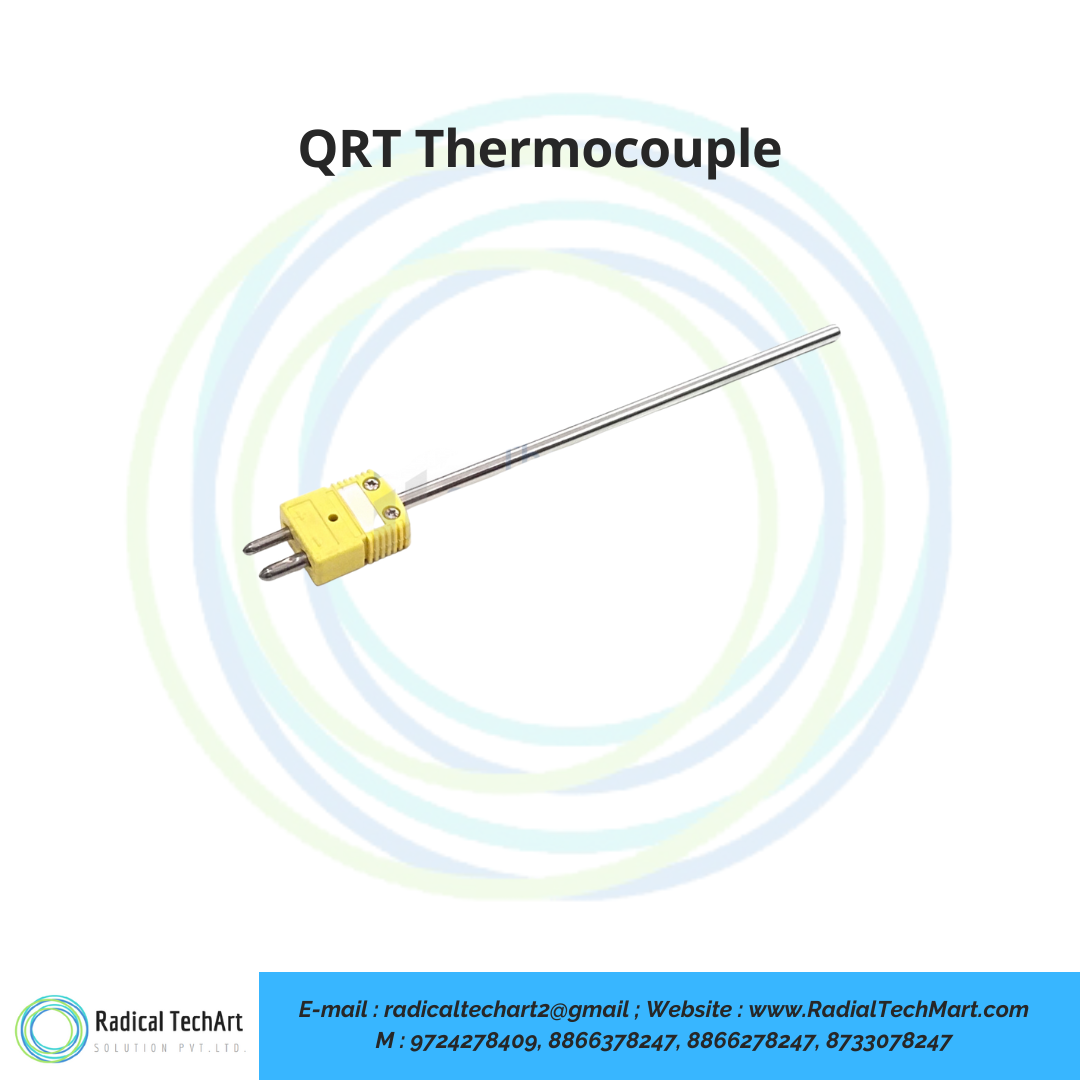

It is commonly supplied with flat pin or round pin connector termination for easy connection with temperature indicators, controllers, data loggers, and PLC systems.

B. Working Principle

A QRT Thermocouple works on the thermoelectric principle. It consists of two different metal wires joined at one end to form a sensing junction. When this junction is exposed to temperature, it generates a small voltage signal. This voltage changes according to the temperature at the sensing point.

The generated signal is sent to a temperature measuring device such as a digital temperature indicator, temperature controller, transmitter, data logger, or PLC system. The instrument then converts this thermoelectric signal into a temperature reading.

In an ungrounded design, the thermocouple junction is isolated from the outer sheath. This helps reduce electrical noise and signal interference, making the sensor more suitable for applications where stable and accurate measurement is required.

The mineral insulated cable construction uses highly compacted insulation inside a metal sheath. This improves heat transfer, mechanical strength, and flexibility. The MI cable design also allows the probe to be bent or formed carefully, making it useful for installations where straight sensors are difficult to use.

C. Why It Is Used

QRT Thermocouple is used when normal temperature sensors are too slow, too rigid, or too large for the application. Its small sheath diameter and low thermal inertia allow faster temperature response compared to many conventional thermocouples.

It is preferred in applications where the temperature changes quickly and the system needs fast feedback for control, monitoring, or safety.

Main reasons for using QRT Thermocouple include:

Fast temperature response

Suitable for hard-to-reach places

Small sheath diameter for compact installation

Wide temperature measurement range

Stable thermoelectric output

Simple and reliable construction

Signal transmission over long distance

Low-cost temperature measurement solution

Flexible mineral insulated cable design

Suitable for high-temperature industrial applications

Reduced electrical noise in ungrounded design

The Inconel sheath option is useful where the sensor is exposed to high temperature, oxidation, and harsh process environments. SS310 and SS316 sheath options are suitable for many general industrial and process applications.

D. Suitable Buyers

QRT Thermocouple is suitable for industries and users who need fast and reliable temperature measurement in compact or difficult installation areas.

Suitable buyers include:

Industrial automation companies

Process industries

Furnace manufacturers

Heat treatment plants

Plastic machinery manufacturers

Packaging machine manufacturers

Pharmaceutical equipment manufacturers

Food processing equipment manufacturers

Chemical process plants

Boiler and burner system manufacturers

Laboratory equipment manufacturers

Temperature controller panel manufacturers

OEM machine builders

Maintenance and utility departments

Instrumentation engineers

Panel builders and system integrators

MRO and procurement teams

It is also suitable for buyers who need customized thermocouple length, sheath diameter, sheath material, connector type, and temperature range as per their process requirement.

FAQ

1. What is a QRT Thermocouple?

QRT Thermocouple means Quick Response Thermocouple. It is a temperature sensor designed for fast temperature measurement in applications where quick response, compact size, and flexible installation are required.

2. Where is QRT Thermocouple used?

QRT Thermocouple is used in furnaces, heat treatment systems, plastic machines, packaging machines, process equipment, laboratories, industrial automation systems, and hard-to-reach temperature measurement points.

3. Why is it called a quick response thermocouple?

It is called a quick response thermocouple because it has a small sheath diameter and low thermal inertia. This allows the sensor to detect temperature changes faster than many standard thermocouples.

4. Which thermocouple types are available in QRT Thermocouple?

QRT Thermocouple is commonly available in J type, K type, and N type options. The correct type depends on the temperature range, process condition, and application requirement.

5. What is the temperature range of QRT Thermocouple?

QRT Thermocouple can measure temperatures up to 1200°C, depending on the thermocouple type, sheath material, insulation, and application condition.

6. Which sheath materials are available?

Common sheath materials include SS310, SS316, and Inconel. SS310 is suitable for high-temperature applications, SS316 is useful for corrosion resistance, and Inconel is preferred for harsh and high-temperature environments.

7. What is the benefit of mineral insulated cable construction?

Mineral insulated cable construction provides fast heat transfer, good electrical insulation, mechanical strength, and flexibility. It allows the sensor to be used in demanding industrial applications.

8. What is an ungrounded thermocouple design?

In an ungrounded thermocouple, the sensing junction is isolated from the outer metal sheath. This helps reduce electrical noise and gives more stable temperature readings in electrically noisy environments.

9. Can QRT Thermocouple be bent during installation?

Yes, mineral insulated QRT Thermocouple probes can be carefully bent within the recommended bending radius. The MI cable design helps maintain sensor performance while allowing flexible installation.

10. What connector options are available?

QRT Thermocouple can be supplied with flat pin connector or round pin connector termination. The selection depends on the measuring instrument or system connection requirement.

11. Can the sheath diameter and length be customized?

Yes, QRT Thermocouple can be customized in different sheath diameters and lengths such as 1.5 mm, 3 mm, 4.5 mm, 6 mm, 8 mm, 100 mm, 150 mm, 200 mm, 300 mm, 500 mm, and other application-specific sizes.

12. Who should buy QRT Thermocouple?

QRT Thermocouple is suitable for OEMs, machine manufacturers, process industries, maintenance teams, instrumentation engineers, panel builders, and system integrators who need fast and reliable temperature measurement.
