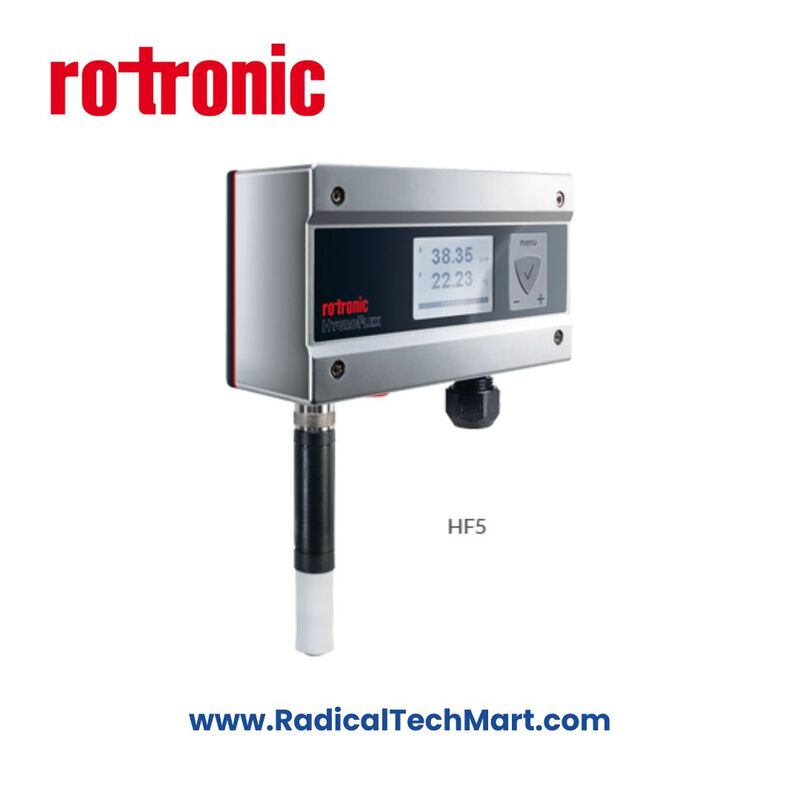

The Rotronic HygroFlex5 HF5 Series is a universal transmitter platform for humidity, temperature, and dew point measurement. It supports wall, industrial wall (HF53S/HF54S), and duct (HF52/53/54D) versions, uses HygroClip2 probes, offers freely scalable analog outputs, and includes advanced features like AirChip technology, sensor diagnostics, and 2000-point data logging.

KEY FEATURES

• Works with HygroClip2 probes (various types)


• Measures RH, Temperature & Dew Point

• Probe accuracy (HC2A series): ±0.8% RH / ±0.1 K


• Analog outputs: 0–1 V, 0–5 V, 0–10 V, 0/4–20 mA


• Optional digital outputs: Ethernet, RS-485, USB

• Fast response (probe dependent)

• Data logging: 2000 points internal memory

• Sensor diagnostics (drift, state)

• IP65 protection, UL94-HB fire class


• Wall & industrial housings support HC2A probes; duct model has probe extension

VERSIONS

HF5 Wall Version (W)

• For HVAC rooms, plant areas

• Uses external HygroClip2 probe

• IP65

• Compact ABS housing


HF5 Industrial Wall Version (HF53S / HF54S)

• Heavy-duty aluminum housing

• For harsh industrial environments

• Same electronics as HF5 but rugged construction


HF5 Duct Version (D)

• For ventilation ducts/AHUs

• Probe extension + IP65 housing

• Same signal output options


TECHNICAL SPECIFICATIONS

APPLICATIONS

• HVAC systems

• Ventilation shafts (duct)

• Food industry

• Pharma & cleanrooms

• Paper & printing

• Industrial process monitoring


WHAT’S IN THE BOX

• HF5 transmitter (Wall / Industrial / Duct)

• Mounting bracket & screws

• Wiring terminal guide

FAQ

Q1. Can HF5 measure dew point?
Yes—internal psychrometric calculations.

Q2. What probes work with HF5?
HygroClip2 (HC2A series, standard or industrial).

Q3. Are digital outputs available?
Yes—RS-485, Ethernet (LAN/WLAN), and USB.

Q4. Does HF5 store data?
Yes—logs 2000 points.
