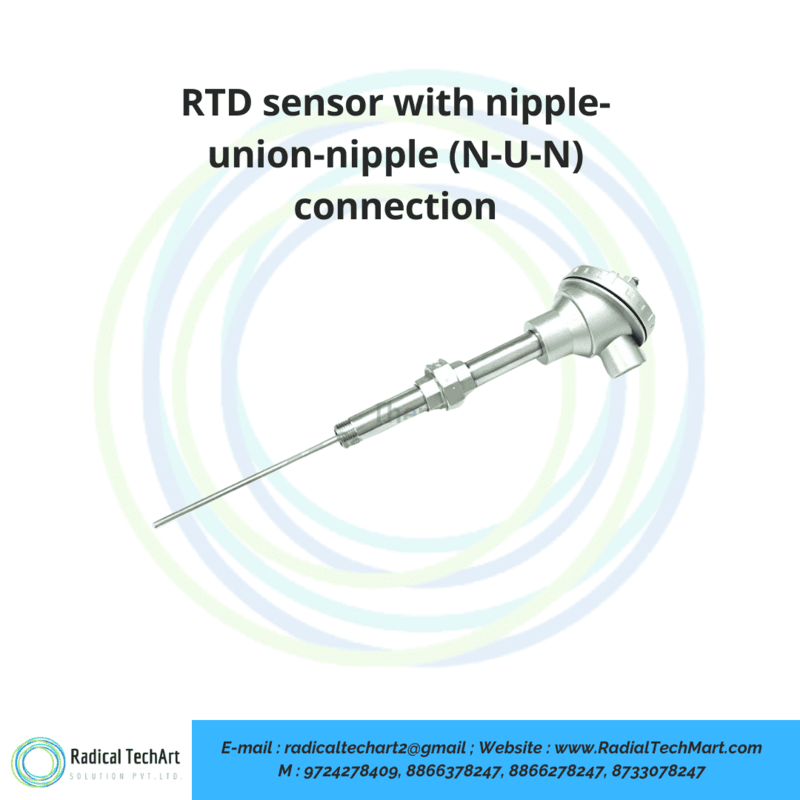

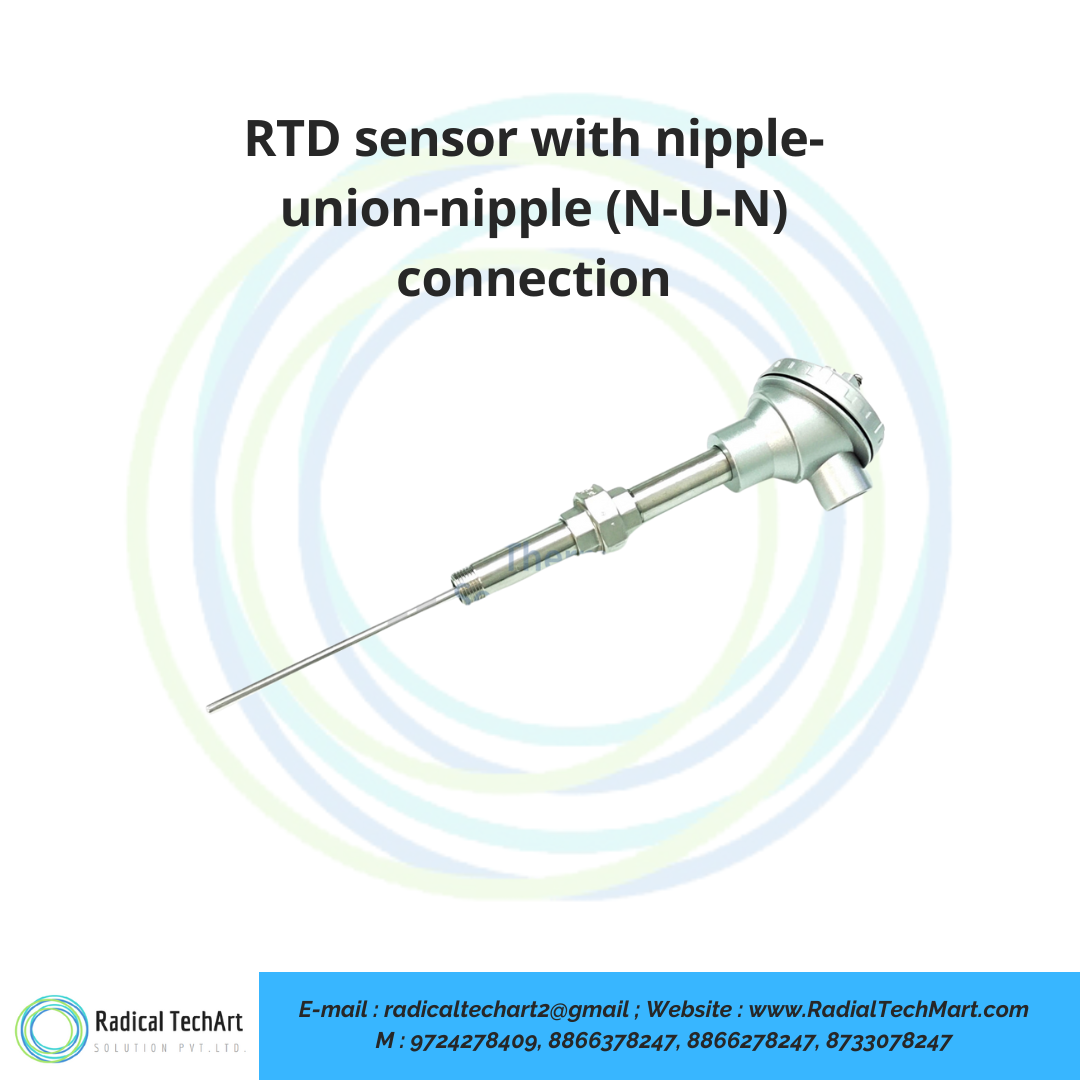

RTD sensor with nipple-union-nipple (N-U-N) connection
Type
RTD/J/K( Simplex / Duplex )
Temperature Range
-50 to 500ā°C /0 to 600ā°C /0 to 1200ā°C
Connection
Nipple / Nipple-union-nipple
Sheath Dia
6, 8, 10 mm
Probe Length
50 to 5000 mm
Thread Size
1/2 BSP and NPT ( Optional )
ā¹0.00 ā¹0.00
Customize
Add Note
Share :
Product Details
RTD (Resistance Temperature Detector) sensor with a nipple-union-nipple connection refers to an RTD sensor that has a specific type of connection for installation in a pipeline or vessel.
The nipple-union-nipple connection consists of two threaded nipples that are screwed into the pipeline or vessel, with a union fitting between them that allows for easy installation and removal of the sensor.
The RTD sensor is typically inserted into the union fitting and secured in place with a compression fitting.
This type of connection is commonly used in industrial applications where accurate temperature measurement is required, such as in chemical processing, oil and gas, and food and beverage industries.
The nipple-union-nipple connection allows for easy installation and removal of the sensor without disrupting the flow or integrity of the system. Overall, an RTD sensor with a nipple-union-nipple connection can be a reliable and accurate way to measure temperature in pipelines and vessels in industrial applications.
