A. Product Overview

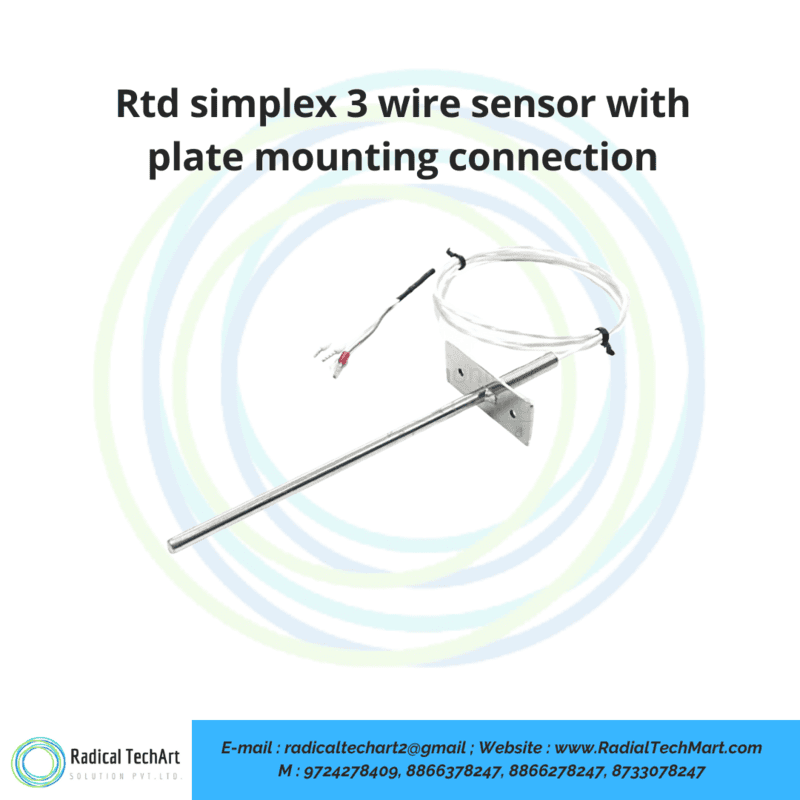

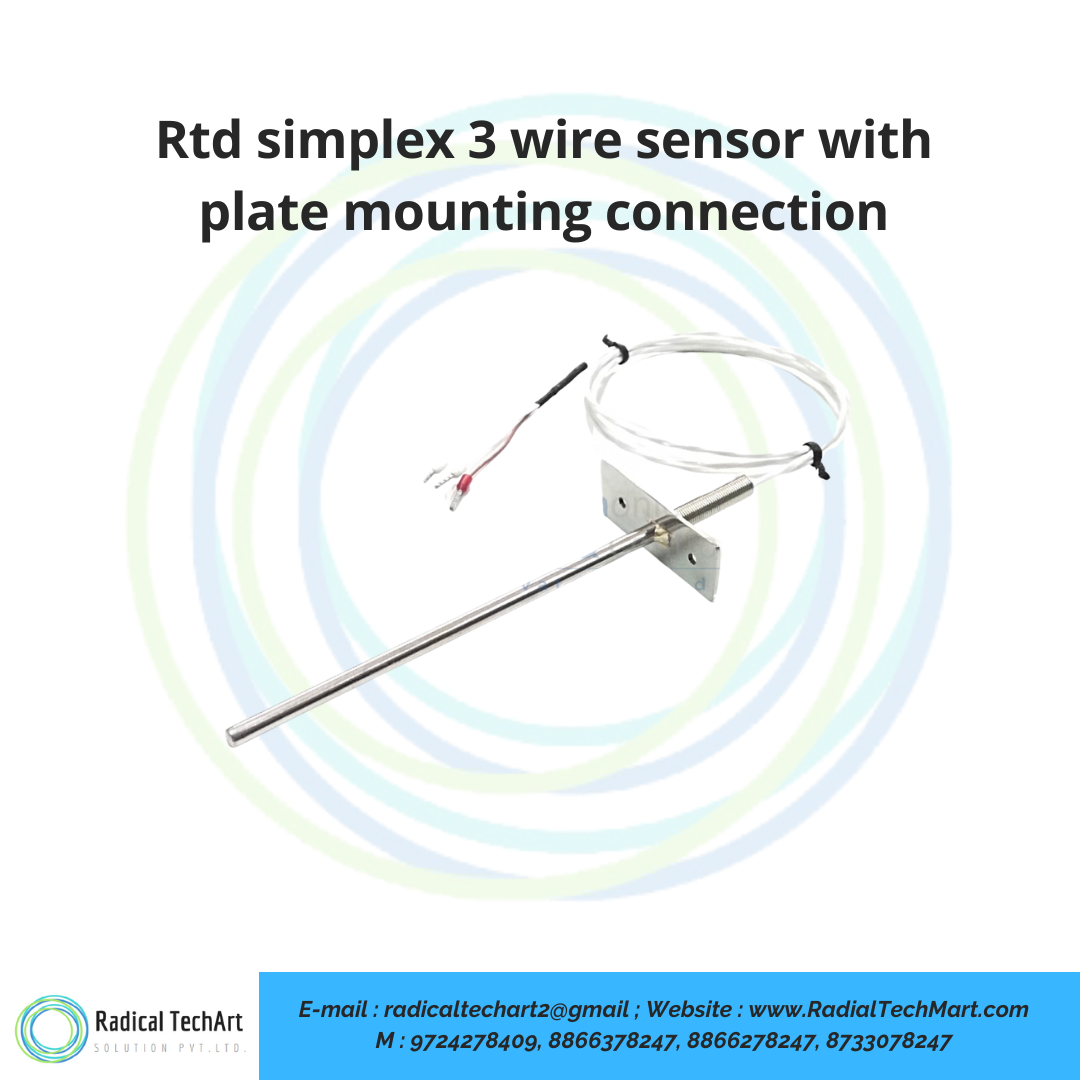

RTD Simplex 3 Wire Sensor with Plate Mounting Connection is used to measure the temperature of flat surfaces, plates, machinery bodies, heating equipment, and industrial process surfaces. The sensor is designed with a mounting plate that helps fix the RTD probe securely on the required surface.

This type of RTD sensor is useful where direct contact temperature measurement is required. The plate mounting design improves installation stability and ensures proper contact between the sensor and the surface. It is commonly used in industrial temperature monitoring, machine temperature checking, surface heating applications, and process equipment monitoring.

The sensor is available with a Pt100 simplex or duplex element, temperature range from -70 to 500°C, probe diameter of 5 mm or 6 mm, probe length from 25 mm to 200 mm, plate size of 50 mm by 20 mm, wire length from 0.5 meter to 10 meter, and 2 wire, 3 wire, or 4 wire configuration as per application requirement.

B. Working Principle

An RTD sensor works on the resistance temperature principle. The Pt100 element inside the sensor changes its electrical resistance according to temperature.

At 0°C, a Pt100 RTD element has a resistance of 100 ohms. When the surface temperature increases, the resistance of the Pt100 element also increases in a predictable manner. This resistance change is measured by a temperature indicator, controller, transmitter, PLC, or monitoring system and converted into a temperature reading.

In this plate mounting design, the RTD probe is placed in contact with the surface through the mounting arrangement. The plate helps hold the sensor firmly in position, allowing the sensing element to detect the surface temperature accurately. This makes it suitable for applications where surface temperature needs to be continuously monitored.

C. Why It Is Used

RTD Simplex 3 Wire Sensor with Plate Mounting Connection is used because many industrial applications require accurate surface temperature measurement without inserting the sensor into the process.

It is used for:

• Surface temperature measurement of flat and plate-like surfaces.
• Temperature monitoring of machinery and industrial equipment.
• Heating plate and hot surface temperature measurement.
• Process equipment temperature monitoring.
• Electrical and mechanical equipment temperature checking.
• Temperature feedback for controllers and indicators.
• Continuous temperature monitoring in industrial systems.

The 3 wire RTD configuration helps reduce lead wire resistance error and provides better accuracy compared to a basic 2 wire connection. The Pt100 element gives stable and repeatable temperature readings, making it suitable for industrial temperature measurement applications.

D. Suitable Buyers

This RTD Simplex 3 Wire Sensor with Plate Mounting Connection is suitable for:

• Industrial machine manufacturers.
• Heating equipment manufacturers.
• Process plant maintenance teams.
• Electrical panel builders.
• Industrial automation system integrators.
• OEM equipment manufacturers.
• Temperature controller users.
• Factory maintenance engineers.
• HVAC and thermal system contractors.
• Laboratory and testing equipment manufacturers.
• Plastic, packaging, chemical, textile, and general engineering industries.

This product is suitable for buyers who need a reliable Pt100 RTD sensor for surface temperature measurement, flat surface mounting, machinery monitoring, and industrial temperature control.

FAQ

1. What is an RTD Simplex 3 Wire Sensor with Plate Mounting Connection?

It is a Pt100 RTD temperature sensor designed to measure surface temperature on flat and plate-like surfaces. The plate mounting connection helps install the sensor securely on the surface.

2. Where is this RTD sensor used?

This sensor is used in industrial machinery, heating plates, process equipment, electrical systems, HVAC equipment, thermal systems, and surface temperature monitoring applications.

3. What is the temperature range of this RTD sensor?

The temperature range is -70 to 500°C, depending on the sensor construction, cable selection, and application requirement.

4. What is the element used in this sensor?

The sensor uses a Pt100 element. It can be supplied in simplex or duplex construction depending on the requirement.

5. What is the benefit of 3 wire RTD configuration?

A 3 wire RTD configuration helps reduce the effect of lead wire resistance and gives better temperature measurement accuracy compared to a 2 wire RTD connection.

6. Can this sensor be used for surface temperature measurement?

Yes, this sensor is designed for surface temperature measurement. The plate mounting connection helps keep the sensor in proper contact with the surface.

7. What probe sizes are available?

The sensor is commonly available with 5 mm or 6 mm probe diameter and probe length from 25 mm to 200 mm.

8. What is the plate size of this RTD sensor?

The standard plate size mentioned is 50 mm by 20 mm. Custom plate sizes may be possible depending on the application.

9. What wire length is available?

The wire length is available from 0.5 meter to 10 meter based on installation requirements.

10. Is this sensor suitable for industrial applications?

Yes, this RTD sensor is suitable for industrial applications where accurate, stable, and continuous surface temperature measurement is required.

11. Can this sensor be connected to a temperature controller?

Yes, this sensor can be connected to a compatible temperature controller, temperature indicator, transmitter, PLC, or monitoring system.

12. Who should buy this RTD sensor?

This sensor is suitable for OEMs, machine manufacturers, maintenance engineers, automation companies, heating system manufacturers, and industrial users who need reliable surface temperature monitoring.
