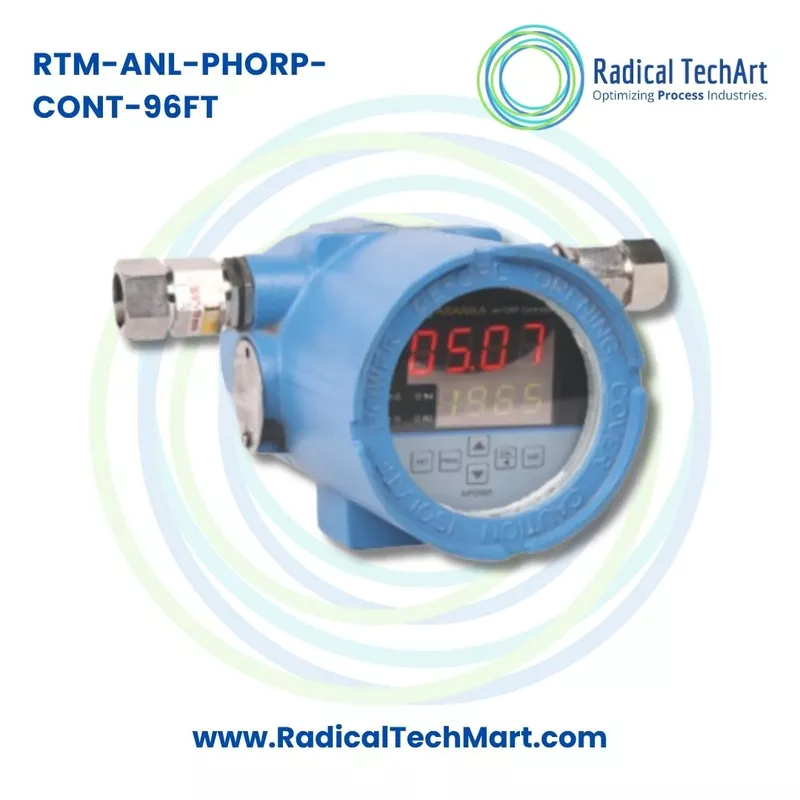

RTM Field Type pH and ORP Analyzer Controller

A. Product Overview

RTM-ANL-PHORP-CONT-96FT is an online pH and ORP Analyzer Controller used for continuous measurement and control of liquid quality in industrial applications. It is suitable for applications where pH or ORP values need to be monitored in real time and connected with dosing, alarm or automation systems.

The controller can be configured for pH measurement or ORP measurement depending on the connected sensor and application. It is suitable for use with pH sensors, ORP sensors, flow cells and protection covers as per site installation requirements.

RTM-ANL-PHORP-CONT-96FT supports measurement of 0 to 14 pH and minus 2000 to 2000 mV ORP. It provides relay outputs for dosing and alarm control and 4 to 20 mA retransmission output for sending the measured value to PLC, SCADA, recorder, data logger or remote monitoring system.

This model is suitable for water treatment panels, chemical dosing panels, effluent treatment systems, process water systems and industrial monitoring panels where online pH and ORP measurement is required.

B. Working Principle

RTM-ANL-PHORP-CONT-96FT works by receiving an electrical signal from a connected pH or ORP sensor installed in the process liquid, tank, pipeline or flow cell.

For pH measurement, the pH sensor detects hydrogen ion activity in the liquid and generates a millivolt signal. The controller converts this signal into a pH reading. A lower value indicates acidic liquid and a higher value indicates alkaline liquid.

For ORP measurement, the ORP sensor measures oxidation reduction potential in millivolts. ORP helps indicate whether the liquid condition is oxidizing or reducing. This is useful in disinfection, oxidation, chlorination and chemical treatment processes.

The controller supports temperature compensation for pH measurement. Temperature compensation helps improve measurement stability because pH sensor response can change with liquid temperature.

When the measured pH or ORP value reaches the programmed set point, the relay outputs can operate dosing pumps, alarm systems, control valves or interlock circuits. The 4 to 20 mA retransmission output sends the measured value to PLC, SCADA, recorder or monitoring equipment.

C. Why It Is Used

RTM-ANL-PHORP-CONT-96FT is used to continuously monitor and control pH or ORP in water and process liquid systems. pH and ORP are important parameters in water treatment, wastewater treatment, chemical dosing, disinfection and process control.

In ETP and STP plants, pH monitoring helps maintain proper treatment conditions and supports discharge quality control. In chemical dosing systems, the controller helps automate acid and alkali dosing. In disinfection systems, ORP monitoring helps track oxidation strength and chemical effectiveness.

This controller reduces manual testing and provides real-time measurement for better process control. Relay outputs can be used for dosing and alarm actions, while the 4 to 20 mA retransmission output helps integrate the reading with plant automation systems.

Main reasons for using RTM-ANL-PHORP-CONT-96FT include:

1. Continuous online pH and ORP monitoring
2. pH or ORP selectable operation as per application
3. Automatic or manual temperature compensation for pH
4. Relay output for dosing, alarm and interlock control
5. 4 to 20 mA retransmission output for PLC and SCADA connection
6. Front keypad setting for calibration and set point adjustment
7. Suitable for ETP, STP, water treatment and chemical process applications
8. Helps reduce manual testing and operator dependency
9. Useful for acid and alkali dosing control
10. Useful for ORP-based oxidation and disinfection monitoring

D. Suitable Buyers

RTM-ANL-PHORP-CONT-96FT is suitable for customers who need online pH or ORP measurement with relay control and signal retransmission.

Suitable buyers include:

1. ETP plant manufacturers
2. STP plant manufacturers
3. Water treatment plant suppliers
4. RO plant manufacturers
5. Chemical dosing system manufacturers
6. Industrial wastewater treatment plants
7. Chemical process industries
8. Pharma utility departments
9. Food and beverage process plants
10. Textile and dyeing industries
11. Cooling water treatment companies
12. Panel builders
13. Automation system integrators
14. PLC and SCADA solution providers
15. Environmental monitoring companies
16. Maintenance and purchase departments looking for pH and ORP controllers

FAQ

1. What is RTM-ANL-PHORP-CONT-96FT?

RTM-ANL-PHORP-CONT-96FT is an online pH and ORP Analyzer Controller used for continuous pH or ORP measurement, monitoring, dosing control and signal retransmission in industrial liquid applications.

2. Can RTM-ANL-PHORP-CONT-96FT measure both pH and ORP?

Yes, the controller range supports pH or ORP operation depending on the connected sensor and selected configuration.

3. What is the pH measuring range?

The pH measuring range is 0 to 14 pH.

4. What is the ORP measuring range?

The ORP measuring range is minus 2000 mV to 2000 mV.

5. What is the power supply requirement?

The catalog mentions 90 to 260 VAC power supply and 24 VDC optional power.

6. Does this controller support temperature compensation?

Yes, it supports automatic or manual temperature compensation for pH measurement.

7. Does RTM-ANL-PHORP-CONT-96FT have relay output?

Yes, it supports relay outputs for dosing control, alarm operation, pump control and process interlocking.

8. Does this controller have 4 to 20 mA output?

Yes, it supports 4 to 20 mA retransmission output for sending the measured pH or ORP value to PLC, SCADA, recorder or remote monitoring system.

9. Can this controller be used for acid and alkali dosing?

Yes, it can be used for acid and alkali dosing control by setting lower and higher pH limits and operating dosing pumps through relay outputs.

10. Can this controller be used for ORP monitoring?

Yes, when configured with an ORP sensor, it can be used for oxidation reduction potential monitoring in disinfection, chlorination, oxidation and chemical treatment applications.

11. Where is RTM-ANL-PHORP-CONT-96FT commonly used?

It is commonly used in ETP, STP, water treatment plants, chemical dosing systems, cooling water treatment, wastewater treatment, process water systems, pharma utilities, food and beverage plants and industrial control panels.

12. Can it be connected to PLC or SCADA?

Yes, the 4 to 20 mA retransmission output can be connected to PLC, SCADA, recorder, indicator or data logging system.

13. What type of sensor is used with this controller?

It is used with a suitable pH sensor or ORP sensor based on the application. Sensor selection depends on measuring parameter, temperature, pressure, mounting connection, body material and cable length.

14. Is this controller suitable for wastewater treatment?

Yes, it is suitable for wastewater treatment because pH and ORP monitoring are important for neutralization, chemical dosing, biological treatment, disinfection and discharge quality.

15. Is this controller suitable for chemical process applications?

Yes, it is suitable for chemical process applications where pH or ORP monitoring is required for process control, dosing control or alarm indication.

16. What is the benefit of front keypad programming?

Front keypad programming makes it easier to adjust calibration, set points and operating parameters directly from the controller without removing the instrument from the panel.

17. Why is pH monitoring important in ETP and STP plants?

pH monitoring helps maintain correct treatment conditions, supports biological and chemical treatment efficiency and helps meet treated water discharge requirements.

18. Why is ORP monitoring important?

ORP monitoring helps indicate the oxidation or reduction condition of water. It is useful in disinfection, chlorination, oxidation control and chemical treatment processes.

19. Can this product be used with a flow cell?

Yes, pH and ORP sensors can be used with a flow cell where inline sample flow measurement is required.

20. Who should buy RTM-ANL-PHORP-CONT-96FT?

This product is suitable for water treatment companies, ETP and STP manufacturers, chemical dosing system makers, panel builders, system integrators, pharma plants, food and beverage plants, textile units, chemical plants and industrial maintenance teams.
