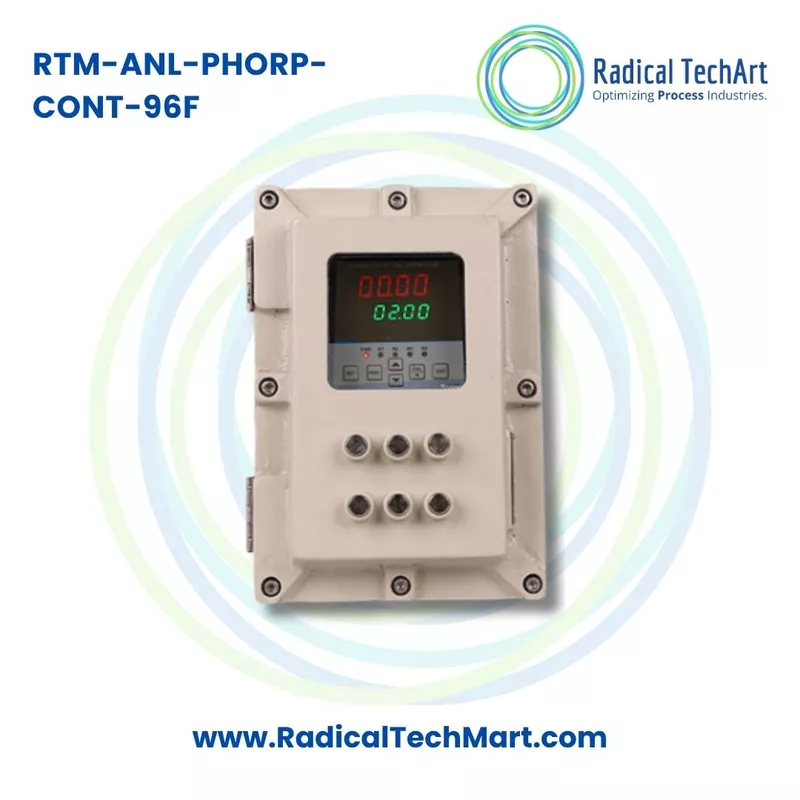

RTM Flameproof pH and ORP Analyzer Controller Box Type
Customize
Share :
A. Product Overview
RTM-ANL-PHORP-CONT-96F is an online pH and ORP Analyzer Controller designed for continuous liquid quality monitoring and control. It is suitable for applications where pH value or ORP value must be measured continuously and controlled through dosing, alarm or automation systems.
The “F” version is positioned as the flame proof body option in the pH and ORP controller range. This makes it suitable for industrial areas where a more rugged enclosure is required compared to regular panel-mounted controllers. It should be selected based on site safety requirements, enclosure requirement and applicable approval needs.
The controller can be used either for pH measurement or ORP measurement depending on the selected configuration and connected sensor. It supports pH measurement from 0 to 14 pH and ORP measurement from minus 2000 to 2000 mV.
RTM-ANL-PHORP-CONT-96F provides relay outputs for dosing control, alarm control and process interlocking. It also supports 4 to 20 mA retransmission output for signal transmission to PLC, SCADA, recorder or remote monitoring system.
B. Working Principle
RTM-ANL-PHORP-CONT-96F works by receiving the signal from a pH sensor or ORP sensor installed in the water line, process tank, flow cell or treatment system.
For pH measurement, the sensor detects hydrogen ion activity in the liquid and produces a millivolt signal. The controller converts this signal into a pH reading. A lower pH value indicates acidic liquid and a higher pH value indicates alkaline liquid.
For ORP measurement, the ORP sensor measures oxidation reduction potential in millivolts. This helps identify whether the liquid has oxidizing or reducing characteristics. ORP measurement is commonly used in disinfection, chemical dosing, chlorination and oxidation control applications.
The controller uses automatic or manual temperature compensation for pH measurement because temperature can affect pH sensor response. The measured value is displayed on the controller and can be used for control action.
When the pH or ORP value crosses the programmed set point, the relay outputs can operate acid dosing pumps, alkali dosing pumps, oxidant dosing systems, alarms, control valves or interlock circuits. The 4 to 20 mA output can send the process value to PLC, SCADA or data recording systems.
C. Why It Is Used
RTM-ANL-PHORP-CONT-96F is used to continuously monitor and control pH or ORP in industrial liquid processes. It helps maintain correct chemical balance, treatment quality and process safety.
In ETP and STP plants, pH control is important for treatment efficiency and discharge compliance. In chemical dosing systems, the controller helps control acid and alkali dosing automatically. In disinfection systems, ORP monitoring helps verify oxidation strength and chemical effectiveness.
The flame proof version is useful in industrial environments where a stronger enclosure or flame proof body option is preferred for process safety. It is especially relevant for chemical plants, hazardous process areas, solvent handling areas, industrial effluent systems and demanding plant conditions.
Main reasons for using RTM-ANL-PHORP-CONT-96F include:
- Continuous online pH and ORP monitoring
- Flame proof body option for industrial process areas
- Automatic acid and alkali dosing control
- ORP monitoring for disinfection and oxidation control
- Relay output for dosing, alarm and interlock operation
- 4 to 20 mA output for PLC, SCADA and recorder integration
- Temperature compensation for stable pH measurement
- Reduced manual testing and operator dependency
- Suitable for water treatment, wastewater and chemical process applications
- Front keypad operation for calibration and set point adjustment
D. Suitable Buyers
RTM-ANL-PHORP-CONT-96F is suitable for customers who need online pH or ORP monitoring with flame proof body option, relay control and analog output.
Suitable buyers include:
- Chemical process industries
- ETP plant manufacturers
- STP plant manufacturers
- Water treatment plant suppliers
- Industrial wastewater treatment plants
- Chemical dosing system manufacturers
- Pharma utility departments
- Food and beverage process plants
- Textile and dyeing industries
- Cooling water treatment companies
- Hazardous area process users
- Panel builders
- Automation system integrators
- PLC and SCADA solution providers
- Environmental monitoring companies
- Maintenance and purchase departments looking for flame proof pH and ORP controllers
FAQ
1. What is RTM-ANL-PHORP-CONT-96F?
RTM-ANL-PHORP-CONT-96F is a flame proof pH and ORP Analyzer Controller used for continuous online pH and ORP measurement, monitoring and control in industrial liquid applications.
2. What does the F indicate in RTM-ANL-PHORP-CONT-96F?
The F indicates the flame proof body option as per the product ordering structure in the catalog.
3. Can this controller measure both pH and ORP?
Yes, the controller family supports pH or ORP operation depending on configuration and connected sensor.
4. What is the pH measuring range?
The pH measuring range is 0 to 14 pH.
5. What is the ORP measuring range?
The ORP measuring range is minus 2000 mV to 2000 mV.
6. Where is RTM-ANL-PHORP-CONT-96F used?
It is used in ETP, STP, water treatment, chemical dosing, cooling water, wastewater treatment, process water, chemical plants and industrial areas where a flame proof body option is required.
7. Does this controller support temperature compensation?
Yes, it supports automatic or manual temperature compensation for pH measurement.
8. Does RTM-ANL-PHORP-CONT-96F have relay output?
Yes, it supports relay outputs for dosing control, alarm operation, pump control and process interlocking.
9. Does this controller provide analog output?
Yes, it supports 4 to 20 mA retransmission output for sending the measured value to PLC, SCADA, recorder or remote display.
10. What is the power supply requirement?
The catalog mentions 90 to 260 VAC power supply and 24 VDC optional power.
11. Can it be used for acid and alkali dosing control?
Yes, it can be used for acid and alkali dosing control by setting low and high pH limits and operating dosing pumps through relay outputs.
12. Can it be used for ORP-based disinfection monitoring?
Yes, when configured for ORP measurement, it can be used for disinfection, oxidation, chlorination and chemical treatment monitoring.
13. Can this controller be connected to PLC or SCADA?
Yes, the 4 to 20 mA retransmission output can be connected to PLC, SCADA, recorder or monitoring systems.
14. What type of sensor is used with this controller?
It is used with a suitable pH sensor or ORP sensor depending on the application. Sensor selection depends on temperature, pressure, liquid compatibility, mounting connection and cable length.
15. Is this controller suitable for wastewater treatment?
Yes, it is suitable for wastewater treatment because pH and ORP control are important for chemical dosing, biological treatment, neutralization and discharge quality.
16. Is RTM-ANL-PHORP-CONT-96F suitable for chemical plants?
Yes, it is suitable for chemical process applications where pH or ORP measurement is required and a flame proof body option is preferred.
17. Why is pH monitoring important in ETP and STP plants?
pH monitoring helps maintain correct treatment conditions, supports biological and chemical treatment efficiency and helps meet discharge requirements.
18. Why is ORP monitoring important?
ORP monitoring helps measure oxidation reduction potential, which is useful in disinfection, chlorination, oxidation control and chemical process monitoring.
19. Does the controller support calibration?
Yes, the catalog mentions programmable pH calibration and front keypad-based parameter setting.
20. Who should buy RTM-ANL-PHORP-CONT-96F?
This product is suitable for chemical plants, ETP and STP manufacturers, water treatment companies, hazardous area users, panel builders, system integrators, pharma plants, food and beverage plants and industrial maintenance teams.
