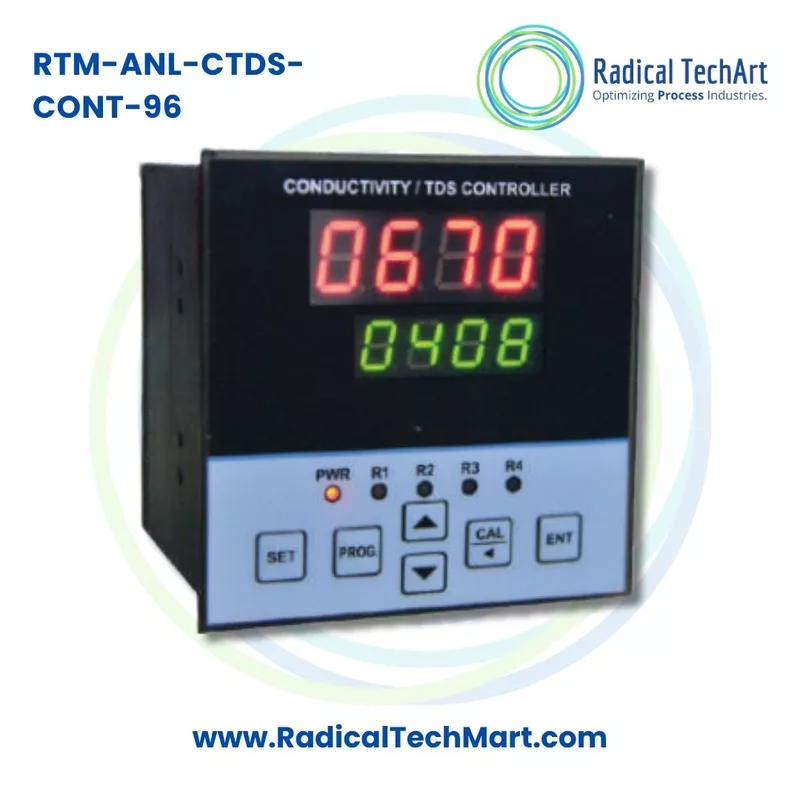

RTM Online Conductivity and TDS Controller 96x96 Panel Mount

A. Product Overview

RTM Online Conductivity and TDS Controller 96x96 Panel Mount is a panel-mounted instrument used to measure and control conductivity or TDS in industrial water systems. It is suitable for applications where continuous monitoring of dissolved solids, water purity and process water quality is required.

The controller is designed in a compact 96x96 mm panel size, making it suitable for electrical panels, RO control panels, water treatment panels and industrial automation panels. It can be configured as a conductivity controller or TDS controller depending on the application requirement.

The instrument accepts conductivity cell input and PT-100 temperature input for temperature compensation. It provides relay output for control action, 4 to 20 mA analog output for signal transmission and RS-485 Modbus RTU communication for integration with PLC, SCADA and remote monitoring systems.

This makes the RTM Online Conductivity and TDS Controller useful for both standalone control and plant-level automation.

B. Working Principle

The RTM Online Conductivity and TDS Controller works by taking input from a conductivity cell installed in the water or process liquid line. The conductivity cell measures the electrical conductivity of the liquid, which indicates the concentration of dissolved ions present in the water.

Higher conductivity generally means higher dissolved solids, salts or mineral content. Lower conductivity generally indicates purer water with fewer dissolved solids.

The controller receives the signal from the conductivity cell and converts it into a displayed conductivity or TDS value. With PT-100 temperature input, the controller can compensate for temperature variation because conductivity readings change with liquid temperature.

Based on the programmed set points, the controller can activate relay outputs for control functions such as dosing, flushing, blowdown, alarm indication or process interlocking. The 4 to 20 mA output can be connected to PLC, recorder or control system, while RS-485 Modbus RTU can be used for digital communication and online data monitoring.

C. Why It Is Used

RTM Online Conductivity and TDS Controller is used to maintain correct water quality in industrial and process applications. It helps operators continuously monitor conductivity and TDS instead of relying only on manual testing.

It is commonly used to check whether water quality is within the required limit. In RO plants, it helps monitor treated water quality and reject water condition. In ETP and STP plants, it helps track dissolved solids in process and treated water. In cooling towers and boiler water systems, it helps control dissolved solids to reduce scaling, corrosion and water wastage.

The controller is useful where automatic control is required. Relay outputs can be used for alarm or control operation, while analog and RS-485 outputs help connect the instrument with automation systems.

Main reasons for using this controller include:

1. Continuous online conductivity and TDS monitoring
2. Better control of RO, ETP, STP and WTP water quality
3. Reduced manual checking and operator dependency
4. Relay-based control for alarm, dosing or blowdown
5. Integration with PLC, SCADA and data logging systems
6. Temperature-compensated measurement using PT-100 input
7. Compact 96x96 panel-mount design for control panels

D. Suitable Buyers

RTM Online Conductivity and TDS Controller 96x96 Panel Mount is suitable for customers who need online water quality measurement and control in industrial or commercial systems.

Suitable buyers include:

1. RO plant manufacturers
2. Water treatment plant suppliers
3. ETP and STP plant manufacturers
4. WTP plant operators
5. Cooling tower maintenance teams
6. Boiler water treatment service providers
7. Pharma and chemical industries
8. Food and beverage processing plants
9. Textile and dyeing industries
10. Panel builders and system integrators
11. OEM machine manufacturers
12. Industrial automation contractors
13. Maintenance and utility departments
14. Process water treatment companies

This product is especially suitable for buyers looking for an online conductivity and TDS controller with panel mounting, relay control, analog output and communication support.

FAQ

1. What is RTM Online Conductivity and TDS Controller 96x96 Panel Mount?

RTM Online Conductivity and TDS Controller 96x96 Panel Mount is an industrial controller used for continuous conductivity and TDS measurement in water treatment and process water applications. It is installed in a control panel and connected with a conductivity sensor.

2. Where is this conductivity and TDS controller used?

It is used in RO plants, ETP plants, STP plants, WTP systems, cooling towers, boiler water systems, process water lines, chemical dosing systems and industrial water quality monitoring panels.

3. Can this instrument work as both conductivity controller and TDS controller?

Yes, the controller can be used for conductivity measurement or TDS measurement depending on the configuration and application requirement.

4. What is the panel size of this controller?

The controller has a 96x96 mm front size with a panel cutout size of approximately 92x92 mm, making it suitable for standard industrial control panels.

5. Does it support temperature compensation?

Yes, the controller supports PT-100 temperature input for temperature compensation. This helps improve measurement stability because conductivity values are affected by temperature changes.

6. What output options are available in this controller?

The controller supports relay output for control action, 4 to 20 mA analog output for signal transmission and RS-485 Modbus RTU for digital communication.

7. Can this controller be connected to PLC or SCADA?

Yes, it can be connected to PLC, SCADA, recorder or monitoring system using 4 to 20 mA analog output or RS-485 Modbus RTU communication.

8. What are the available conductivity ranges?

The controller supports factory-set conductivity ranges such as 0 to 10 uS, 0 to 200 uS, 0 to 2000 uS and 0 to 20 mS, depending on the selected application and sensor configuration.

9. Why is conductivity and TDS monitoring important in RO plants?

Conductivity and TDS monitoring helps check water quality before and after RO treatment. It helps identify membrane performance, water purity, reject water condition and treated water quality.

10. Can this controller be used for cooling tower blowdown control?

Yes, it can be used in cooling tower water systems to monitor dissolved solids and control blowdown through relay output when conductivity or TDS exceeds the set limit.

11. Is this controller suitable for boiler water monitoring?

Yes, it is suitable for boiler water and feed water monitoring where conductivity or TDS control is required to reduce scaling, corrosion and water quality issues.

12. What type of sensor is used with this controller?

The controller is used with a conductivity cell. The suitable cell constant and sensor material should be selected based on the application, range and liquid compatibility.

13. What is the power supply requirement?

The controller supports a wide power supply range of 90 to 260 VAC at 50 Hz, making it suitable for industrial panel applications.

14. Is this product suitable for online measurement?

Yes, this is an online conductivity and TDS controller designed for continuous measurement, control and monitoring in industrial water systems.

15. Who should buy this product?

This product is suitable for RO plant manufacturers, water treatment companies, panel builders, system integrators, utility departments, pharma plants, chemical plants, food processing units and industrial maintenance teams.
