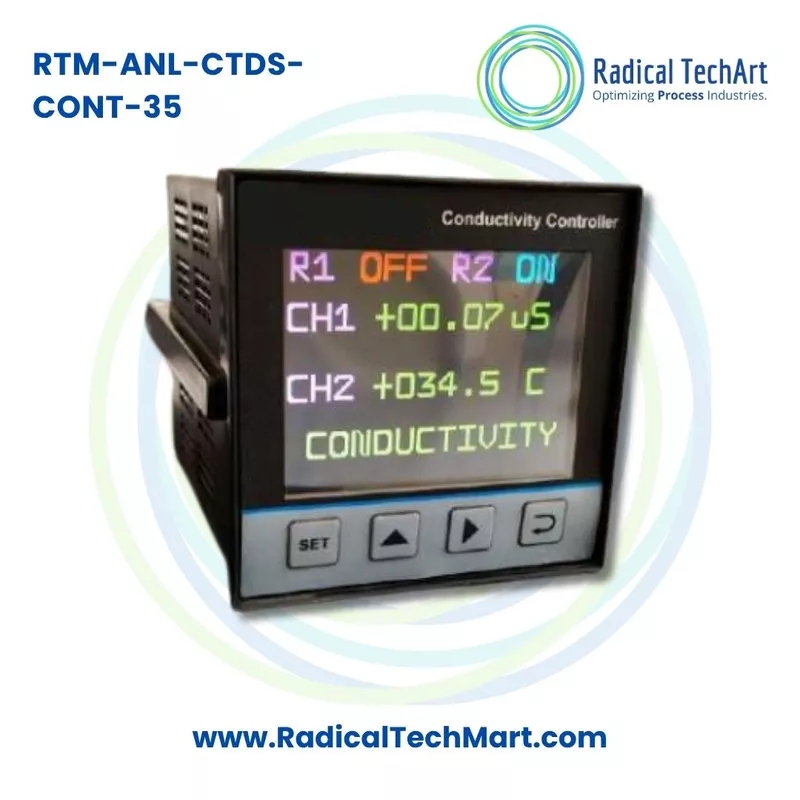

RTM Online Conductivity and TDS Controller with 3.5 Inch LCD
Customize
Share :
A. Product Overview
RTM-ANL-CTDS-CONT-35 is an online Conductivity and TDS Analyzer Controller designed for industrial water quality monitoring and control. It is a single-channel panel mount controller used to measure conductivity and TDS values continuously in water treatment and process water systems.
The controller comes in a 96 x 96 mm panel size, making it suitable for RO control panels, water treatment panels, dosing panels, process automation panels and utility monitoring systems. Its 3.5 inch LCD display allows users to view conductivity and TDS readings clearly during operation.
The instrument supports measurement units such as uS, mS and PPM TDS, depending on the selected range and application. It can be connected with suitable conductivity sensor cells such as 0.01K, 0.1K, 1K and 10K cell options based on the required measuring range.
RTM-ANL-CTDS-CONT-35 is suitable for online monitoring, relay-based control and signal transmission to industrial control systems using analog output.
B. Working Principle
RTM-ANL-CTDS-CONT-35 works by receiving a signal from a conductivity sensor installed in the water line, tank or process liquid system. The conductivity sensor detects the electrical conductivity of the liquid.
Conductivity increases when the amount of dissolved salts, minerals and ions in the water increases. Based on this conductivity value, the controller can also represent the measurement in TDS form as PPM.
The controller processes the sensor signal and displays the measured value on the 3.5 inch LCD screen. The automatic temperature compensation function helps improve measurement stability because conductivity readings change with liquid temperature.
The user can set control limits as per the required water quality range. When the measured conductivity or TDS value crosses the set point, the relay output can operate connected devices such as alarms, dosing pumps, blowdown valves, flushing valves or control circuits.
The 4 to 20 mA analog output can be used to send the measured value to PLC, recorder, data logger, remote display or automation panel.
C. Why It Is Used
RTM-ANL-CTDS-CONT-35 is used to continuously monitor and control water quality in industrial applications. It helps users track dissolved solids and conductivity levels without depending only on manual testing.
In RO plants, the controller helps monitor feed water, treated water and reject water quality. In ETP and STP systems, it helps check process water and treated water conditions. In cooling towers and boiler water systems, it helps maintain dissolved solids within limits to reduce scaling, corrosion and water wastage.
It is also useful for automation because relay output can be used for control action and analog output can be connected with monitoring or control systems.
Main reasons for using RTM-ANL-CTDS-CONT-35 include:
- Continuous online Conductivity and TDS monitoring
- Real-time water quality measurement
- Better control of RO, ETP, STP and WTP systems
- Relay output for alarm, dosing, blowdown or flushing control
- Analog output for PLC, recorder and automation panel integration
- Automatic temperature compensation for stable measurement
- 96 x 96 panel mount design for industrial control panels
- Clear 3.5 inch LCD display for easy reading
D. Suitable Buyers
RTM-ANL-CTDS-CONT-35 is suitable for buyers who need online Conductivity and TDS monitoring with control output and panel mounting.
Suitable buyers include:
- RO plant manufacturers
- Water treatment plant suppliers
- ETP plant manufacturers
- STP plant manufacturers
- WTP system integrators
- Cooling tower maintenance teams
- Boiler water treatment service providers
- Industrial panel builders
- Automation system integrators
- OEM machine manufacturers
- Pharma industry utility departments
- Chemical process industries
- Food and beverage plants
- Textile and dyeing industries
- Maintenance and purchase departments
- Industrial water quality monitoring companies
FAQ
1. What is RTM-ANL-CTDS-CONT-35?
RTM-ANL-CTDS-CONT-35 is an online Conductivity and TDS Analyzer Controller used for continuous water quality monitoring and control in industrial applications.
2. What is the display type of RTM-ANL-CTDS-CONT-35?
RTM-ANL-CTDS-CONT-35 has a 3.5 inch LCD display for easy reading of Conductivity and TDS values.
3. What is the panel size of this controller?
The controller has a 96 x 96 mm panel mount size, suitable for industrial electrical and automation panels.
4. Is RTM-ANL-CTDS-CONT-35 a single-channel controller?
Yes, RTM-ANL-CTDS-CONT-35 is a single-channel Conductivity and TDS Analyzer Controller.
5. What parameters can this controller measure?
It can measure conductivity and TDS values in water and process liquid applications.
6. What units are supported by this controller?
The controller supports measurement in uS, mS and PPM TDS, depending on the selected range and configuration.
7. Does this controller support relay output?
Yes, it supports relay output for control applications such as alarm, dosing, flushing and blowdown control.
8. Does RTM-ANL-CTDS-CONT-35 have analog output?
Yes, it supports 4 to 20 mA analog output option for connecting the reading to PLC, recorder, remote display or monitoring system.
9. Does it support temperature compensation?
Yes, the controller supports automatic temperature compensation to improve measurement stability.
10. Where is RTM-ANL-CTDS-CONT-35 used?
It is used in RO plants, ETP, STP, WTP, cooling towers, boiler water systems, process water systems and industrial water treatment panels.
11. Is this controller suitable for RO plants?
Yes, it is suitable for RO plants because it helps monitor feed water, treated water and reject water conductivity and TDS levels.
12. Can this controller be used for cooling tower blowdown control?
Yes, the relay output can be used for cooling tower blowdown control based on conductivity or TDS set point.
13. Can it be used in boiler water applications?
Yes, it can be used for boiler water and feed water monitoring where conductivity and dissolved solids control are required.
14. What type of sensor is used with this controller?
It is used with a conductivity sensor cell. Suitable cell options can be selected as per the required measurement range and application.
15. Who should buy RTM-ANL-CTDS-CONT-35?
This product is suitable for RO plant manufacturers, water treatment companies, panel builders, system integrators, utility departments, pharma plants, chemical plants and industrial maintenance teams.
