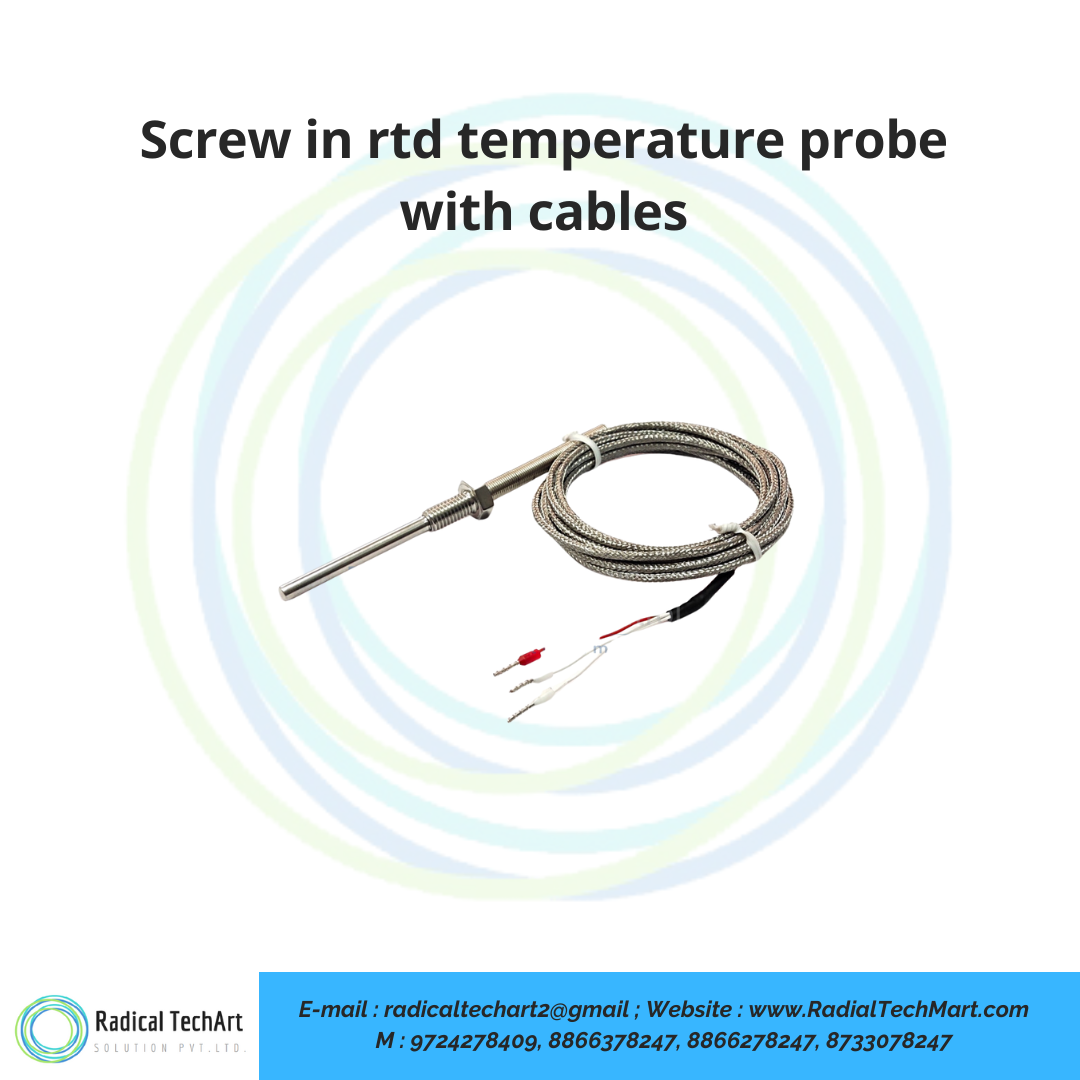

Screw-In RTD Temperature Probe with Cable | Pt100 Sensor

A. Product Overview

The Screw-In RTD Temperature Probe with Cables is used for direct and stable temperature measurement in industrial applications where a strong process connection is required. It is suitable for measuring temperatures in liquid and gaseous media, as well as direct surface or housing measurement in machinery, bearing housings and machine assemblies.

This sensor is commonly used in machinery, plant measurement, vessel measurement, tank measurement, industrial process control and pharmaceutical applications. It is available with metric and imperial threaded connections, helping create reliable sealing for vacuum and pressurised applications.

Key Specifications

Element: Pt100 Simplex
Temperature Range: -50 to 500 °C
Tip: 5 mm diameter and 50 mm length optional
Connection: M8 optional
Wire Length: 0.5 meter to 5 meter
Accuracy: Class A or Class B as per IEC-60751

B. Working Principle

The Screw-In RTD Temperature Probe works on the resistance temperature detector principle. The Pt100 element inside the sensor changes its electrical resistance according to the temperature.

When the sensor tip comes in contact with the liquid, gas, machine body, bearing housing or process area, it senses the temperature and sends the resistance signal through the cable to a temperature controller, indicator, transmitter or monitoring system. The connected device then converts this resistance value into a temperature reading.

The screw-in threaded connection ensures firm installation, good contact and stable measurement in industrial environments.

C. Why It Is Used

This sensor is used when accurate, stable and long-term temperature measurement is required in industrial systems. The screw-in design provides a robust connection and helps prevent loose fitting, leakage or unstable readings.

It is preferred because it can be used for both liquid and gas temperature measurement and can also be installed in machinery and process assemblies. It is suitable for applications where temperature needs to be monitored in tanks, vessels, pipelines, bearings, machine housings, pharmaceutical equipment and process control systems.

Main Benefits

Reliable temperature measurement in liquids and gases
Strong screw-in threaded process connection
Suitable for vacuum and pressurised applications
Pt100 simplex element for accurate sensing
Class A or Class B accuracy options
Useful for machinery, vessels, tanks and industrial process control
Available with different wire lengths and connection options

D. Suitable Buyers

This Screw-In RTD Temperature Probe with Cables is suitable for:

Industrial machinery manufacturers
Pharmaceutical companies
Process industries
Chemical plants
Food processing plants
HVAC system manufacturers
Tank and vessel manufacturers
Plant maintenance teams
Automation system integrators
OEM machine builders
Panel builders
Temperature controller users
Utility and facility maintenance teams

FAQ

1. What is a Screw-In RTD Temperature Probe with Cables?

A Screw-In RTD Temperature Probe with Cables is a temperature sensor used to measure temperature in liquids, gases, machinery, bearing housings, vessels and tanks. It uses a Pt100 RTD element and comes with a cable for connection to a temperature controller or monitoring device.

2. Where is this RTD temperature probe used?

It is used in machinery, plant measurement, vessel measurement, tank measurement, industrial process control, pharmaceutical applications, vacuum systems and pressurised applications.

3. What is the temperature range of this sensor?

The temperature range of this Screw-In RTD Temperature Probe is -50 to 500 °C.

4. Which sensing element is used in this probe?

This probe uses a Pt100 Simplex RTD element for accurate and reliable temperature measurement.

5. Why is a screw-in connection useful?

A screw-in connection provides a strong and stable mounting arrangement. It helps create a reliable seal and ensures proper contact with the process area for better temperature measurement.

6. Can this sensor be used for liquids and gases?

Yes, this sensor is suitable for measuring temperature in both liquid and gaseous media.

7. Is this sensor suitable for pressurised applications?

Yes, screw-in temperature sensors are commonly used in vacuum and pressurised applications where a reliable threaded seal is required.

8. What accuracy options are available?

This sensor is available in Class A or Class B accuracy as per IEC-60751.

9. What wire length is available?

The available wire length is 0.5 meter to 5 meter, depending on the application requirement.

10. Who should buy this Screw-In RTD Temperature Probe?

This product is suitable for OEMs, machine builders, pharmaceutical companies, process industries, maintenance teams, automation engineers, tank manufacturers and industrial temperature monitoring users.
