Selec MiBRX 96X96 Modular PLC

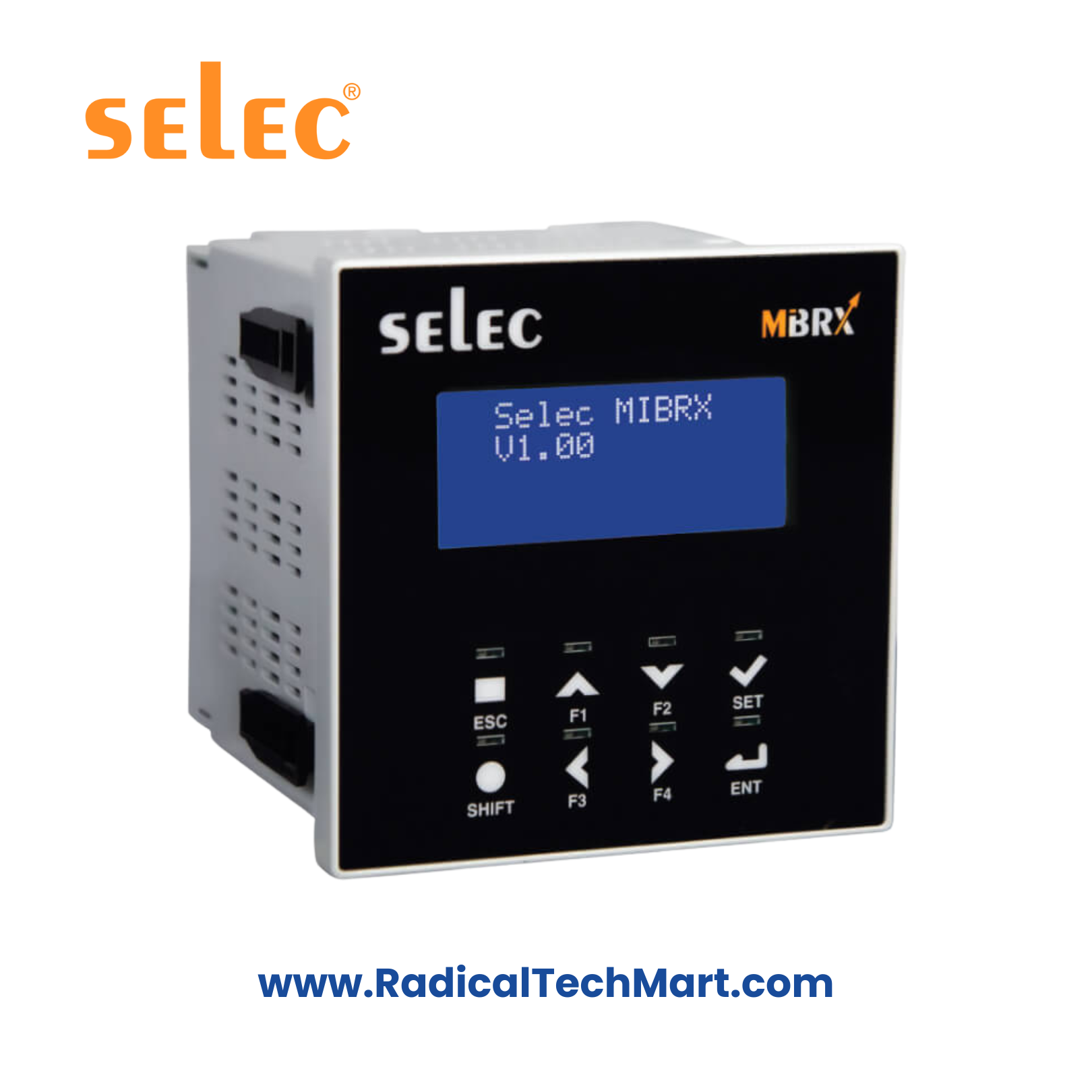

Selec MiBRX-96×96 Modular PLC Base Module – 230V / 24VDC, 6-Slot Micro Modular PLC
High-capacity 96×96 mm modular PLC with 6 I/O slots, pluggable displays, RS485 Modbus Master/Slave, high-speed inputs, RTC, and support for multiple IO expansion modules—ideal for complex OEM automation applications.
Customize
Share :
The Selec MiBRX-96×96 Modular PLC is a high-performance micro-PLC built for advanced OEM applications requiring large I/O flexibility, expansion modules, pluggable displays, RS485 Master/Slave communication, datalogging, and inline control logic. With six expansion slots and a 96×96 mm footprint, it is ideal for complex industrial automation architectures.
Key Features
Modular PLC with 6 I/O expansion slots
Supports multiple pluggable display modules, including a 4-line LCD & speedometer/bargraph display
RS485 Modbus RTU – Slave + Master port for IO expansion modules
4 DI (230V model) or 6 DI (24VDC model), including 1 fast 5 kHz input and 1 analog-voltage input
Integrated NTC input, RTC with ±4 seconds/day drift
240 KB program memory, 32 KB data memory
High-speed scan time: min 200 µs
Support for wide IO card ecosystem (digital, analog, PT1000, TC, RTD, load cell, AO, fast I/O, Wi-Fi, datalogging)
Panel-mount with IP65 front protection
Windows-based SelPro software for ladder logic and HMI configuration
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Options | LCD 16×4, LCD 16×2, Custom 14/7 segment with speedometer/bargraph |
| I/O Slots | 6 |
| Digital Inputs | 4 DI (230V) / 6 DI (24VDC), includes 1 fast input |
| Fast Input Speed | 5 kHz |
| Analog Inputs | 1 NTC + 1 AI-V (0–10V) + expandable via cards |
| Analog Accuracy | ±0.25% FS ±1 count |
| Relay Outputs | As per IO card configuration (2–5 relays) |
| Digital (Transistor) Outputs | As per IO card configuration (4 transistor outputs) |
| Analog Outputs | Available via AO cards (0–10V / 0–20mA) |
| Communication | RS485 Slave + RS485 Master (RJ25) |
| RTC | Yes, ±4 sec/day |
| Memory | 240 KB program, 32 KB data, 8 KB EEPROM |
| Scan Time | Min 200 µs, Typical 1 ms |
| Supply Voltage | 180–270V AC (230V model) / 18–30V DC (24V DC model) |
| Power Consumption | 12 VA (AC) / 12 W (DC) |
| Operating Temperature | 0–55°C |
| IP Rating | IP65 front, IP20 terminals |
| Dimensions | 99 × 99 × 99 mm |
| Weight | 330 g |
Applications
Industrial OEM machinery
Process automation systems
Packaging & material handling machines
HVAC & environmental control
SCADA-ready PLC architectures
Multi-point sensor/actuator control
Data-logging and intelligent monitoring systems
What’s in the Box?
MiBRX-96×96 PLC Base Module
Pluggable terminal connectors
User manual (digital)
Warranty card
FAQ
Q1. How many I/O cards can be installed?
Up to 6 slot cards can be installed.
Q2. Does it support Modbus RTU Master & Slave?
Yes, one RS485 slave and one RS485 master port (RJ25) are available.
Q3. Is datalogging supported?
Yes, if the optional MiBRX-SC-DL (2MB + RTC) card is installed.
Q4. Can fast inputs be used for encoders?
Yes, the fast input supports encoder modes: uni/bidirectional, quadrature, and dual-uni at 5 kHz.
Q5. Is the front panel sealed?
The front fascia has IP65 protection.
Q6. What is the difference between 230V & 24VDC variants?
230V model: 4 DI
24VDC model: 6 DI + 1 AI-I
Both include NTC and RTC.
