Selec PIC101N 4-Digit Process Indicator with Universal Input

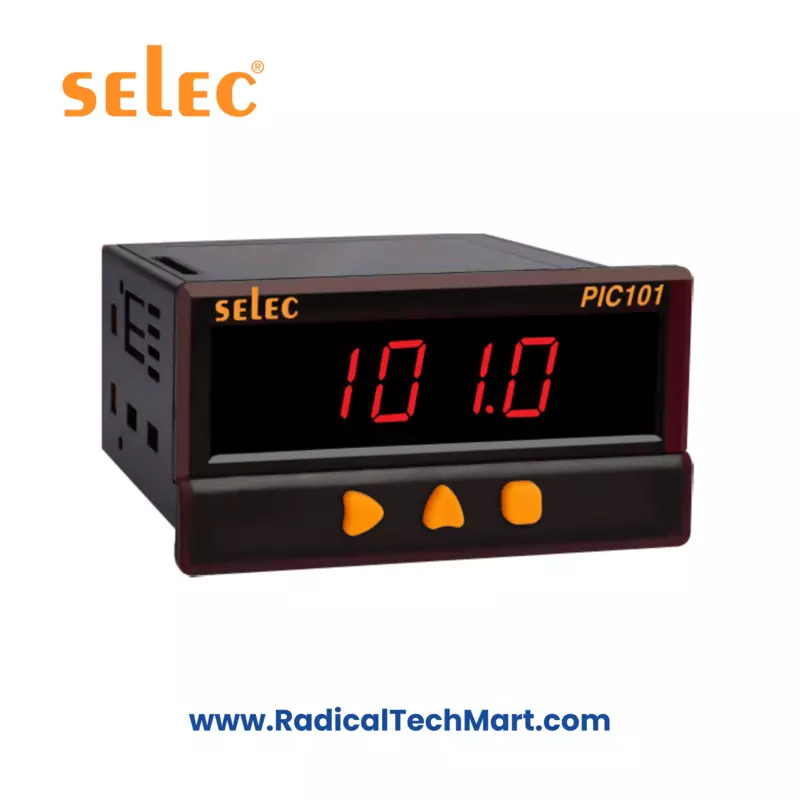

Selec PIC101N Universal Process Indicator – 48×96 mm, 4-Digit LED, 24V Sensor Supply
Compact universal process indicator with TC/RTD/analog input support, 4-digit LED display, 24V DC transmitter supply, scalable analog indication, and 90–270V AC/DC or 24V DC supply options. Ideal for temperature, pressure, flow, and level monitoring.
The Selec PIC101N is a basic yet highly reliable universal process indicator designed for monitoring temperature, pressure, flow, level, and general analog signals. It features a bright 4-digit display, universal input capability, a 24V sensor supply for transmitters, scalable analog indication, and support for AC/DC and 24V supplies.
KEY FEATURES
4-digit, 7-segment LED single display (12.7 mm height)
Universal input: TC (J, K, T, R, S), RTD PT100, analog (0–56 mV, 0–10 V, 0/4–20 mA)
24V DC sensor supply (30 mA)
°C/°F selectable temperature indication
Scalable analog indication (0.001 to 1 resolution)
90–270 VAC/DC wide-range supply; 24V DC optional
Compact 48×96 mm panel size
Basic fail-safe and alarm capabilities through relay (varies with panel setup)
TECHNICAL SPECIFICATIONS
Display Specifications
Parameter Value Display 4-digit, 7-segment LED Height 12.7 mm Temperature Unit °C / °F selectable
| Parameter | Value |
|---|---|
| Display | 4-digit, 7-segment LED |
| Height | 12.7 mm |
| Temperature Unit | °C / °F selectable |
Input Specifications
Parameter Value Thermocouple J, K, T, R, S RTD PT100 (3-wire) Analog Inputs 0–56 mV, 0–10 V, 0/4–20 mA Resolution 1/0.1° for TC/RTD; 1/0.1/0.01/0.001 for analog Accuracy 0.25% of span ±1°C after 20 min warm-up
| Parameter | Value |
|---|---|
| Thermocouple | J, K, T, R, S |
| RTD | PT100 (3-wire) |
| Analog Inputs | 0–56 mV, 0–10 V, 0/4–20 mA |
| Resolution | 1/0.1° for TC/RTD; 1/0.1/0.01/0.001 for analog |
| Accuracy | 0.25% of span ±1°C after 20 min warm-up |
Output / Sensor Supply
Parameter Value Sensor Supply 24V DC, 30 mA (built-in) Output Type (Process indication only; no relay output in PIC101N)
| Parameter | Value |
|---|---|
| Sensor Supply | 24V DC, 30 mA (built-in) |
| Output Type | (Process indication only; no relay output in PIC101N) |
Electrical Specifications
Parameter Value Supply Voltage 90–270 VAC/DC (50/60 Hz); Optional 24V DC Power Consumption 5 VA max @ 230 VAC
| Parameter | Value |
|---|---|
| Supply Voltage | 90–270 VAC/DC (50/60 Hz); Optional 24V DC |
| Power Consumption | 5 VA max @ 230 VAC |
Environmental Conditions
| Parameter | Value |
|---|---|
| Operating Temp | 0°C to 50°C |
| Storage Temp | −20°C to 75°C |
| Humidity | 95% RH (non-condensing) |
Mechanical Specifications
Parameter Value Panel Size 48 × 96 mm Overall Dimensions 97.5 × 50 × 88 mm Panel Cutout 92 × 46 mm Weight 250 g Mounting Panel mount
| Parameter | Value |
|---|---|
| Panel Size | 48 × 96 mm |
| Overall Dimensions | 97.5 × 50 × 88 mm |
| Panel Cutout | 92 × 46 mm |
| Weight | 250 g |
| Mounting | Panel mount |
Compliance
Meets IEC 61326-1 EMC standards:
ESD immunity (IEC 61000-4-2)
Surge immunity (IEC 61000-4-5)
Radiated & conducted susceptibility (IEC 61000-4-3 / -4-6)
Voltage dips/interruptions (IEC 61000-4-11)
Conducted & radiated emissions (CISPR-11)
EFT / Burst immunity (IEC 61000-4-4)
APPLICATIONS
Temperature indication (TC/RTD)
4–20 mA transmitter display (pressure, flow, level, humidity sensors)
Machine status indication
Industrial control panels
Test benches
HVAC process monitoring
WHAT’S IN THE BOX
PIC101N process indicator
Panel clamps
Instruction manual
Warranty card
FAQS
Q1. What input types does PIC101N support?
TC (J, K, T, R, S), RTD PT100, and analog 0–56 mV / 0–10 V / 4–20 mA.
Q2. Does it provide a 24V sensor supply?
Yes—24V DC, 30 mA.
Q3. Does PIC101N have relay outputs?
No—PIC101N is an indicator only.
Q4. Does it support °C and °F?
Yes—the temperature unit is selectable.
Q5. What power supply options are available?
90–270 VAC/DC or 24V DC model.
Q6. What is the panel cutout size?
92 × 46 mm.
