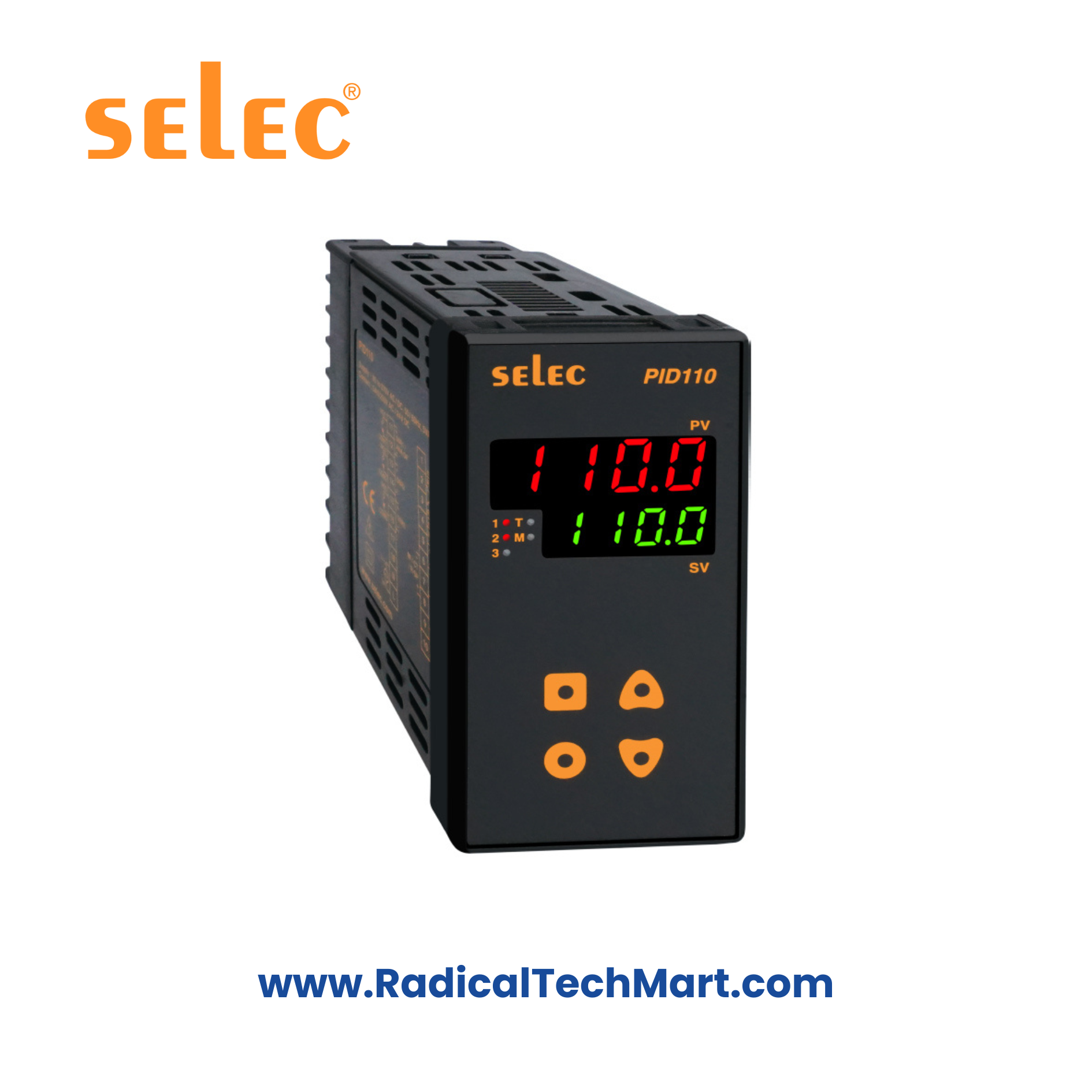

Selec PID110 Temperature Controller
Selec PID110 Advanced PID Temperature Controller – Universal Input, Dual Display (96×48 mm)
Industrial PID/ON-OFF temperature controller with universal TC/RTD/analog inputs, dual 4+4 digit LED display, heat–cool mode, ramp–soak, soft start, dual alarms, selectable outputs, and optional RS485 Modbus.
Customize
Share :
The Selec PID110 is a universal industrial PID temperature controller designed for high-accuracy process control. With dual 4-digit displays, support for thermocouples, RTD PT100, and analog inputs, plus PID/ON-OFF mode, heat–cool action, ramp–soak, and soft-start, it is ideal for heaters, ovens, furnaces, extruders, packaging machines, and industrial process panels.
Key Features
Dual 4+4 digit LED display, upper 10 mm, lower 7 mm
Universal input: TC (J, K, T, R, S, C, E, B, N, L, U, W, Platinel II), RTD PT100, analog –5 to 56 mV / 0–10 V / 0–20 mA
Control modes: PID (Auto-tune), ON–OFF
Heat–Cool PID function with independent settings
Ramp-soak & soft-start capability
Dual alarm outputs (relay) with selectable modes
Selectable resolution: 1°/0.1° for TC/RTD, 1/0.1/0.01/0.001 for analog
Fast sampling time: 200 ms
Input filter: FTC adjustable 1–99 sec
Output options: Relay, SSR drive, 4–20 mA, 0–10 V
Optional RS485 Modbus RTU
Universal supply: 90–270V AC/DC
Technical Specifications
Display Specifications
| Parameter | Value |
|---|---|
| Display | Dual 4+4-digit, 7-segment LED |
| Upper/Lower Height | 10 mm / 7 mm |
| LED Indicators | Output 1, Output 2, Manual mode, Alarm, Tune |
Input Specifications
| Parameter | Value |
|---|---|
| TC Types | J, K, T, R, S, C, E, B, N, L, U, W, Platinel II |
| RTD | PT100 |
| Analog Inputs | –5 to 56 mV, 0–10 V, 0–20 mA |
| Resolution | 1°/0.1° for TC/RTD; 1/0.1/0.01/0.001 for analog |
| Accuracy | |
| – TC: 0.25% FS ±1° | |
| – R/S: 0.5% FS ±2° (20 min warm-up) | |
| – RTD: 0.1% FS ±1° | |
| – Analog: ±0.5% FS ±1 digit | |
| Temperature Unit | °C/°F selectable |
| Input Filter FTC | 1–99 sec |
| Sampling Time | 200 ms |
Output Specifications
Control Output Options
| Output Type | Rating |
|---|---|
| Relay (SPST) | 5A at 230VAC / 30VDC |
| SSR Drive | 12 VDC, 20 mA |
| Analog Output | 0–10 VDC (10 kΩ min load), 4–20 mA (500 Ω max) |
Auxiliary Output (Optional)
Relay SPST 5A or SSR drive 12VDC, 20 mA
Functional (PID + Heat–Cool)
| Function | Range |
|---|---|
| Control Modes | PID / ON-OFF |
| Proportional Band (P) | 0.0–400.0°C |
| Integral Time (I) | 0–3600 sec |
| Derivative Time (D) | 0–200 sec |
| Cycle Time | 0.1–100 sec |
| Hysteresis Width | 0.1–99.9°C |
| Manual Reset | –99.9 to +19.9°C |
| Heat–Cool Proportional Band | 0.0–400.0°C |
| Heat–Cool Cycle Time | 0.1–100 sec |
| Dead Band | Settable from SP Low to SP High |
Alarm Settings
| Parameter | Value |
|---|---|
| Alarm Modes | Deviation High/Low, Absolute High/Low, Band, Sensor Break |
| Hysteresis | 0.1–99.9°C |
| Ramp Rate | 1–9999°/hr |
| Soak Time | 0–1440 min |
| Soft Start | 0–999 min |
Electrical & Environmental
| Parameter | Value |
|---|---|
| Supply | 90–270V AC/DC |
| Power Consumption | 5 VA max at 230 V |
| Operating Temp | 0°C to 50°C |
| Storage Temp | –20°C to 75°C |
| Humidity | 85% RH non-condensing |
| Weight | 250 g |
Mechanical & Mounting
| Parameter | Value |
|---|---|
| Panel Size | 96×48 mm |
| Cutout | 92×45 mm |
| Depth | 74.5 mm |
| Mounting | Panel |
Applications
Industrial heaters
Extruders & injection moulding machines
Furnaces, ovens, kilns
Packaging & sealing machines
Food processing
Scientific chambers
General process temperature control
What’s in the Box?
Selec PID110 controller
Panel mounting clamps
User manual
Warranty card
FAQs
Q1. Does PID110 support both TC and RTD sensors?
Yes—it supports J, K, T, R, S, C, E, B, N, L, U, W TC, and PT100 RTD.
Q2. Is PID auto-tuning available?
Yes—PID with Auto-Tune capability.
Q3. Does PID110 support heat–cool mode?
Yes—independent proportional bands and cycle times for heat & cool.
Q4. Is RS485 Modbus available?
Yes—in model PID110-2-0-04.
Q5. How many relay outputs are available?
Up to 3 relays depending on the ordering code.
Q6. What is the panel cutout size?
92×45 mm.
