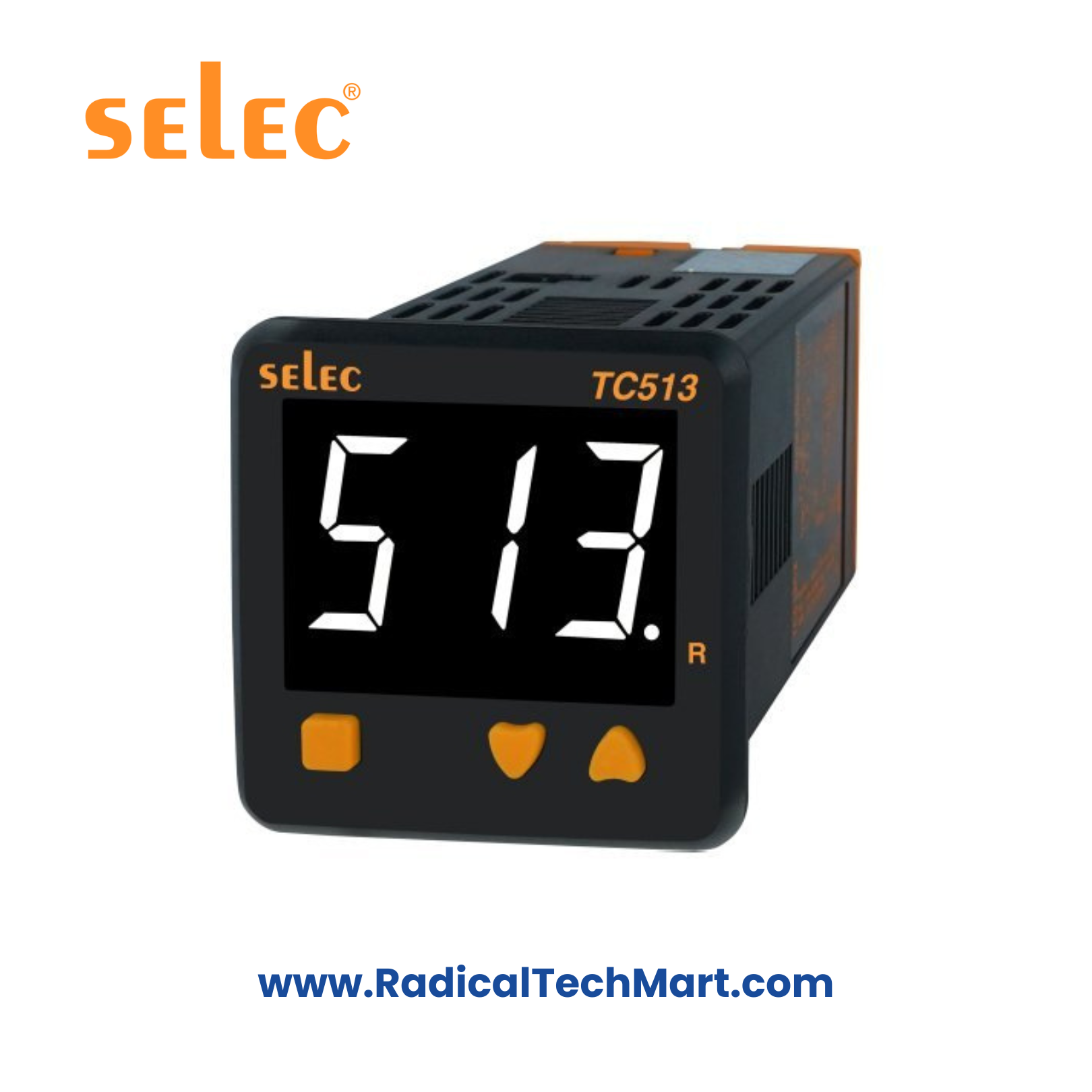

The Selec TC513CX is a compact 48×48 mm temperature controller supporting thermocouple (J, K, T, R, S) and RTD PT100 inputs. It provides ON-OFF or full PID control with auto/self-tuning, field-selectable relay or SSR output, 1° resolution, and a universal AC/DC supply. Ideal for industrial temperature regulation applications requiring fast response and high reliability.
Key Features
3-digit, 7-segment LED display, 10 mm height
Supports TC (J, K, T, R, S) & RTD (PT100) inputs
PID (auto/self-tuning) or ON-OFF control
Single set point operation
Field-selectable output: Relay or SSR (12VDC, 30 mA)
Resolution: Fixed 1°C
Proportional Band (P): 1 to 400°C
Integral Time (I): 0.0 to 99.9 min
Derivative Time (D): 0 to 999 sec
Cycle Time: 0.1 to 99.9 sec
Hysteresis width: 0.1 to 99.9°C
Manual reset: –19.9 to 19.9°C/°F
Input filter (FTC): 0.2 to 10.0 sec
Sampling time: 250 ms
Universal supply: 90–270V AC/DC, 6 VA max
CE Certified
Technical Specifications
Display Specifications
| Parameter | Value |
|---|---|
| Display | 3-digit, 7-segment LED |
| Digit Height | 10 mm |
| Indication LED | R (Control Output ON) |
Input Specifications
| Parameter | Value |
|---|---|
| Input Types | TC: J, K, T, R, S; RTD PT100 |
| Resolution | 1°C |
| Accuracy | |
| • J, K, T: 0.25% FS ±1°C | |
| • R, S: 0.5% FS ±2°C (20-min warm-up) | |
| • RTD: 0.1% FS ±1°C | |
| Temp Unit | °C/°F selectable |
| Input Filter | 0.2–10 sec |
| Sampling Time | 250 ms |
Control Output Specifications
| Output Type | Specification |
|---|---|
| Relay Output (SPDT) | NO: 10A @ 250VAC / 24VDC; NC: 5A @ 250VAC / 24VDC |
| SSR Drive | 12 VDC, 30 mA |
Functional Specifications
| Function | Range |
|---|---|
| Control Modes | PID (auto/self-tuning), ON-OFF |
| Proportional Band (P) | 1–400°C |
| Integral Time (I) | 0.0–99.9 min |
| Derivative Time (D) | 0–999 sec |
| Cycle Time | 0.1–99.9 sec |
| Hysteresis | 0.1–99.9°C |
| Manual Reset | –19.9 to 19.9°C/°F |
Environment Specifications
| Parameter | Value |
|---|---|
| Operating Temp | 0–50°C |
| Storage Temp | –20 to +75°C |
| Humidity | 95% RH non-condensing |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Panel Size | 48×48 mm |
| Cutout | 46 × 46 mm |
| Depth | 90.5 mm |
| Weight | 111 g |
Applications
Heating systems
Ovens, furnaces, kilns
Packaging machines
Plastic processing (barrel, mold temp control)
Food & beverage temperature control
HVAC temperature regulation
Industrial test benches
What’s in the Box?
Selec TC513CX temperature controller
Mounting clamps
Instruction manual
Warranty card
FAQs
Q1. Does the TC513CX support both TC and RTD sensors?
Yes—it supports J, K, T, R, S TC, and PT100 RTD inputs.
Q2. Can I select between relay and SSR output?
Yes—output is field-selectable.
Q3. Does it support PID control?
Yes—PID with auto/self-tuning, or ON-OFF.
Q4. What is the temperature resolution?
Fixed 1°C.
Q5. What power supply is required?
Universal 90–270V AC/DC.
Q6. Is the Idol Downloader Module (IDM) supported?
Yes—IDM compatible for parameter download/upload.
