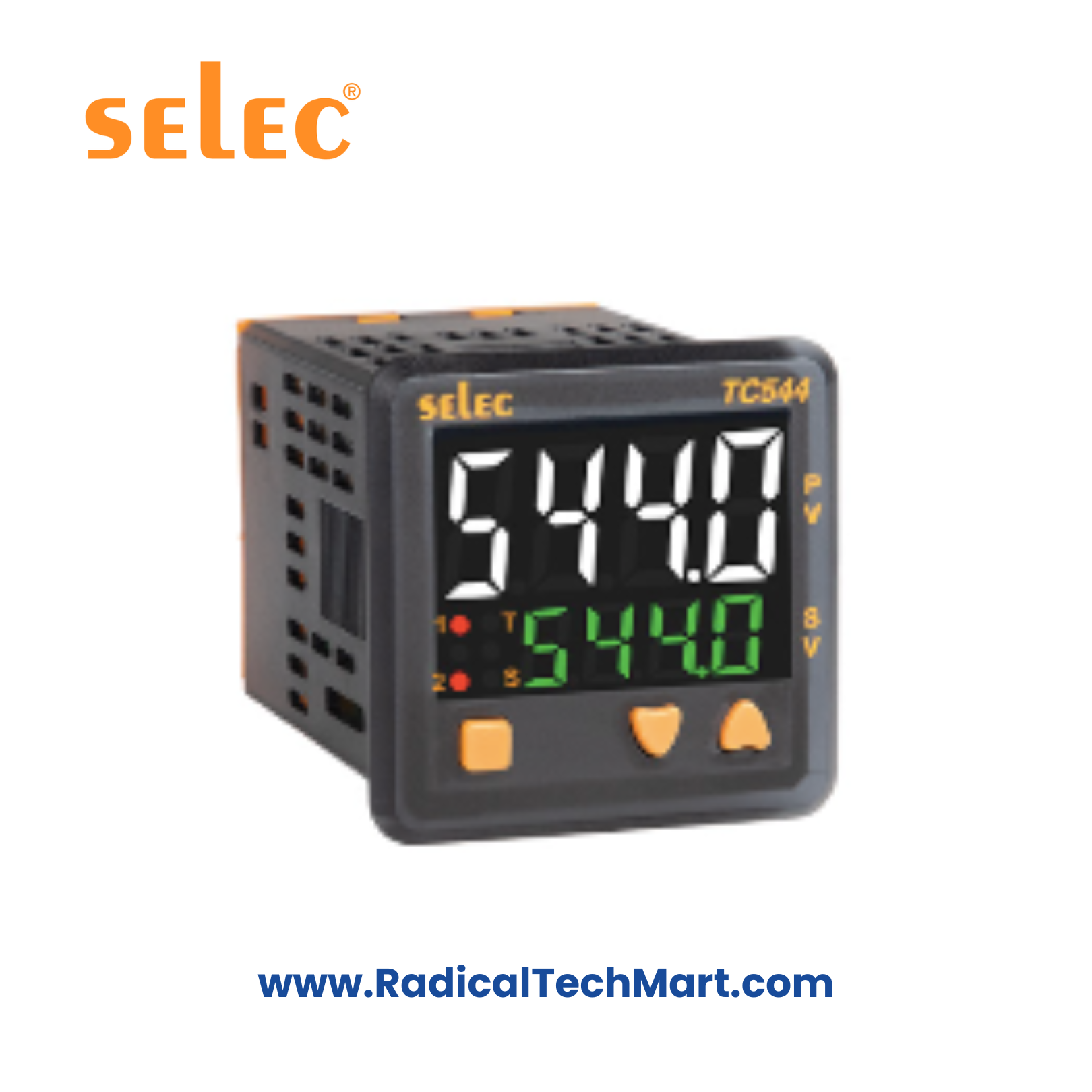

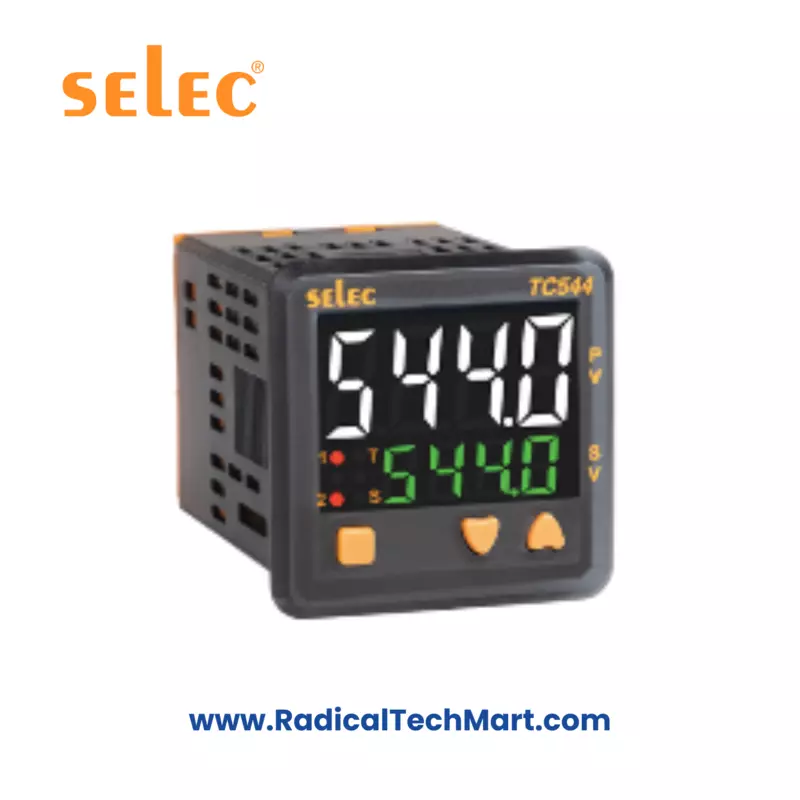

Selec TC544C Dual Display Temperature Controller
Selec TC544C PID Temperature Controller – Dual Display, TC/RTD Input, 48×48 mm
Advanced PID/ON–OFF temperature controller with dual 4+4 digit LED display, TC/RTD input, two set points, relay/SSR user-selectable outputs, heat-cool control, dwell timer indication, and universal 85–270V AC/DC supply. Ideal for heaters, ovens, furnaces & process control.
Customize
Share :
The Selec TC544C is a dual-display temperature controller with advanced PID/ON–OFF control, two independent set points, configurable relay/SSR output, and support for thermocouple and RTD sensors. With a universal 85–270V AC/DC supply, fast sampling, and heat/cool control, it is ideal for industrial heating, cooling, and process automation applications.
Key Features
4+4-digit dual LED display (Upper: 15.3 mm, Lower: 8 mm height)
Accepts TC (J, K, T, R, S) and RTD PT100 inputs
PID control with auto & self-tuning, or ON–OFF mode
Two setpoints (SP1 & SP2)
User-selectable output: Relay (SPST, 5A) or SSR (12V DC, 30 mA)
Auxiliary output: Relay or SSR (model-dependent)
Heat–Cool control action with programmable deadband
Deviation or Absolute mode selection
FT (input filter): 0.2 to 10 sec
Cycle time: 0.1 to 99.9 sec
Manual reset: –19.9 to +19.9°C/°F
Resolution: 0.1°C / 1°C (TC/RTD), fixed 1°C for R & S TC
Sampling time: 250 ms
Universal supply: 85–270V AC/DC
EMI/EMC compliant to IEC 61326-1 standards
Technical Specifications
Display Specifications
| Parameter | Value |
|---|---|
| Display Type | Dual 4+4-digit 7-segment LED |
| Upper Display Height | 15.3 mm |
| Lower Display Height | 8 mm |
| Indication LEDs | Output 1 (ON), Output 2 (ON), T: Auto Tune, S: Dwell Timer |
| Sampling Time | 250 ms |
Input Specifications
| Parameter | Value |
|---|---|
| Sensor Inputs | TC: J, K, T, R, S / RTD PT100 |
| Resolution | 0.1°C / 1°C (TC/RTD), fixed 1°C for R & S |
| Input Filter (FTC) | 0.2–10.0 sec |
| Accuracy | |
| • J, K, T: ±1°C or 0.25% FS | |
| • R, S: ±2°C or 0.5% FS (20 min warm-up) | |
| • RTD: ±1°C or 0.1% FS | |
| Temperature Unit | °C / °F selectable |
Control Output Specifications
| Output | Specification |
|---|---|
| Relay Output | SPST, 5A at 250VAC / 30VDC |
| SSR Drive | 12V DC, 30 mA |
(Outputs are field selectable.)
Functional Specifications
| Function | Range |
|---|---|
| Control Type | PID (auto/self-tuning) / ON–OFF |
| Proportional Band (P) | 1.0–400.0 |
| Proportional Band – Cool | 0.0–400.0 |
| Integral Time (I) | 0–9999 sec |
| Derivative Time (D) | 0–9999 sec |
| Cycle Time (Heat/Cool) | 0.1–99.9 sec |
| Hysteresis | 0.1–99.9°C |
| Dead Band | Programmable between SP Low & SP High |
| Manual Reset | –19.9 to +19.9 |
| Modes | Deviation / Absolute |
| Set Points | Two (SP1 & SP2) |
Auxiliary Supply & Power
| Parameter | Value |
|---|---|
| Supply Voltage | 85–270V AC/DC |
| Power Consumption | 6 VA max |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temp | 0–50°C |
| Storage Temp | –20–75°C |
| Humidity | 95% RH (non-condensing) |
| EMI/EMC Compliance | IEC 61326-1, CISPR-11, IEC 61000-4 series (page 2) |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Panel Size | 48×48 mm |
| Panel Cutout | 46×46 mm |
| Depth | ~76 mm (plus terminals) |
| Weight | 116 g |
Applications
Furnaces, ovens, kilns
Plastic processing (barrel / hopper / mold temp control)
Packaging machinery
Industrial heaters & dryers
Metal treatment
HVAC process temperature regulation
Food & beverage processing
What’s in the Box?
Selec TC544C Temperature Controller
Mounting clamps
Instruction manual
Warranty card
FAQs
Q1. Does TC544C support both thermocouples and RTD sensors?
Yes—supports J, K, T, R, S TC, and PT100 RTD.
Q2. Are the outputs user-selectable?
Yes—Output 1 can be Relay or SSR.
Q3. Does the controller support heat-cool operation?
Yes—full heat-cool PID with separate P-cool and cycle time.
Q4. What is the display advantage?
Dual display allows PV (Process Value) and SV (Set Value) to be shown simultaneously.
Q5. Is EMC compliance provided?
Yes—tested against IEC 61326-1, CISPR-11, and IEC 61000-4-2/3/4/5/6/11.
