Selec XC10D 6 Digit LED Count Totaliser

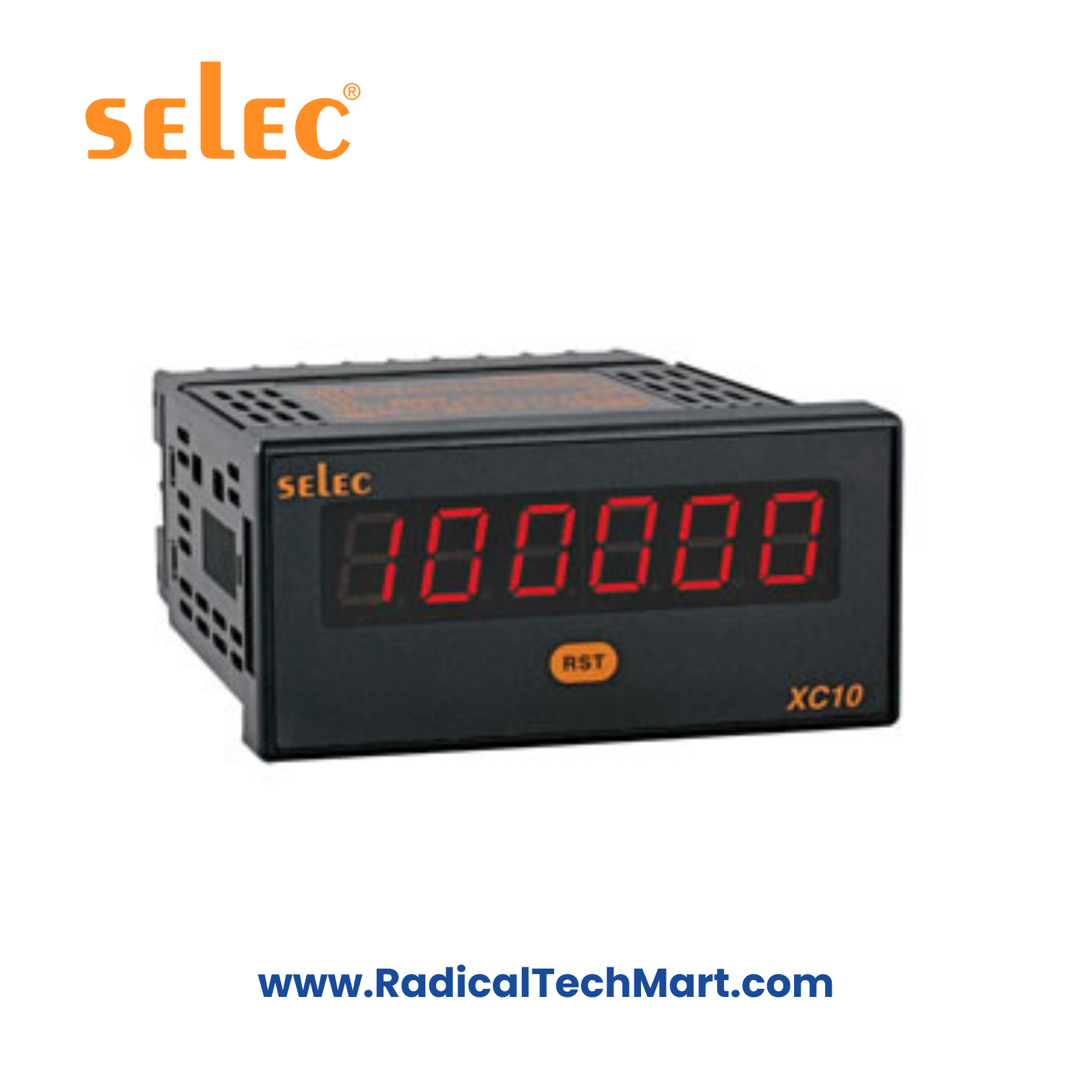

Selec XC10D Count Totaliser – 6-Digit LED Counter, 48×96 mm, Universal Supply
Industrial 6-digit LED pulse counter with NPN/PNP input, 3 selectable speeds (3 Hz, 30 Hz, 1 kHz), 12V sensor supply, memory retention, and wide 90–270V AC/DC power range. Ideal for proximity, encoder, and contact-based counting.
Customize
Share :
The Selec XC10D is a heavy-duty 6-digit count totalizer designed for industrial automation panels. It accepts NPN/PNP sensor inputs, proximity & encoder pulses, and offers three selectable speed modes up to 1 kHz. With an inbuilt 12V sensor supply, universal 90–270V AC/DC operation, and both front & remote reset, it is ideal for accurate counting in production lines and machine control.
Key Features
6-digit, 7-segment bright LED display
Compact 48×96 mm panel size
Accepts NPN & PNP signals
Supports voltage pulses (3–30V DC) from proximity switches, solid-state devices, and encoders
Three input speeds: 3 Hz, 30 Hz, 1 kHz
Inbuilt 12V DC / 30 mA sensor supply
Universal supply 90–270V AC/DC with ±15% to +10% tolerance
Memory retention on power loss
Front & remote reset options
Up-counting mode
IP20 class, 0–50°C operating range
Technical Specifications
Display Specifications
| Parameter | Value |
|---|---|
| Display | 6-digit, 7-segment LED totaliser |
| Range | 0–999,999 counts |
Input Specifications
| Parameter | Value |
|---|---|
| Sensor Type | NPN / PNP |
| Input Type | Voltage pulse (3–30V DC) from proximity, solid-state, encoder contacts |
| Input Speeds | 3 Hz / 30 Hz / 1 kHz |
Output Specifications
| Parameter | Value |
|---|---|
| Sensor Supply | 12V DC, 30 mA (inbuilt) |
Functional Specifications
| Parameter | Value |
|---|---|
| Counting Direction | Up |
| Memory Retention | Yes |
| Reset Type | Front, Remote |
Auxiliary Supply Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 90–270V AC/DC (50/60 Hz) |
| Power Consumption | 5 VA max |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | 0 to 50°C |
| Storage Temperature | –5 to 50°C |
| Humidity | 95% RH non-condensing |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Panel Cutout | 92 × 46 mm (from dimensional drawing on page 2) |
| Dimensions | 97.5 × 50 × 88 mm |
| Mounting | Panel mount |
| Weight | 60 g |
Applications
Production count monitoring
Conveyor part counting
Machine cycle counting
Encoder pulse counting
Proximity sensor-based counting
Batch counting in packaging systems
Industrial automation panels
What’s in the Box?
XC10D Count Totaliser
Mounting clamps
User manual
Warranty card
FAQs
Q1. Can XC10D work with both NPN and PNP sensors?
Yes, sensor selection terminals allow choosing between NPN and PNP.
Q2. What is the maximum counting speed?
Up to 1 kHz.
Q3. Does it include a sensor power output?
Yes—12V DC @ 30 mA is provided.
Q4. Can it be reset remotely?
Yes, via the RESET terminal.
Q5. Does it retain count after power loss?
Yes, memory retention is available.
Q6. What is the supply voltage range?
A wide 90–270V AC/DC range for universal operation.
