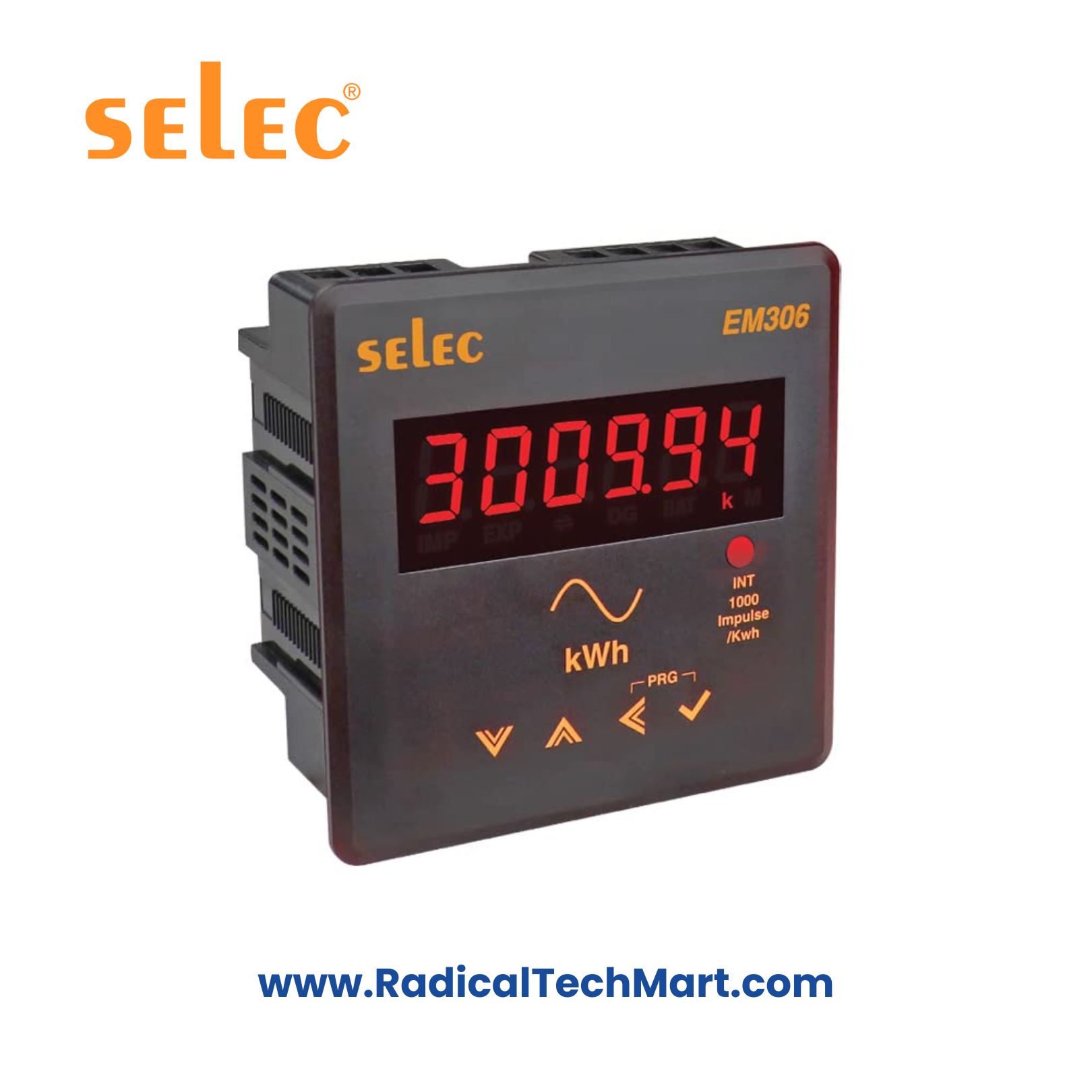

Selec EM306 LED Energy Meter

Product Summary:
The Selec EM306 is a high-precision energy meter with a 6-digit LED display, compatible with various phase systems. Available in models with pulse output and RS485 MODBUS RTU communication for real-time energy monitoring.

Key Features:

• Compatible with 1Ø-2W, 2Ø-3W, 3Ø-3W, and 3Ø-4W systems

• 6-digit 7-segment LED display

• Accuracy class 1 for energy measurement

• Dual source input detection

• Pulse output for energy counting

• RS485 & MODBUS RTU communication (EM306-C-D)

• Programmable CT and PT ratios

• Panel mount with 96x96mm dimensions

• Low power consumption (Max 8VA)

Applications:

• Industrial power monitoring systems

• Commercial energy auditing

• Sub-metering in residential and office complexes

• Generator and transformer energy management

• Building automation and smart metering systems

Product Benefits:

• Versatile multi-phase compatibility

• Easy-to-read LED display for quick insights

• Remote monitoring with RS485 communication

• Space-saving panel-mounted design

• Accurate tracking of energy for cost optimization

FAQs:

Q1: What phase systems does the Selec EM306 support?
A1: It supports 1Ø-2W, 2Ø-3W, 3Ø-3W, and 3Ø-4W systems, making it versatile for multiple installations.

Q2: Does the EM306 support remote communication?
A2: Yes, the EM306-C-D variant supports RS485 and MODBUS RTU protocols for remote energy data monitoring.

Q3: Can CT and PT values be configured?
A3: Yes, both CT (1/5A to 10kA) and PT (100V to 500kV) values are fully programmable.
